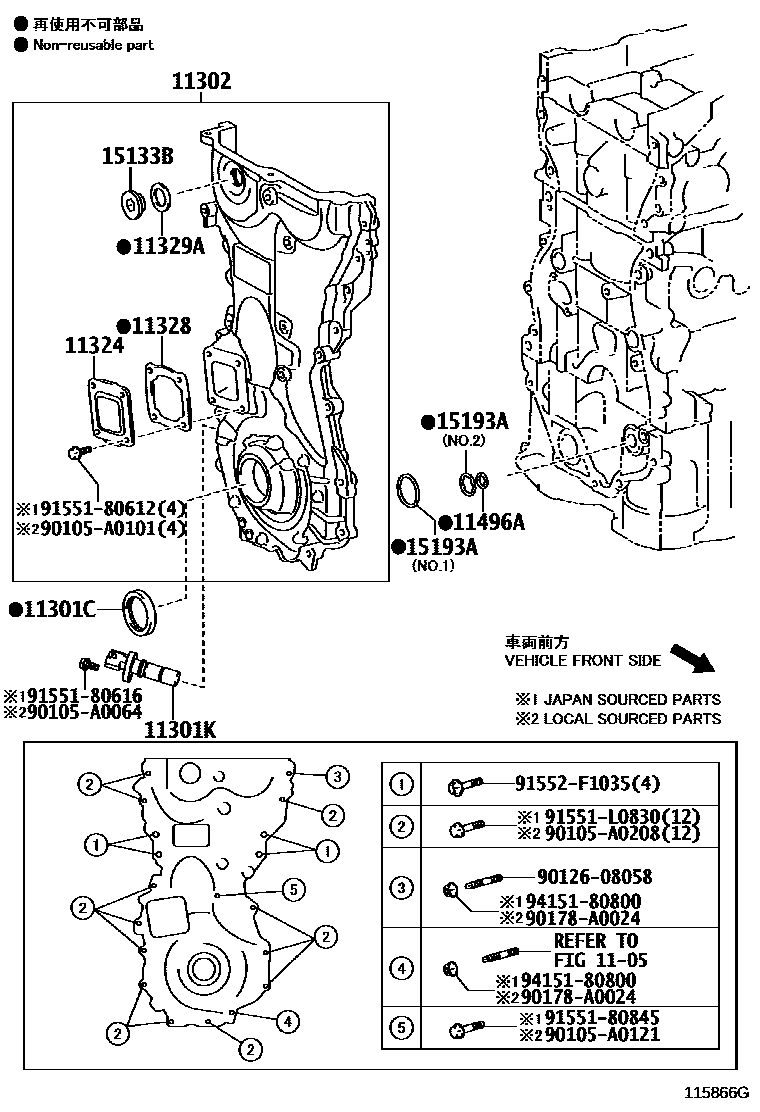

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
(J)
(L)
*212
11301KSENSOR, CRANK POSITION
(J),*212
*107
(J)
(L)
(L),*212
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
(L)
(L),*212
(J)
*107,(J),*212
*107
(J)
11324PLATE, TIMING CHAIN COVER
(L)
(L)
(L),*212
(J)
*107
(J),*212
(J)
11328GASKET, TIMING GEAR OR CHAIN COVER
(L)
(L),*212
(L)
(J)
(J),*212
*107
(J)
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
11496AGASKET, OIL HOLE COVER
*107
*212
15133BPLUG, OIL PUMP RELIEF VALVE
*107
*212
15193AGASKET, OIL PUMP
NO.1
*107,NO.1
*212,NO.1
*212,NO.2
NO.2
*107,NO.2
90105A0064
main90105-A0064
90105A0101
main90105-A0101
90105A0121
main90105-A0121
90105A0208
main90105-A0208
9012608058
90178A0024
main90178-A0024
9155180612
9155180616
9155180845
91551L0830
91552F1035
9415180800
22 parts on this diagram · 2 diagrams in section
