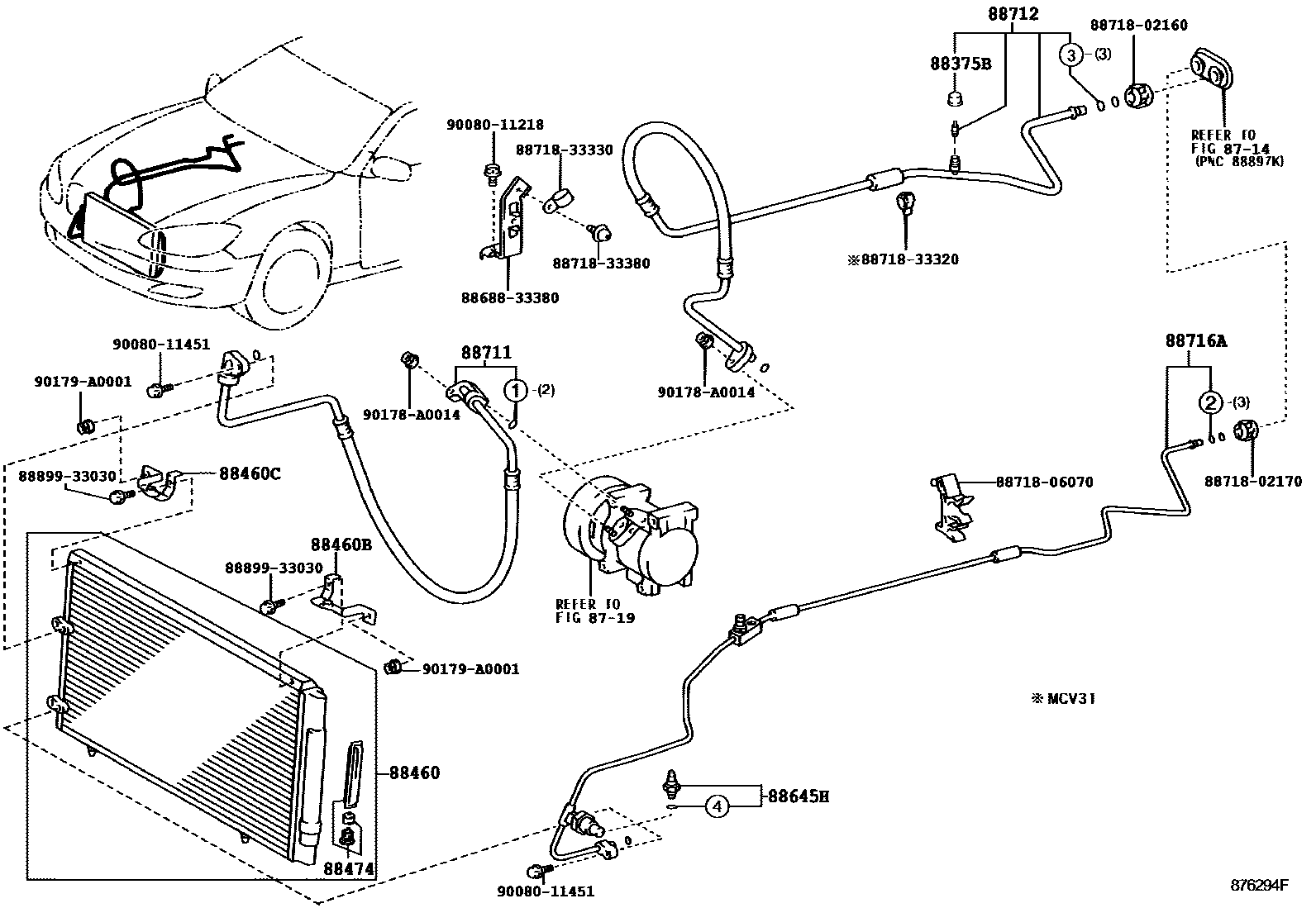

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0003 1O-RING 0004 1O-RING

8714

8719

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iACV30,MCV31200307-200808

88460CONDENSER ASSY, COOLER

main88460-06140iACV30..4FC200307-200808

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-06120iACV30..4FC200307-200808

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-06140iACV30..4FC200307-200808

88474DRYER, COOLER

main88474-47010iACV30..4FC200307-200808

88645HSWITCH, PRESSURE NO.1

main88645-08010iACV30..4FC200307-200808

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06110iMCV31..CP200307-200808

main88711-06120iACV30..4FC200307-200808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06050iMCV31..CVT200307-200808

main88712-06060iACV30..5F,5FC200307-200808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-06201iACV30..4FC200307-200808

8868833380BRACKET, COOLER DIAPHRAGM

main88688-33380

8871802160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02160

8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02170

8871806070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06070

8871833320PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33320

8871833330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33330

8871833380PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33380

8889933030COVER, EVAPORATOR

main88899-33030

9008011218

main90080-11218

9008011451

main90080-11451

90178A0014

main90178-A0014

90179A0001

main90179-A0001

23 parts on this diagram · 3 diagrams in section
