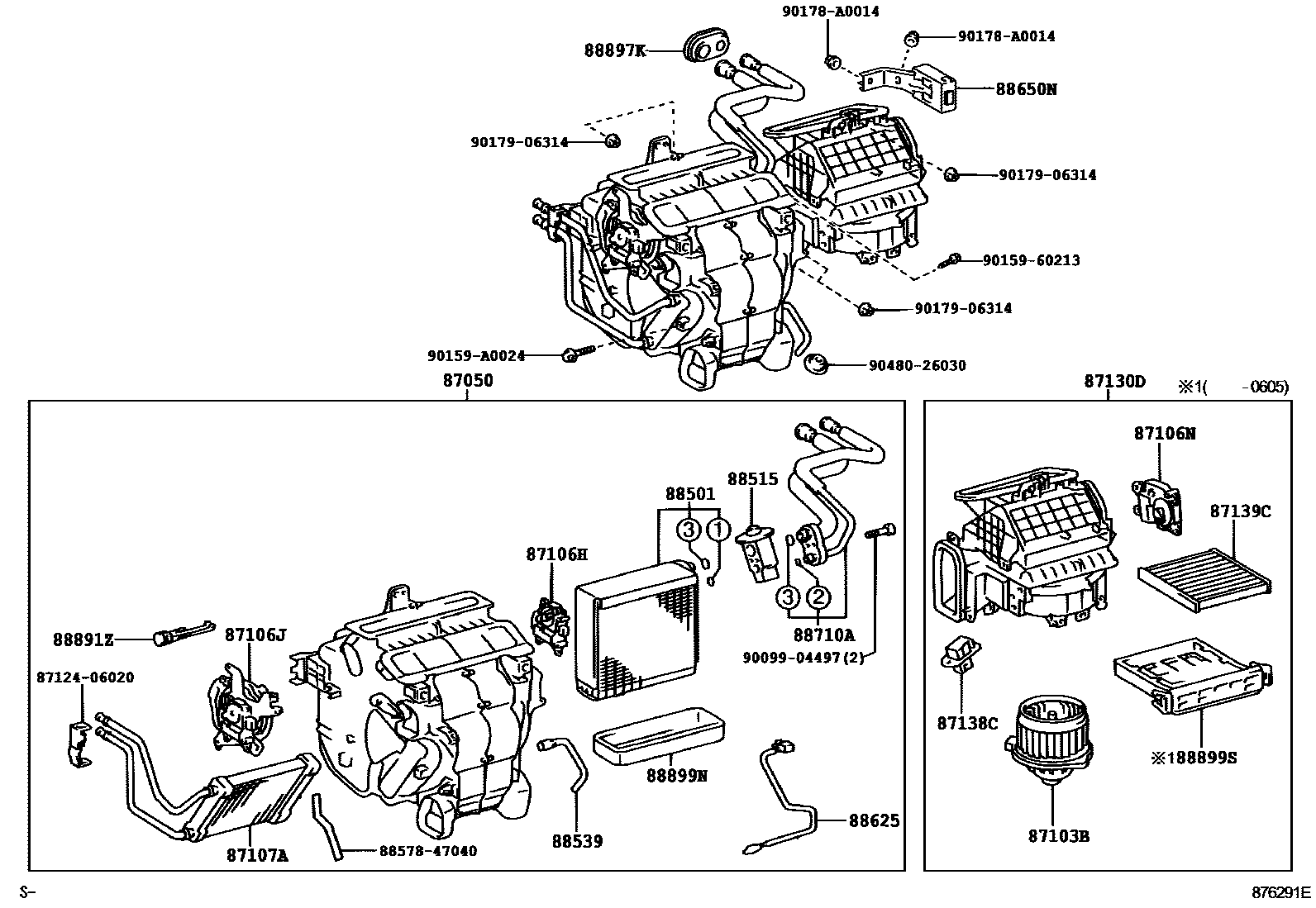

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1O-RING 0004 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06252iACV30..4FC..SE200307-200808

main87050-06380iMCV31..CVT..SLE200307-200808

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06030iACV30,MCV31..SLE200307-200411

sub87103-06031

main87103-06031iMCV31..CVT..SE200411-200808

main87103-06041iACV30..SLE200402-200808

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-07081iACV30..4FC200307-200808

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-06130iACV30,MCV31..CP..SLE200307-200808

main87106-06140iACV30..5FC..SE200307-200808

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-06110iACV30..SLE200307-200808

main87106-06120iACV30,MCV31..(5F,5FC)..SE200307-200808

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06040iACV30,MCV31200307-200808

87130DBLOWER ASSY

main87130-06080iACV30,MCV31..SLE200307-200402

main87130-06090iACV30,MCV31..SE200307-200407

main87130-06230iACV30,MCV31..CP..SE200407-200808

main87130-06240iACV30,MCV31..SLE200402-200407

main87130-06250iACV30,MCV31..CP..SLE200407-200808

87138CRESISTOR, BLOWER

main87138-41020iACV30..4FC..SE200307-200808

87139CFILTER, CLEAN AIR

main87139-06030iACV30,MCV31200312-200407

main87139-06040iACV30,MCV31200411-200808

main87139-28010iACV30,MCV31..SE200407-200411

main87139-32010iACV30,MCV31200307-200312

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-07020iACV30..4FC200307-200808

88515VALVE, COOLER EXPANSION

main88515-07020iACV30,MCV31..SE200307-200407

sub88515-07040

main88515-07040iACV30,MCV31..(5F,5FC)..SE200312-200808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-06030iACV30..4FC200307-200808

88625THERMISTOR, COOLER, NO.1

main88625-33170iMCV31..SLE;ACV30..4FC..SLE200307-200808

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-06290iMCV31..CP..SE200605-200808

main88650-06300iACV30..SE200605-200808

main88650-AA030iACV30..(5F,5FC)..SE200307-200605

88710ATUBE ASSY, AIR CONDITIONER

main88710-07060iACV30..4FC200307-200808

88891ZBRACKET, COOLER THERMISTOR

main88891-50060iACV30..4FC..SE200307-200808

88897KGROMMET, (FOR COOLER PIPE)

main88897-06010iACV30,MCV31..5F,5FC200307-200808

88899NPLATE, COVER

main88899-41020iACV30,MCV31..CP200307-200808

88899SFRAME, FRONT COOLER

main88508-08020iMCV31..CVT..SLE200605-200808

main88899-06020iACV30,MCV31200312-200605

main88899-41010iACV30,MCV31200307-200312

8712406020CLAMP, HEATER

main87124-06020

8857847040PAKING, COOLER AIR DUCT

main88578-47040

9009904497

main90099-04497

9015960213

main90159-60213

90159A0024

main90159-A0024

90178A0014

main90178-A0014

9017906314

main90179-06314

9048026030

main90480-26030

27 parts on this diagram · 4 diagrams in section
