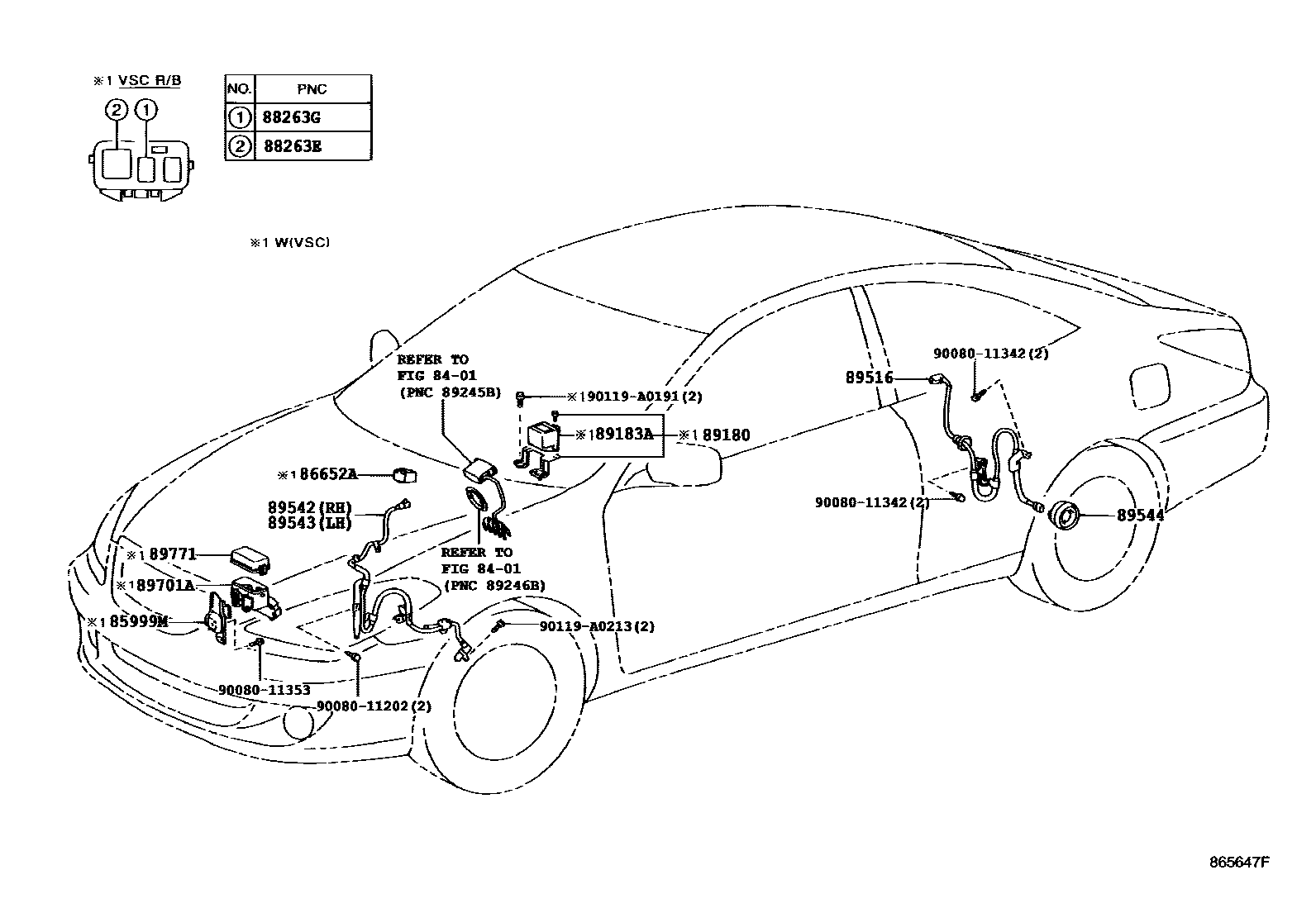

ABS & VSC

8401

85999MBRACKET, RELAY

86652ABUZZER ASSY, SKID CONTROL

88263ERELAY, SKID CONTROL NO.2

88263GRELAY, SKID CONTROL

89180SENSOR ASSY, YAWRATE

main89180-33030

89183ASENSOR, YAWRATE

89516WIRE, SKID CONTROL SENSOR

main89516-33010iACV30,MCV31..CP200307-200808

RH

main89516-33020iMCV31..CVT200307-200808

LH

89542SENSOR, SPEED, FRONT RH

main89542-06010iMCV31..CVT200307-200808

89543SENSOR, SPEED, FRONT LH

main89543-06010iACV30,MCV31..5F,5FC200307-200808

89544SENSOR, SKID CONTROL

main89544-06010iMCV31..CVT200605-200808

KOYO,NSK

sub89544-48010

main89544-06010iACV30..4FC200307-200605

KOYO

sub89544-48010

main89544-06020iACV30..4FC200307-200605

NSK

sub89544-06010

89701ABLOCK SUB-ASSY, ABS RELAY

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020

9008011202

main90080-11202

9008011342

main90080-11342

9008011353

main90080-11353

90119A0191

main90119-A0191

90119A0213

main90119-A0213

18 parts on this diagram · 1 diagram in section
