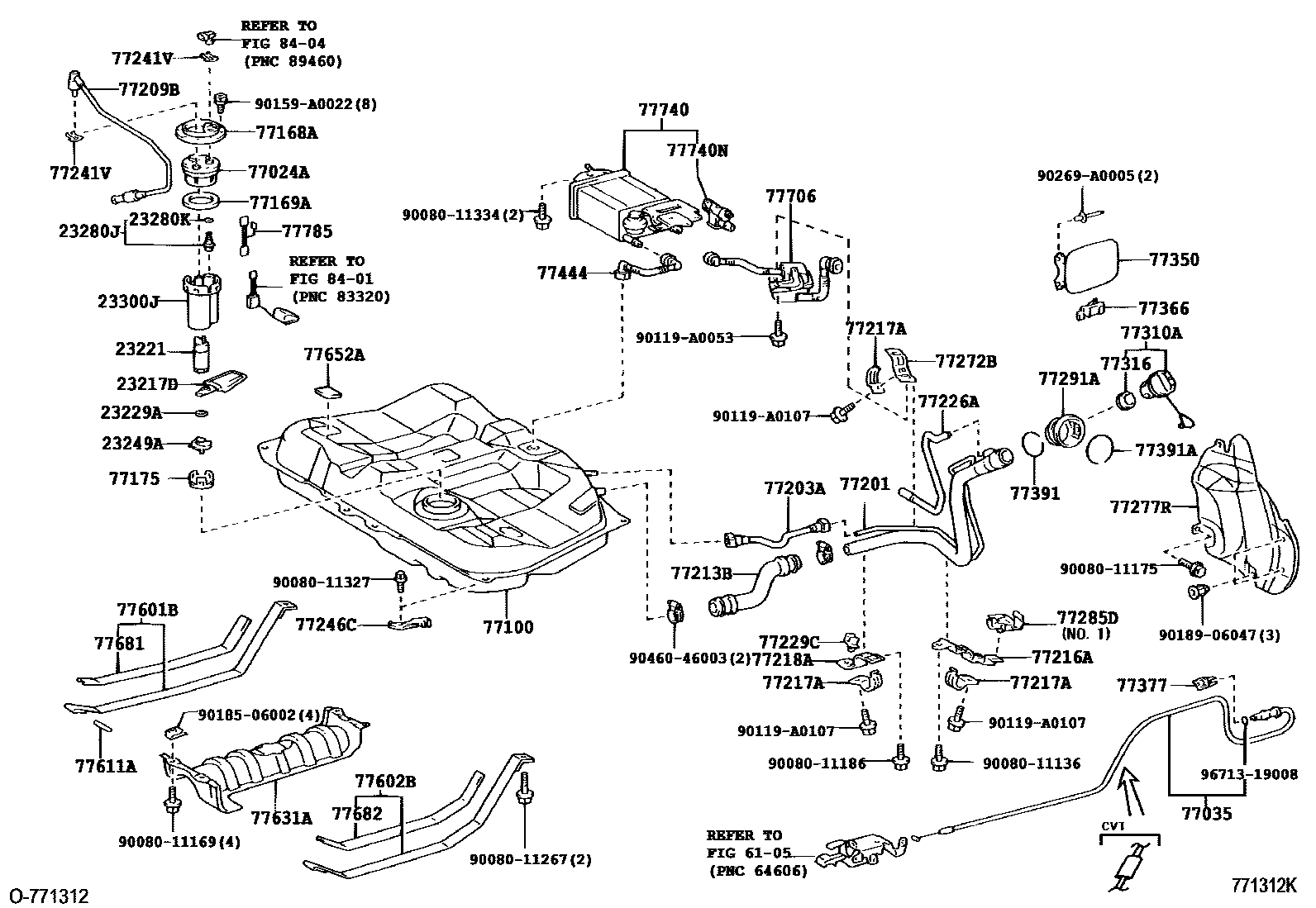

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
23300JFILTER ASSY, FUEL
6105
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-06041
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
sub77229-33060
77246CSUPPORT, FUEL MAIN TUBE
(L)
(J)
77272BSUPPORT, BREATHER TUBE, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
NO.2
NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
(L)
(J)
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
(L)
(J)
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
(L)
(J)
77611APIN (FOR FUEL TANK BAND)
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77740CANISTER ASSY, CHARCOAL
77740NVALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER)
8401
8404
9008011136
main90080-11136
9008011169
main90080-11169
9008011175
main90080-11175
9008011186
main90080-11186
9008011267
main90080-11267
9008011327
main90080-11327
9008011334
main90080-11334
90119A0053
main90119-A0053
90119A0107
main90119-A0107
90159A0022
main90159-A0022
9018506002
main90185-06002
9018906047
main90189-06047
90269A0005
main90269-A0005
9046046003
main90460-46003
9671319008
main96713-19008
