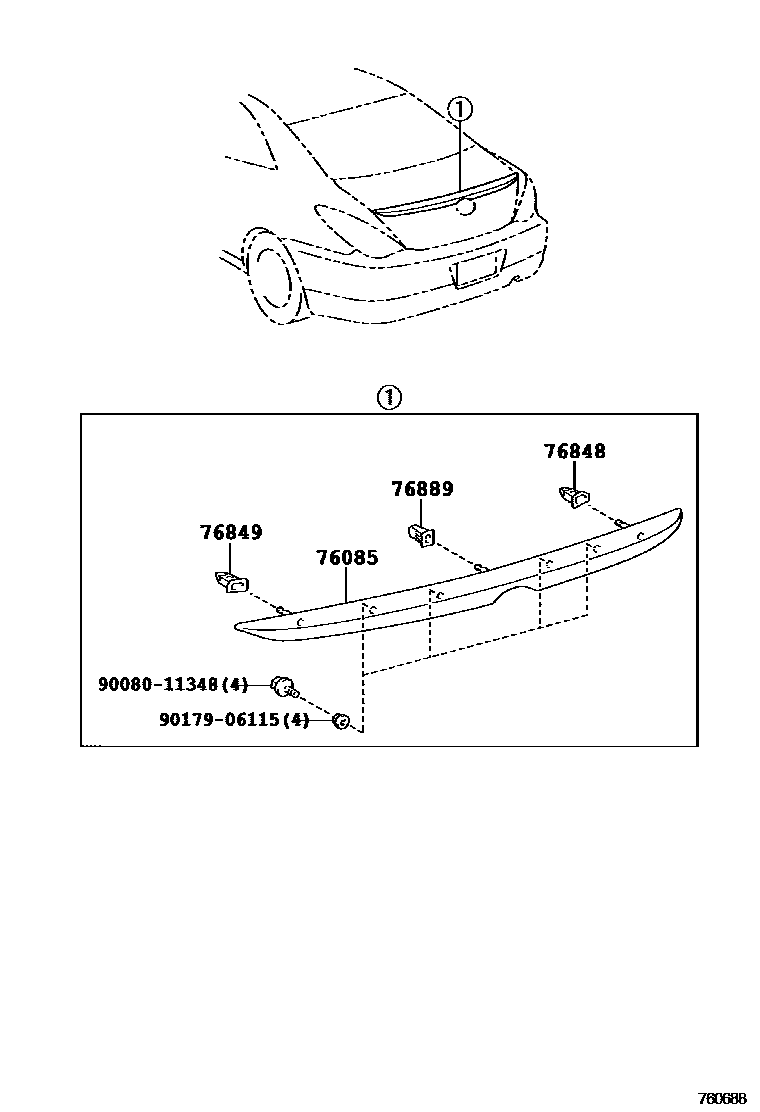

MUDGUARD & SPOILER

0001 1 0002 1SPORT PACKAGE

76085SPOILER SUB-ASSY, REAR

main76871-AA901iMCV31..CVT..SLE200402-200808

PAINT REQ.

76848PROTECTOR, REAR SPOILER, NO.12 RH

main76848-AA010iMCV31..CVT..SLE200402-200808

76849PROTECTOR, REAR SPOILER, NO.12 LH

main76849-AA010iMCV31..CVT..SLE200402-200808

76889CLIP, REAR SPOILER, NO.2

main76889-44020iMCV31..CVT..SLE¥160200402-200808

9008011348

main90080-11348

9017906115

main90179-06115¥120

6 parts on this diagram · 2 diagrams in section
