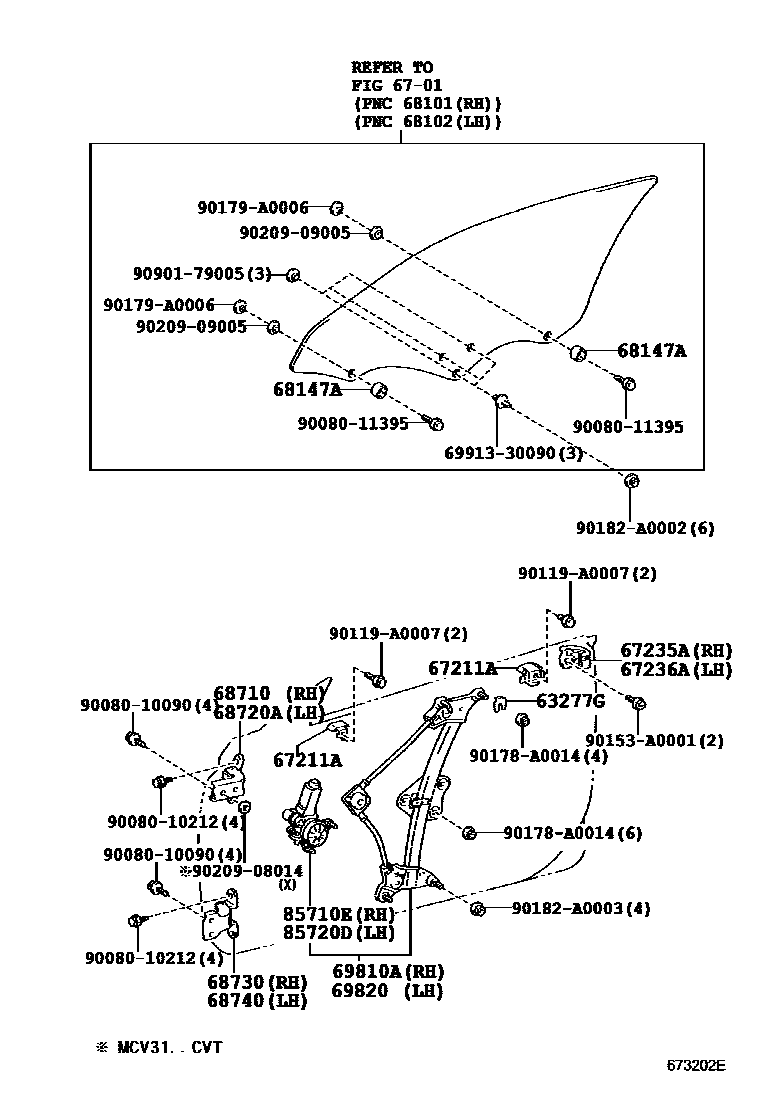

FRONT DOOR WINDOW REGULATOR & HINGE

63277GSHIM, WINDOW REGULATOR

main63277-20030iACV30,MCV31..CP200307-200808

T=1.0

main63277-20050iACV30,MCV31..CP200307-200808

T=2.0

6701

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-30070iACV30,MCV31200307-200808

67235ASTABILIZER, DOOR GLASS FEMALE, RH

main67235-12030iACV30,MCV31..CP200307-200808

67236ASTABILIZER, DOOR GLASS FEMALE, LH

main67236-12020iACV30..4FC200307-200808

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-20040iACV30..4FC200307-200808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-AA020iACV30..4FC200307-200808

68720AHINGE ASSY, FRONT DOOR, LH

main68720-AA020iACV30,MCV31..CP200307-200808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iACV30,MCV31..CP200307-200808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iMCV31..CVT200307-200808

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-06090iMCV31..CVT200402-200605

main69810-AA060iACV30..4FC200307-200808

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-06080iMCV31..CVT200402-200605

main69820-AA080iACV30..4FC200307-200808

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AA060iACV30..4FC200307-200808

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06050iMCV31..CVT200402-200605

main85720-AA080iACV30..4FC200307-200808

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9008010090

main90080-10090

9008010212

main90080-10212

9008011395

main90080-11395

90119A0007

main90119-A0007

90153A0001

main90153-A0001

90178A0014

main90178-A0014

90179A0006

main90179-A0006

90182A0002

main90182-A0002

90182A0003

main90182-A0003

9020908014

main90209-08014

9020909005

main90209-09005

9090179005

main90901-79005

27 parts on this diagram · 1 diagram in section
