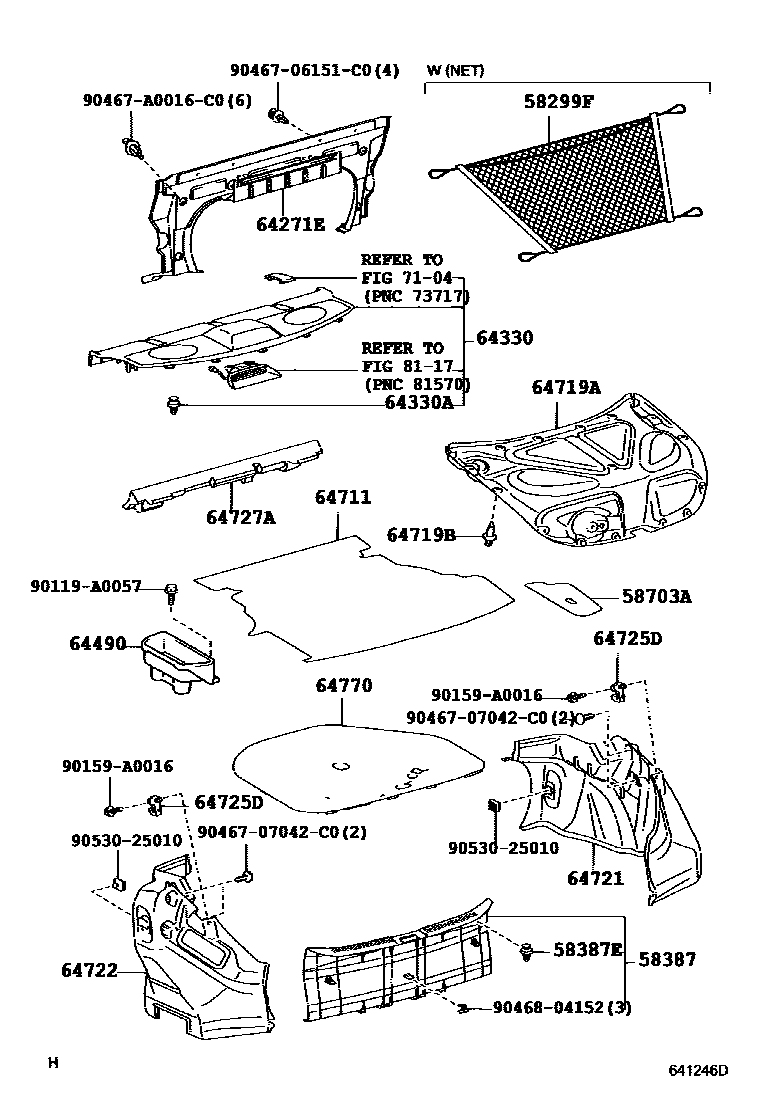

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58299FNET, BAGGAGE HOLDER

main58299-AA020-C0iACV30..SLE200307-200808

BLACK,TRIM0#,1#

58387PLATE, REAR FLOOR FINISH

main58387-AA030-C0iMCV31..CVT..SLE200307-200808

BLACK,TRIM0#,10,11

main58387-AA030-C0iACV30..4FC..SE200307-200808

BLACK,TRIM0#,1#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-A0006iMCV31..CVT200307-200808

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06040iACV30,MCV31200307-200808

64271EPANEL, ROOM PARTITION

main64271-AA040-C0iACV30..4FC..SE200307-200808

BLACK,TRIM0#,10,11

main64271-AA040-C0iACV30..SLE200307-200808

BLACK,TRIM0#,1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AA150-A1iACV30,MCV31..CP200307-200808

IVORY,TRIM0#

main64330-AA150-B1iACV30,MCV31..CP..SE200307-200808

DARK STONE,TRIM10

main64330-AA150-B1iACV30..SLE200307-200808

DARK STONE,TRIM1#

main64330-AA150-B2iACV30,MCV31..CP..(5F,5FC)..SE200307-200808

DK.GRAY,TRIM11

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-A0006iACV30..4FC200307-200808

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-AA010iACV30..4FC200307-200808

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06050-C0iMCV31..CVT..SE200402-200605

BLACK,TRIM0#,1#

main64711-06050-C0iMCV31..CVT..SLE200402-200605

BLACK,TRIM0#,10,11

main64711-AA030-C0iACV30,MCV31..CP..SE200307-200808

BLACK,TRIM0#,1#

main64711-AA030-C0iACV30..SLE200307-200808

BLACK,TRIM0#,10,11

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06050-C0iMCV31..CVT..SE200402-200605

BLACK,TRIM0#,10,11

main64719-06050-C0iMCV31..CVT..SLE200402-200605

BLACK,TRIM0#,1#

main64719-AA070-C0iACV30..4FC..SE200307-200808

BLACK,TRIM0#,10,11

main64719-AA070-C0iACV30..SLE200307-200808

BLACK,TRIM0#,1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07138iACV30,MCV31200307-200309

main90467-07201iACV30..4FC200309-200808

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06050-C0iMCV31..CVT..SLE200402-200605

BLACK,TRIM0#,1#

main64721-06050-C0iMCV31..CVT..SE200402-200605

BLACK,TRIM0#,10,11

main64721-AA040-C0iACV30,MCV31..CP..SE200307-200808

BLACK,TRIM0#,1#

main64721-AA040-C0iACV30,MCV31..CP..SLE200307-200808

BLACK,TRIM0#,10,11

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06050-C0iMCV31..CVT..SLE200402-200605

BLACK,TRIM0#,10,11

main64722-06050-C0iMCV31..CVT..SE200402-200605

BLACK,TRIM0#,1#

main64722-AA050-C0iACV30,MCV31..CP..SE200307-200808

BLACK,TRIM0#,1#

main64722-AA050-C0iACV30,MCV31..CP..SLE200307-200808

BLACK,TRIM0#,10,11

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-AC010-C0iACV30,MCV31..CP..SLE200307-200901

BLACK,TRIM0#,1#

main64725-AC010-C0iACV30,MCV31..CP..SE200307-200901

BLACK,TRIM0#,10,11

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-AA011iACV30..4FC200307-200808

64770COVER ASSY, SPARE WHEEL

main64770-07010iACV30,MCV31200307-200408

sub64770-07011

main64770-07011iACV30,MCV31200409-200410

sub64770-07012

main64770-07012iACV30,MCV31200410-200504

sub64770-07013

main64770-07013iACV30,MCV31200505-200508

sub64770-07014

main64770-07014iMCV31..CVT200509-200808

7104

8117

90119A0057

main90119-A0057

90159A0016

main90159-A0016

9046706151C0

main90467-06151C0

9046707042C0

main90467-07042C0

90467A0016C0

main90467-A0016C0

9046804152

main90468-04152

9053025010

main90530-25010

25 parts on this diagram · 2 diagrams in section
