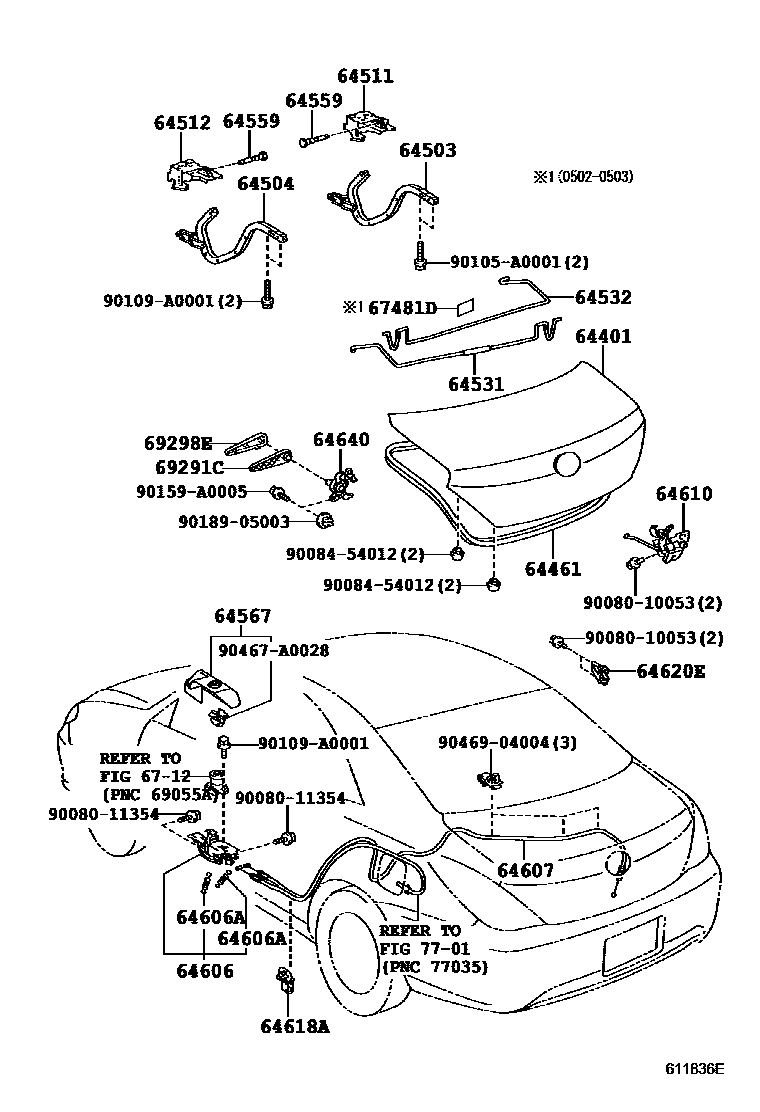

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-AA100iACV30;MCV31..SE;MCV31..CP..SLE200307-200605

sub64401-AA101

main64401-AA110iMCV31..CVT..SLE200402-200605

sub64401-AA111

main64401-AA111iACV30,MCV31200605-200812

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06050iMCV31..CVT200402-200605

main64461-AA040iACV30,MCV31..CP..(5F,5FC)200307-200808

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-AA050iACV30,MCV31..CP200307-200808

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-AA050iACV30,MCV31..CP200307-200808

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-AA030iACV30,MCV31..CP200307-200808

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-AA030iACV30,MCV31..CP200307-200808

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-06060iMCV31..CVT..SLE200402-200605

REAR SPOILER-WITH

main64531-06070iMCV31..CVT..SE200402-200605

main64531-AA080iACV30,MCV31..CP200307-200605

main64531-AA090iACV30,MCV31..CP200605-200808

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-06060iMCV31..CVT..SLE200402-200605

REAR SPOILER-WITH

main64532-06070iMCV31..CVT..SE200402-200605

main64532-AA080iACV30,MCV31..CP200307-200605

main64532-AA090iACV30,MCV31..CP200605-200808

64559PIN, LUGGAGE DOOR HINGE

main64559-AC020iACV30,MCV31..CP..(5F,5FC)200307-200808

64567BEZEL, LUGGAGE DOOR LOCK OPEN

main64657-AA010-A0iACV30..4FC200307-200808

IVORY,TRIM0#

main64657-AA010-B0iACV30,MCV31..(5F,5FC)..SE200307-200808

DK. STONE,TRIM1#

main64657-AA010-B0iACV30..SLE200307-200808

DK. STONE,TRIM10

main64657-AA010-B1iACV30,MCV31..(5F,5FC)..SE200307-200808

DK.GRAY,TRIM11

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-AA030-A0iACV30,MCV31200307-200808

IVORY,TRIM0#

main64606-AA030-B0iACV30,MCV31..SLE200307-200808

DK. STONE,TRIM10

main64606-AA030-B0iACV30,MCV31..SLE200307-200808

DK. STONE,TRIM1#

main64606-AA030-B1iACV30,MCV31..CP..SE200307-200808

DK.GRAY,TRIM11

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iACV30..4FC200307-200808

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-06060iMCV31..CVT200402-200605

main64607-AA050iACV30..4FC200307-200808

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-AA010iACV30,MCV31..5F,5FC200307-200808

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-AA010iACV30..4FC200307-200808

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-AA010iACV30,MCV31..5F,5FC200307-200808

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-AA020iACV30..4FC200307-200808

6712

67481DSEAL, LUGGAGE TORSION BAR

main67481-AA020iACV30,MCV31..CP200502-200503

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-AA020iACV30..4FC200307-200808

69298ECOVER, LUGGAGE COMPONENT DOOR INSIDE HANDLE

main69298-AA020iMCV31..CVT200307-200808

7701

9008010053

main90080-10053

9008011354

main90080-11354

9008454012

main90084-54012

90105A0001

main90105-A0001

90109A0001

main90109-A0001

90159A0005

main90159-A0005

9018905003

main90189-05003

90467A0028

main90467-A0028

9046904004

main90469-04004

31 parts on this diagram · 2 diagrams in section
