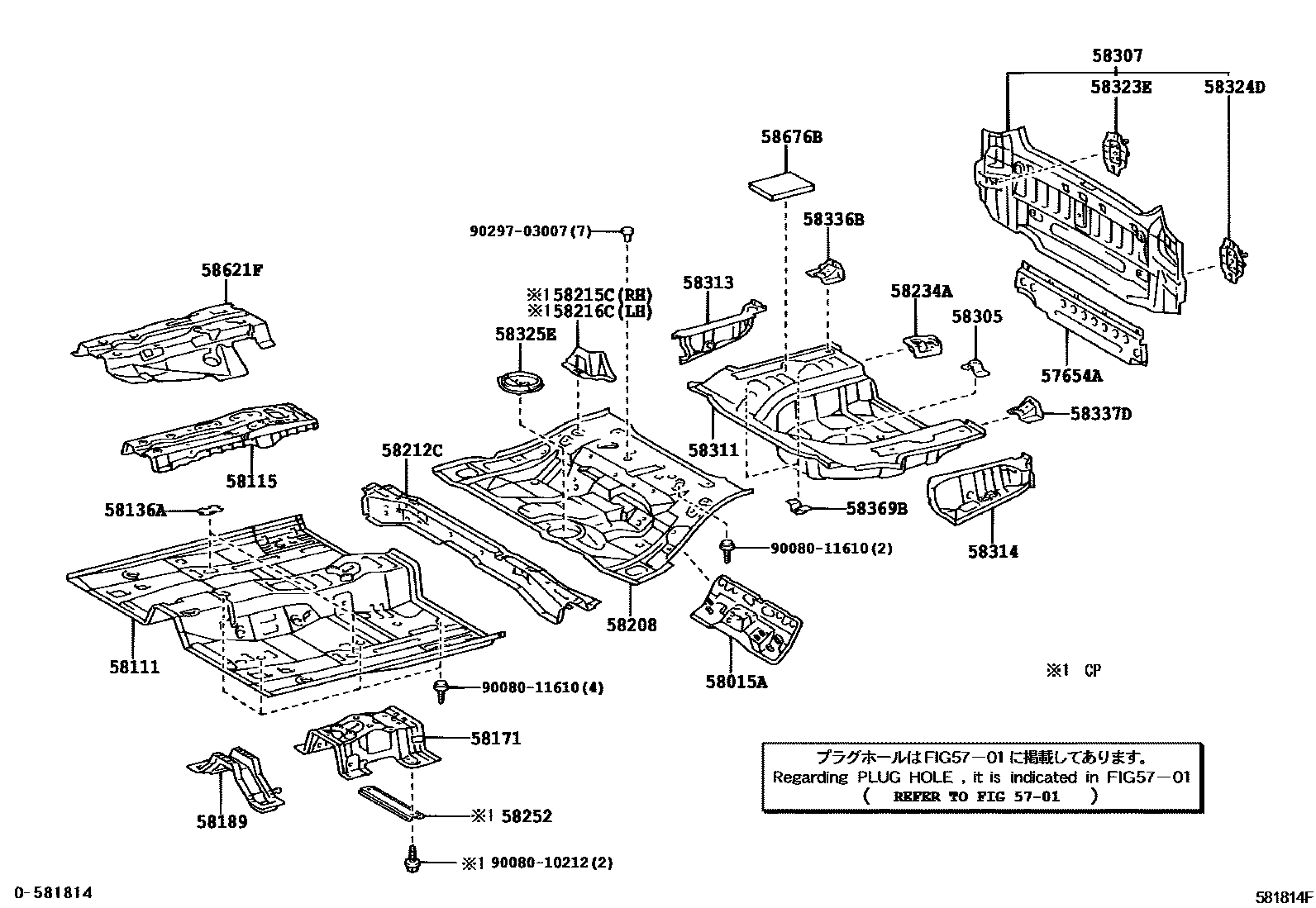

FLOOR PAN & LOWER BACK PANEL
5701
57654AMEMBER, REAR FLOOR CROSS, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58252BRACE, FLOOR PANEL, REAR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58369BBRACKET, FUEL TUBE, NO.3
58621FSILENCER, CENTER CONSOLE, NO.1
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
9008010212
main90080-10212
9008011610
main90080-11610
9029703007
main90297-03007
30 parts on this diagram · 2 diagrams in section
