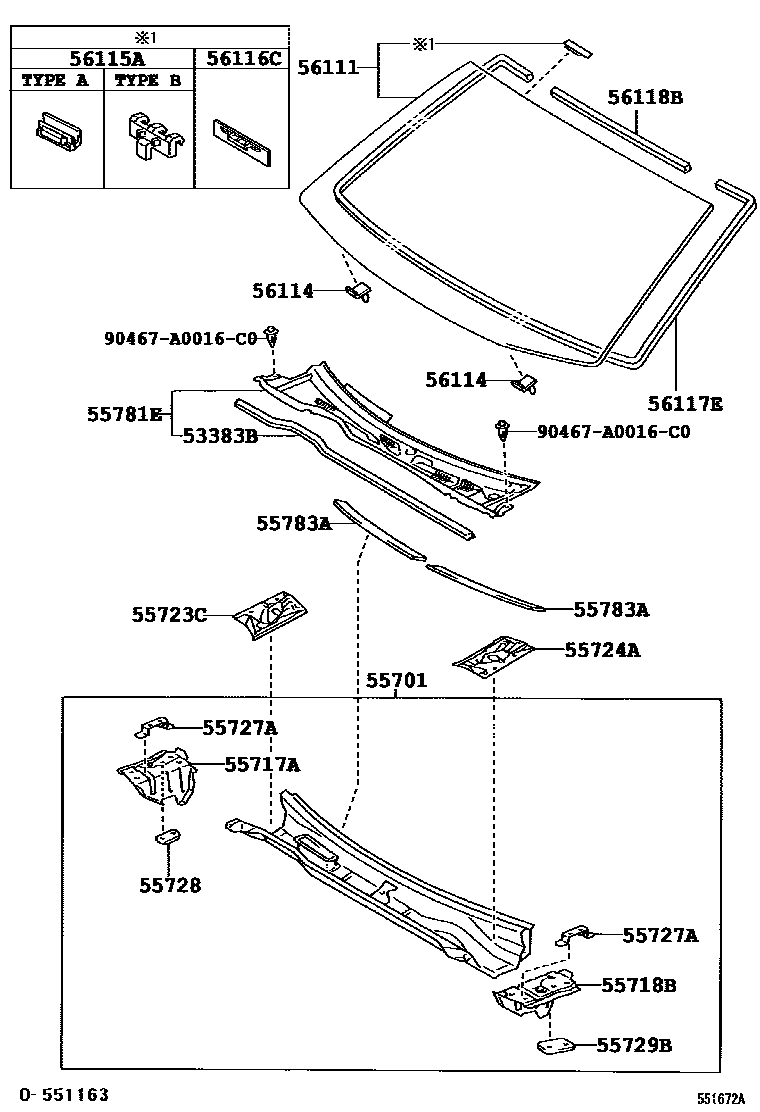

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-06040iACV30,MCV31..5F,5FC200307-200808

55701PANEL SUB-ASSY, COWL

main55700-06190iACV30..4FC200307-200808

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06050iACV30..4FC200307-200808

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06050iACV30..4FC200307-200808

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06020iACV30..4FC200307-200808

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06020iACV30..4FC200307-200808

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-06010iACV30..4FC200307-200808

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-06010iACV30..4FC200307-200808

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-06010iACV30..4FC200307-200808

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06050iMCV31..CVT200307-200808

55783APAD, COWL TOP SILENCER

main55783-06010iACV30..4FC200307-200808

56111GLASS, WINDSHIELD

main56101-AA050iACV30,MCV31..SE200307-200507

*LAM,T=4.7,GREEN

sub56101-AA051

main56101-AA051iACV30,MCV31200508-200808

*LAM,T=4.7,GREEN

main56101-AA060iACV30,MCV31..(4FC,5FC)..SE200307-200508

*LAM,T=4.7,GREEN,CANADA SPEC

main56101-AA060iACV30,MCV31..SLE200307-200508

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050iACV30,MCV31200307-200606

main56114-33050iACV30,MCV31..CP200606-200808

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iACV30,MCV31..SE200307-200808

TYPE B:REFER ILLUST.

main56115-22010iACV30,MCV31..SLE200307-200508

CANADA SPEC

main56115-30100iACV30,MCV31200307-200808

TYPE A:REFER ILLUST.

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACV30,MCV31200307-200808

56117EDAM, WINDOW GLASS ADHESIVE

main90998-91004iACV30,MCV31..SE200307-200808

*D,L=3955

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main90998-91003iACV30,MCV31..SE200307-200808

*D,L=690

90467A0016C0

main90467-A0016C0

18 parts on this diagram · 1 diagram in section
