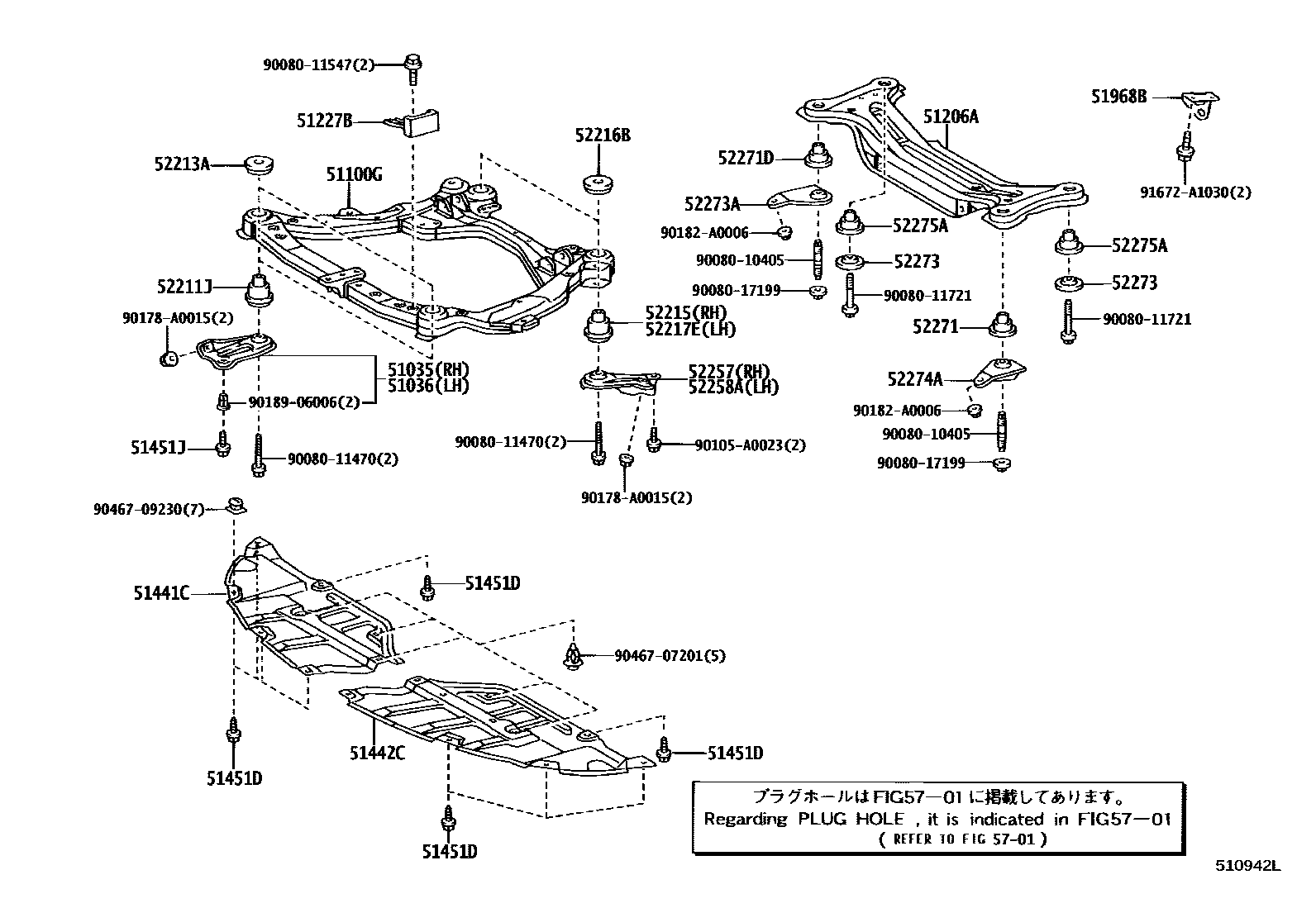

SUSPENSION CROSSMEMBER & UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33011iACV30,MCV31200307-200812

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33011iACV30,MCV31200307-200812

51100GFRAME ASSY, FRONT

main51100-06050iACV30,MCV31..CP..5FC200307-200808

sub51100-07030

main51100-06070iACV30..5F200307-200808

sub51100-06180

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06050iACV30,MCV31200307-200312

sub51206-06051

main51206-06100iACV30,MCV31200602-200710

sub51206-06103

main51206-06101iMCV31..CVT200710-200809

sub51206-06102

main51206-06102iMCV31..CVT200810

sub51206-06103

main51206-0E011iACV30,MCV31200401-200502

sub51206-06100

main51206-0E012iACV30,MCV31200503-200602

sub51206-0E013

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06030iACV30,MCV31200307-200512

(L)

sub51227-06031

main51227-06031iACV30,MCV31200601-200808

main51227-33101iACV30,MCV31200307-200601

(J)

51441CCOVER, ENGINE UNDER, RH

main51441-06050iACV30..4FC200307-200808

51442CCOVER, ENGINE UNDER, LH

main51442-06040iACV30,MCV31..5F,5FC200307-200808

51451DSCREW, NO.1

main90159-60525iACV30,MCV31..CP200605-200808

51451JBOLT, NO.1

main90105-A0023iACV30,MCV31200307-200605

51968BHOOK, TRANSPORT, REAR LH

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06030iACV30,MCV31..5F,5FC200307-200808

(L)

main52211-28010iACV30,MCV31..CP200307-200808

(J)

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06030iACV30..4FC200307-200808

(L)

main52213-28010iACV30,MCV31..CP200307-200808

(J)

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iACV30..4FC200307-200808

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030iACV30..4FC200307-200808

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iACV30..4FC200307-200808

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33040iACV30..4FC200307-200808

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33050iACV30..4FC200307-200808

52271CUSHION, REAR SUSPENSION MEMBER

main52272-06040iACV30..4FC200307-200808

sub52272-06041

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06050iACV30..4FC200307-200808

sub52271-06051

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010iACV30..4FC200307-200808

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33020iACV30..4FC200307-200808

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33020iACV30..4FC200307-200808

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050iACV30..4FC200307-200808

sub52275-06051

5701

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

90105A0023

main90105-A0023

90178A0015

main90178-A0015

90182A0006

main90182-A0006

9018906006

main90189-06006

9046707201

main90467-07201

9046709230

main90467-09230

91672A1030

main91672-A1030

36 parts on this diagram · 1 diagram in section
