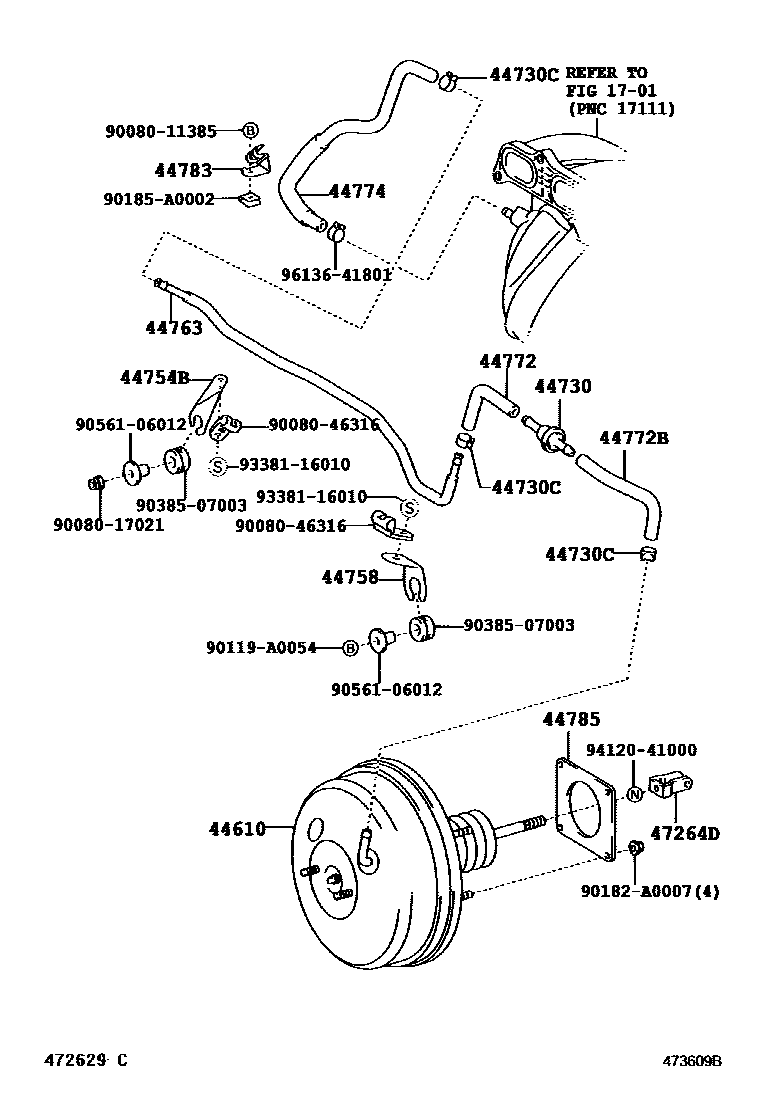

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-06280iACV30,MCV31200307-200812

main44610-06290iMCV31200605-200812

VEHICLE STABILITY CONT-WITH

main44610-06290iMCV31200307-200605

VSC-WITH

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iACV30,MCV31..CP200307-200808

44730CCLIP(FOR VACUUM HOSE)

main90466-A0003iMCV31..CP200307-200808

44754BBRACKET, VACUUM TUBE

main44758-06040iACV30..4FC200307-200808

44758BRACKET, VACUUM CHECK VALVE

main44758-06030iACV30..4FC200307-200808

main44758-33070iMCV31..CVT200307-200808

44763TUBE, BOOSTER VACUUM

main44763-06020iACV30..5F,5FC200307-200808

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06030iACV30..4FC200307-200808

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06040iACV30..4FC200307-200808

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06020iACV30..5F,5FC200307-200808

44783CLAMP, VACUUM HOSE

main44783-06020iACV30..4FC200406-200808

main44783-28010iACV30200307-200405

44785GASKET, BRAKE BOOSTER

main44785-02010iACV30,MCV31..CP200307-200808

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iACV30..4FC200307-200808

9008011385

main90080-11385

9008017021

main90080-17021

9008046316

main90080-46316

90119A0054

main90119-A0054

90182A0007

main90182-A0007

90185A0002

main90185-A0002

9038507003

main90385-07003

9056106012

main90561-06012

9338116010

main93381-16010

9412041000

main94120-41000

9613641801

main96136-41801

24 parts on this diagram · 2 diagrams in section
