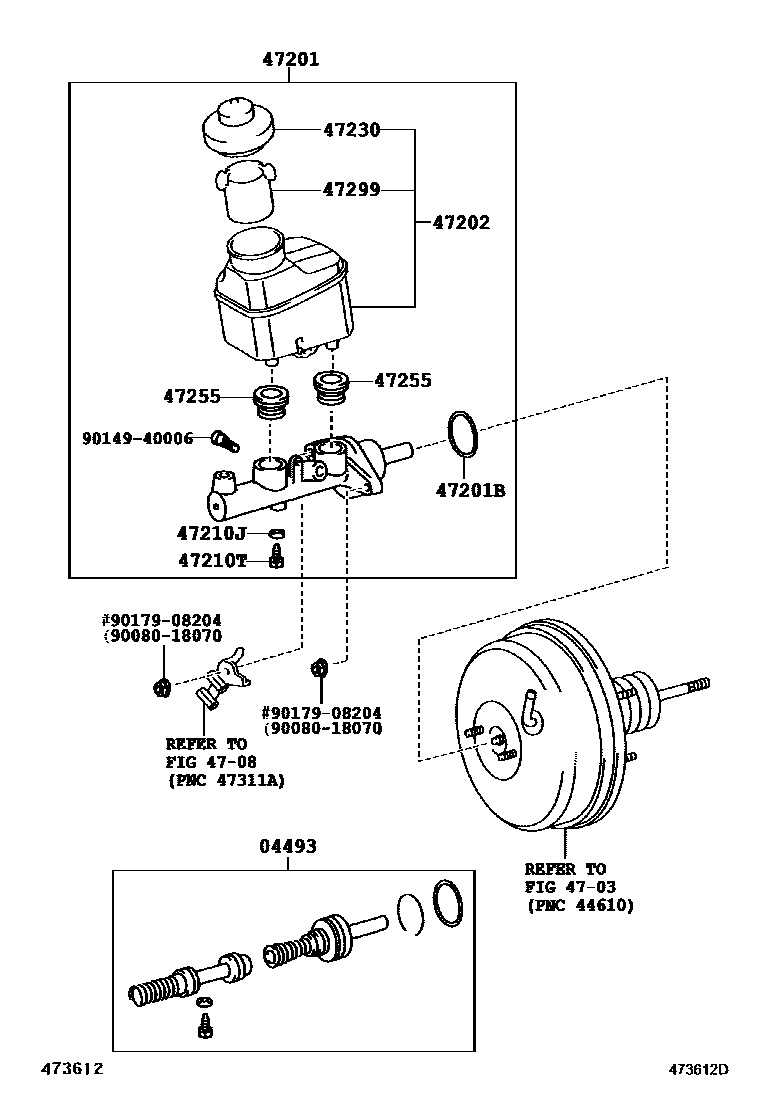

BRAKE MASTER CYLINDER

0001 1 0002 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-06050iACV30,MCV31..CP200605-200808

main04493-33140supersedes 04493-06050iMCV31200307-200605

VSC-WITH

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06260iACV30..5F200605-200808

main47201-06290iACV30,MCV31..5FC200307-200605

main47201-33230iMCV31200605-200812

VEHICLE STABILITY CONT-WITH

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMCV31..CVT200605

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06031iACV30,MCV31..4FC,5FC200307-200605

main47220-33140iACV30..5F200605-200808

main47220-33131supersedes 47220-06031iMCV31..CVT200605-200812

VEHICLE STABILITY CONT-WITH

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV31..CVT200605-200812

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACV30..4FC200307-200503

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iACV30,MCV31..CP..5FC200605-200808

sub47230-01031

main47230-12040supersedes 47230-01030iACV30,MCV31200307-200309

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010×2iACV30..4FC200307-200503

main47255-16010×2supersedes 47255-03010iMCV31..CVT200605-200812

VEHICLE STABILITY CONT-WITH

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iACV30,MCV31..CP200605-200808

9008018070

main90080-18070

9014940006

main90149-40006

9017908204

main90179-08204

14 parts on this diagram · 2 diagrams in section
