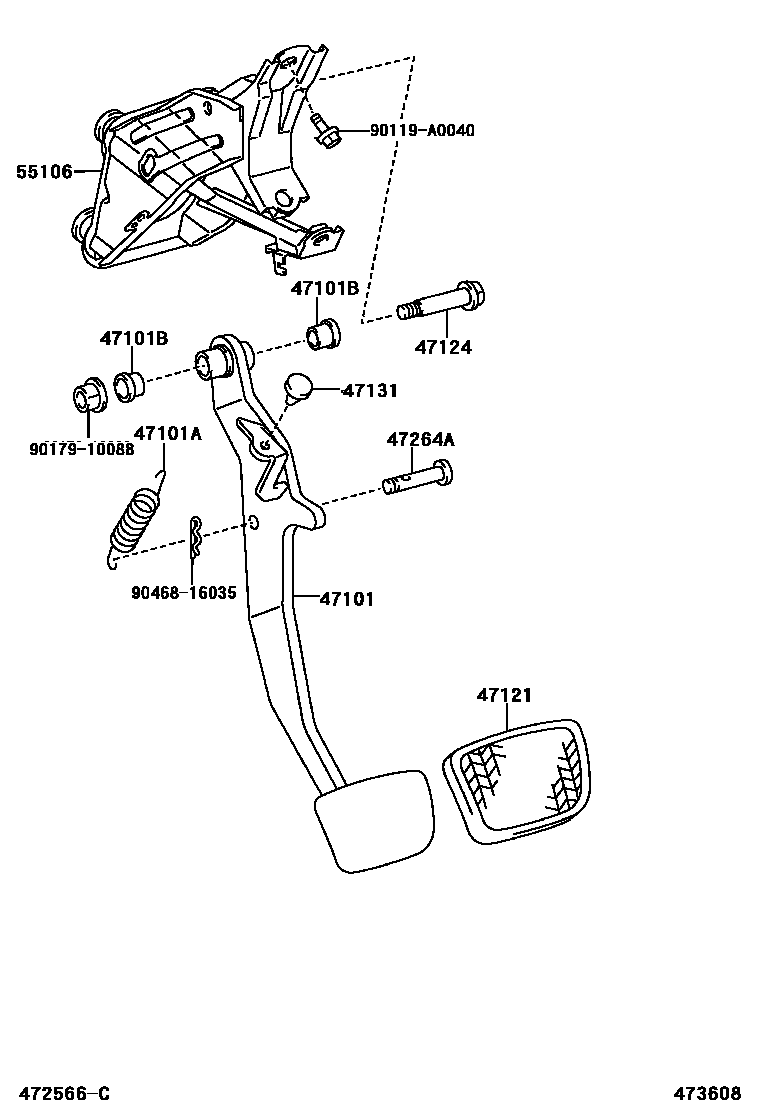

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33060iACV30..5F200307-200808

main47101-33070iACV30..4FC200307-200808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14051iACV30,MCV31..CP200307-200808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACV30..4FC200307-200808

47121PAD, BRAKE PEDAL

main31321-52010iACV30..5F200307-200808

main47121-50020iACV30,MCV31..CP..5FC200307-200808

47124SHAFT, BRAKE PEDAL

main90109-10167iACV30..4FC200307-200808

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV30..4FC200307-200808

47264APIN(FOR PUSH ROD)

main47148-33011iACV30..4FC200307-200808

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33080iACV30..4FC200307-200808

90119A0040

main90119-A0040

9017910088

main90179-10088

9046816035

main90468-16035

11 parts on this diagram · 1 diagram in section
