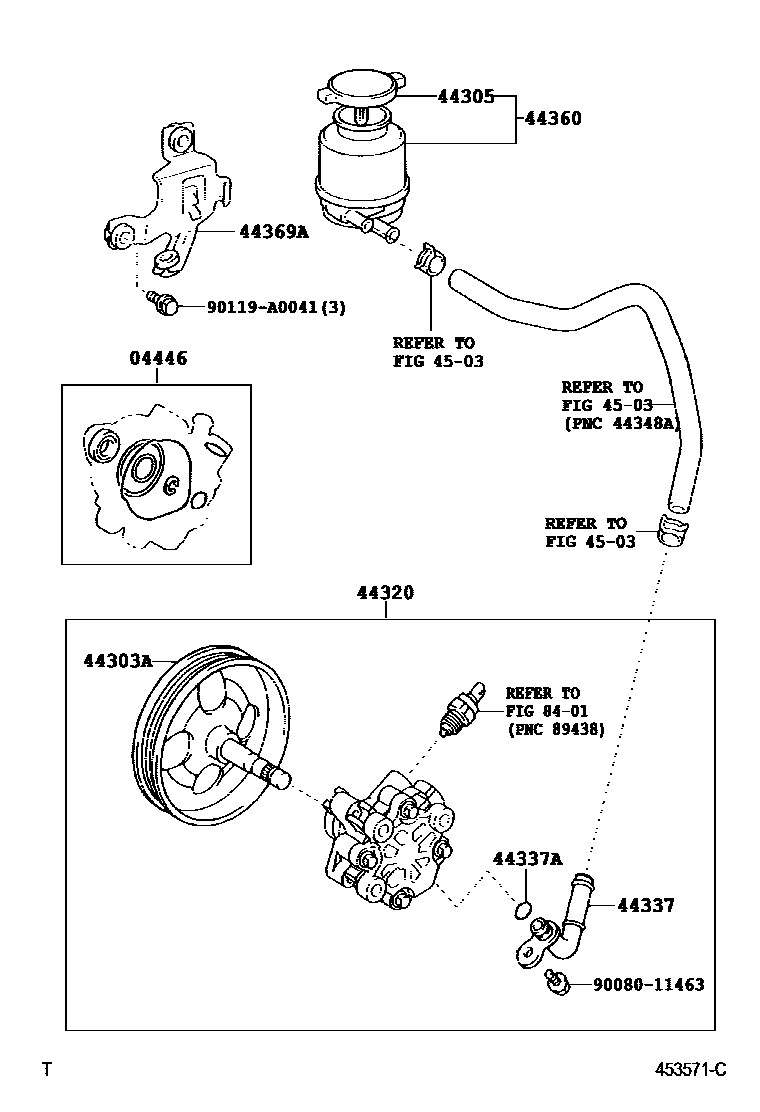

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02070iACV30200307-200704

sub04446-02140

main04446-02140iACV30200704-200808

main04446-04010iMCV31200503-200606

sub04446-06040

main04446-06040iMCV31200307-200812

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06010iACV30200307-200405

main44303-06030iMCV31200307-200808

main44303-06060iACV30..4FC200405-200808

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-06030iACV30..4FC200307-200709

sub44305-06050

main44305-06050iACV30,MCV31..CP200710-200808

44320PUMP ASSY, VANE

main44310-06070iACV30200307-200405

sub44310-06071

main44310-06071iACV30200405-200808

main44310-06110iMCV31200307-200808

44337UNION, POWER STEERING SUCTION PORT

main44337-06040iMCV31..CP200307-200808

main44337-32110iACV30..4FC200307-200808

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30034iMCV31..CP200307-200808

main90301-11020iACV30..4FC200307-200808

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06030iACV30,MCV31200307-200808

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-06020iACV30..4FC200307-200808

4503

9008011463

main90080-11463

90119A0041

main90119-A0041

11 parts on this diagram · 2 diagrams in section
