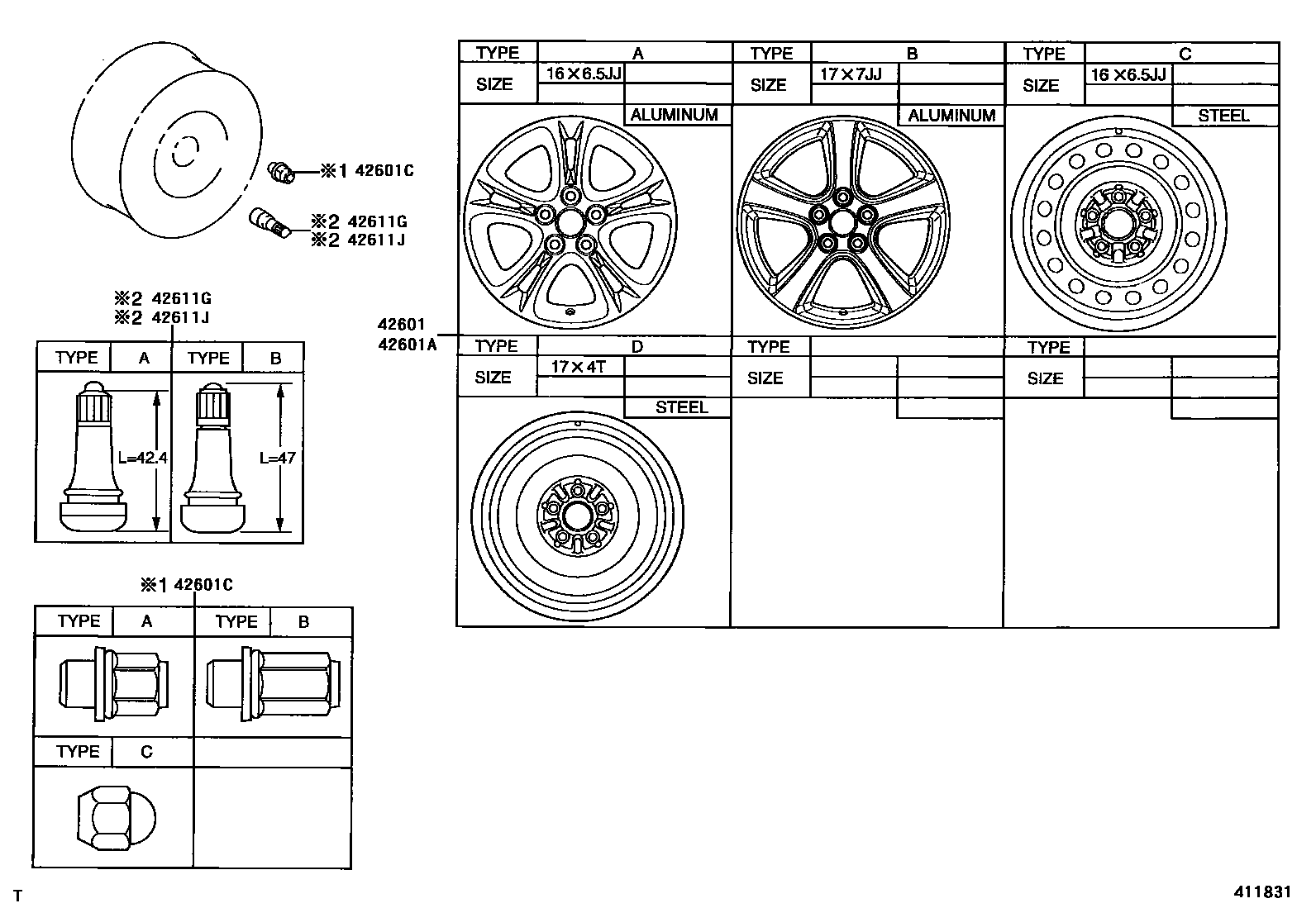

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7JJ, #,TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM SPORT,TYPE E:REFER ILLUST.
17X7JJ, #,TIRE & DISK WHEEL-P215/55R17 SM93V 7J ALUMINUM SPORT,TYPE E:REFER ILLUST.
17X7JJ, #,SPORT PACKAGE(HID HEAD LAMP)&TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM SPORT,TYPE E:REFER ILLUST.
16X6.5JJ, #,TIRE & DISC WHEEL-P215/60R16AS94V 6.5JJ ALMINUM,TYPE A:REFER ILLUST.
sub42611-AA031
16X6.5JJ, #,TYPE A:REFER ILLUST.
16X6.5JJ, #,TIRE & DISK WHEEL-P215/60R16 AS94V 6.5J ALUMINUM,TYPE A:REFER ILLUST.
17X7JJ, #,TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL,TYPE B:REFER ILLUST.
17X7JJ, #,TYPE B:REFER ILLUST.
17X7JJ, #,TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM,TYPE B:REFER ILLUST.
17X7JJ, #,TYPE B:REFER ILLUST.
17X7JJ, #,TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM,TYPE B:REFER ILLUST.
16X6.5JJ, #,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7JJ, #,TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM SPORT&SPARE TIRE-GROUND TIRE(ALUMINUM SPORT),TYPE E:REFER ILLUST.
17X7JJ, #,TIRE & DISK WHEEL-P215/55R17 SM93V 7J ALUMINUM SPORT&SPARE TIRE-GROUND TIRE(ALUMINUM SPORT),TYPE E:REFER ILLUST.
16X6.5JJ, #,SPARE TIRE-GROUND TIRE(ALUMINUM),TYPE A:REFER ILLUST.
16X6.5JJ, #,TIRE & DISK WHEEL-P215/60R16 AS94V 6.5J ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM),TYPE A:REFER ILLUST.
17X7JJ, #,SPARE TIRE-WITH(ALMINUM),TYPE B:REFER ILLUST.
17X7JJ, #,TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM),TYPE B:REFER ILLUST.
17X7JJ, #,TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL&SPARE TIRE-WITH(ALMINUM),TYPE B:REFER ILLUST.
17X7JJ, #,SPARE TIRE-GROUND TIRE(ALUMINUM),TYPE B:REFER ILLUST.
17X7JJ, #,TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM),TYPE B:REFER ILLUST.
16X6.5JJ, #,SPARE TIRE-WITH(STEEL),TYPE C:REFER ILLUST.
sub42611-AE021
16X6.5JJ, #,SPARE TIRE-GROUND TIRE(STEEL),TYPE F:REFER ILLUST.
17X4T,TIRE & DISC WHEEL-P215/60R16SM94V 6.5JJ,TYPE D:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
17X4T,TIRE & DISC WHEEL-P215/60R16SM94V 6.5JJ ALMINUM,TYPE D:REFER ILLUST.
17X4T,TIRE & DISC WHEEL-P215/60R16AS94V 6.5JJ ALMINUM,TYPE D:REFER ILLUST.
17X4T,TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM,TYPE D:REFER ILLUST.
17X4T,TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-P215/60R16AS94V 6.5JJ ALMINUM,TYPE A:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P215/60R16 AS94V 6.5J ALUMINUM,TYPE A:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM SPORT,TYPE A:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P215/55R17 SM93V 7J ALUMINUM SPORT,TYPE A:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P215/60R16SM94V 6.5JJ ALMINUM,TYPE A:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL,TYPE B:REFER ILLUST.
sub90942-A1011
TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM,TYPE B:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-P215/55R17 AS93V 7J ALUMINUM,TYPE B:REFER ILLUST.
sub90942-A1011
TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/60R16AS94V 6.5JJ ALMINUM,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
SPARE TIRE-WITH(STEEL),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/60R16SM94V 6.5JJ ALMINUM,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/60R16AS94V 6.5JJ ALMINUM,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/60R16SM94V 6.5JJ,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
SPARE TIRE-WITH(STEEL),TYPE B:REFER ILLUST.
5 parts on this diagram · 5 diagrams in section
