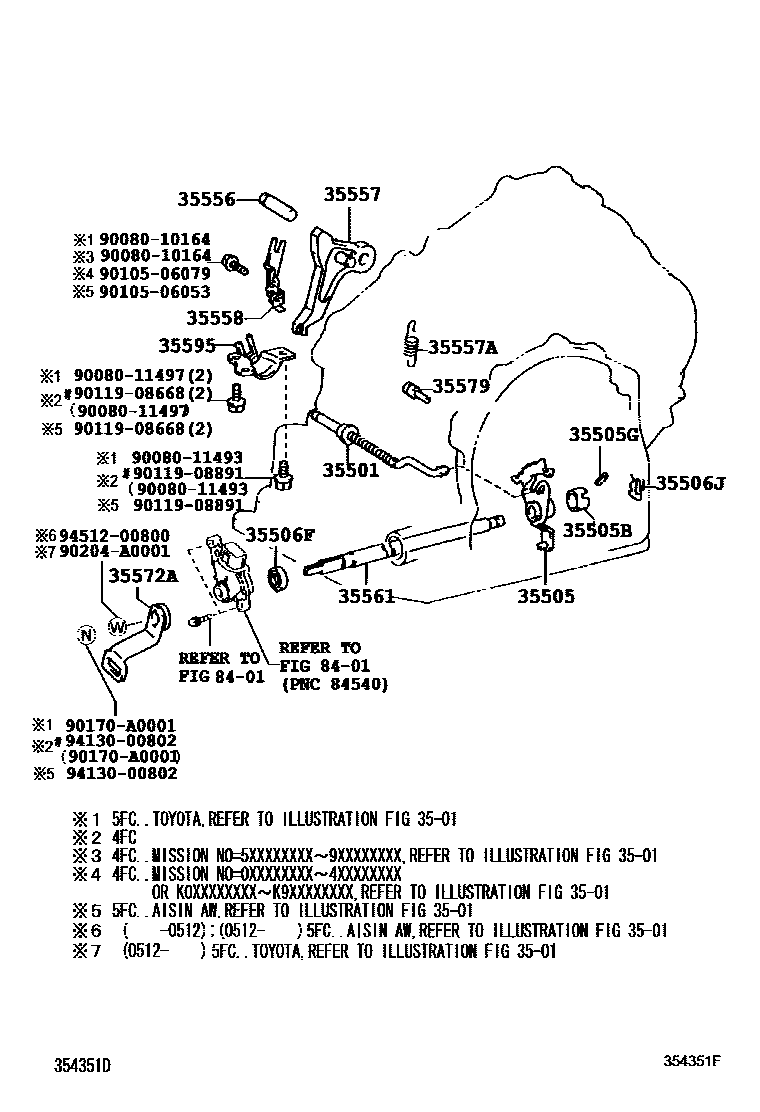

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U151E,U241E 0003 1U250E

35501ROD SUB-ASSY, PARKING LOCK

main35501-07010iMCV31200407-200605

(L)

main35501-21010iMCV31200307-200808

main35501-21010iACV30..4FC200307-200605

(J)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iMCV31..CVT200307-200808

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV30..4FC200307-200808

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV30,MCV31..4FC,5FC200307-200808

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV30..4FC200307-200808

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV30,MCV31..5FC200307-200808

35556SHAFT, PARKING LOCK PAWL

main35556-07010iMCV31200512-200708

TOYOTA:REFER 35-01

sub35556-21010

main35556-21010iMCV31..CP200708-200808

TOYOTA:REFER 35-01

main35556-28010iMCV31..CVT200512-200808

AISIN:REFER 35-01

main35556-28010iMCV31200307-200512

main35556-28020iACV30..4FC200307-200503

*116

main35556-32030iACV30..5FC200503-200808

main35556-32030iACV30..4FC200307-200503

*117 OR *118

35557PAWL, PARKING LOCK

main35590-21010iMCV31..CP200307-200808

main35590-32010iACV30..4FC200307-200808

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90080-50373iMCV31..CVT200307-200808

(L)

main90506-18077iMCV31..CP200307-200808

(J)

main90506-18077iACV30,MCV31..5FC200501-200605

35558CLAMP, PAWL SHAFT

main35558-21010iMCV31..CP200307-200808

TOYOTA:REFER 35-01

main35558-28010iMCV31..CVT200501-200808

AISIN:REFER 35-01

main35558-32010iACV30..5FC200307-200808

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV30..4FC200307-200808

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-08010iMCV31..CP200307-200808

(L)TOYOTA:REFER35-01

main35572-08010iACV30..4FC200307-200503

(L)

main35572-28100iMCV31200501-200808

AISIN:REFER 35-01

sub35572-48010

main35572-48010iMCV31..CP200307-200808

(J)TOYOTA:REFER35-01

main35572-48010iACV30..4FC200307-200503

(J)

main35572-48010iACV30..5FC200503-200605

35579PIN, PARKING LOCK PAWL

main35594-07010iMCV31200512-200708

TOYOTA:REFER 35-01

sub35594-21010

main35594-21010iMCV31..CVT200307-200808

TOYOTA:REFER 35-01

main35594-21010iACV30..5FC200307-200808

main35594-28010iMCV31..CP200501-200808

AISIN:REFER 35-01

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV30..4FC200307-200808

8401

9008010164

main90080-10164

9008011493

main90080-11493

9008011497

main90080-11497

9010506053

main90105-06053

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

90170A0001

main90170-A0001

90204A0001

main90204-A0001

9413000802

main94130-00802

9451200800

main94512-00800

26 parts on this diagram · 2 diagrams in section
