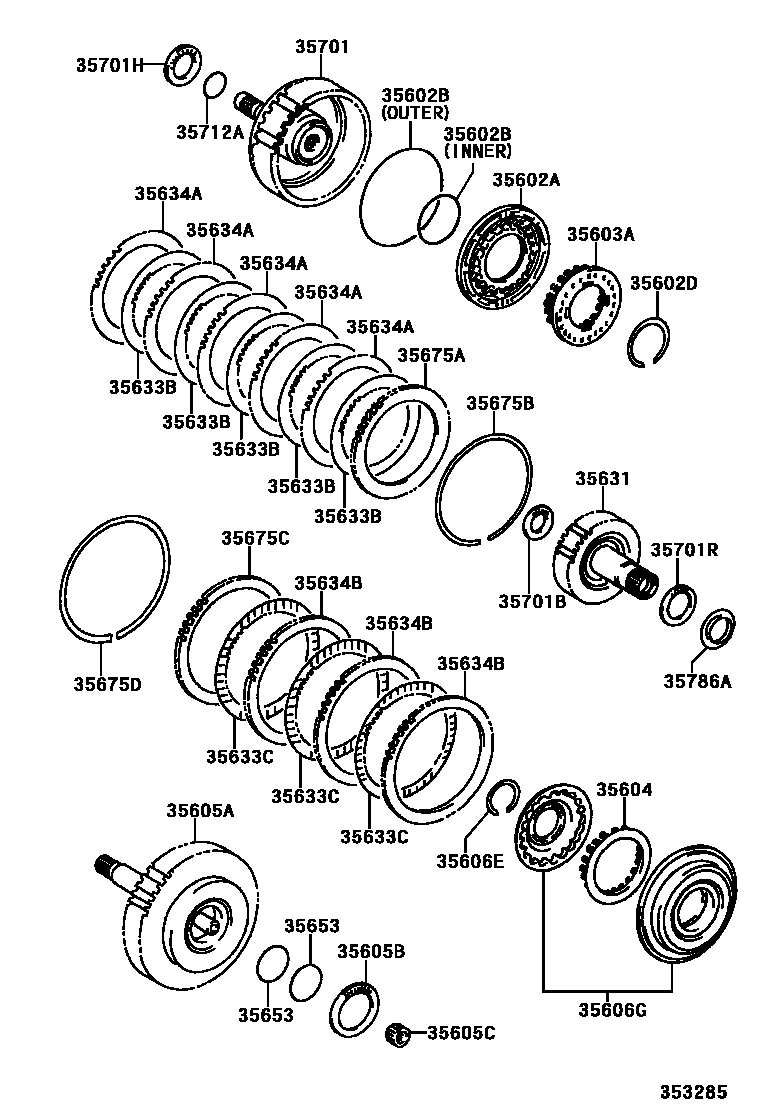

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602APISTON SUB-ASSY, FORWARD CLUTCH
(L)
(J)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35602BRING, O (FOR FORWARD CLUTCH PISTON)
OUTER,(L)
INNER,(L)
INNER,(J)
OUTER,(J)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
(L)
(J)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
(L)
TOYOTA:REFER 35-01
(J)
AISIN:REFER 35-01
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
(L)
(J)
35605ADRUM SUB-ASSY, DIRECT CLUTCH
(L)
35605BBEARING, THRUST NEEDLE ROLLER
TOYOTA:REFER 35-01
(L),T=3.45
sub90374-53006
(J),T=3.40,OD=70.18
AISIN:REFER 35-01
35605CBEARING, NEEDLE ROLLER
(L)
(J)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
(L)
(J)
35606GPISTON SET, DIRECT CLUTCH
(L)
(J)
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
TOYOTA:REFER 35-01
(L)TOYOTA:REFER35-01
sub35061-28010
AISIN:REFER 35-01
sub35061-33020
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
(L)
TOYOTA:REFER 35-01
(J)
AISIN:REFER 35-01
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
(L)
(L)
(J)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,(L)
T=1.8,TOYOTA:REFER 35-01
T=1.8,(J)
T=1.8
T=1.8,AISIN:REFER 35-01
T=1.8
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=3.0,(L)
T=1.8,(L)
T=3.0,(J)
T=1.8
T=1.8,(J)
35675AFLANGE, FORWARD CLUTCH
T=3.00,(L)
T=3.15,(L)
T=3.30,(L)
T=3.45,(L)
T=3.60,(L)
T=3.00
T=3.00,(J)
T=3.15
T=3.15,(J)
T=3.30,(J)
T=3.30
T=3.45
T=3.45,(J)
T=3.60,(J)
T=3.60
T=3.75
T=2.85
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
(L)
(J)
35675CFLANGE, DIRECT CLUTCH
T=3.0,(L)
T=3.1,(L)
T=3.2,(L)
T=3.3,(L)
T=3.4,(L)
T=3.5,(L)
T=3.6,TOYOTA:REFER 35-01
T=3.0
T=3.0,(J)
T=3.1,(J)
T=3.1
T=3.2,(J)
T=3.2
T=3.3
T=3.3,(J)
T=3.4
T=3.4,(J)
T=3.5,(J)
T=3.5
T=2.9
T=3.6,AISIN:REFER 35-01
T=3.6
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
(L)
(J)
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
(L)
(J)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=52.05,(L)
OD=52.2,(J)
OD=52.2
35701RBEARING, THRUST NEEDLE ROLLER
(L)
(J)
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
(L)
(J)
26 parts on this diagram · 3 diagrams in section
