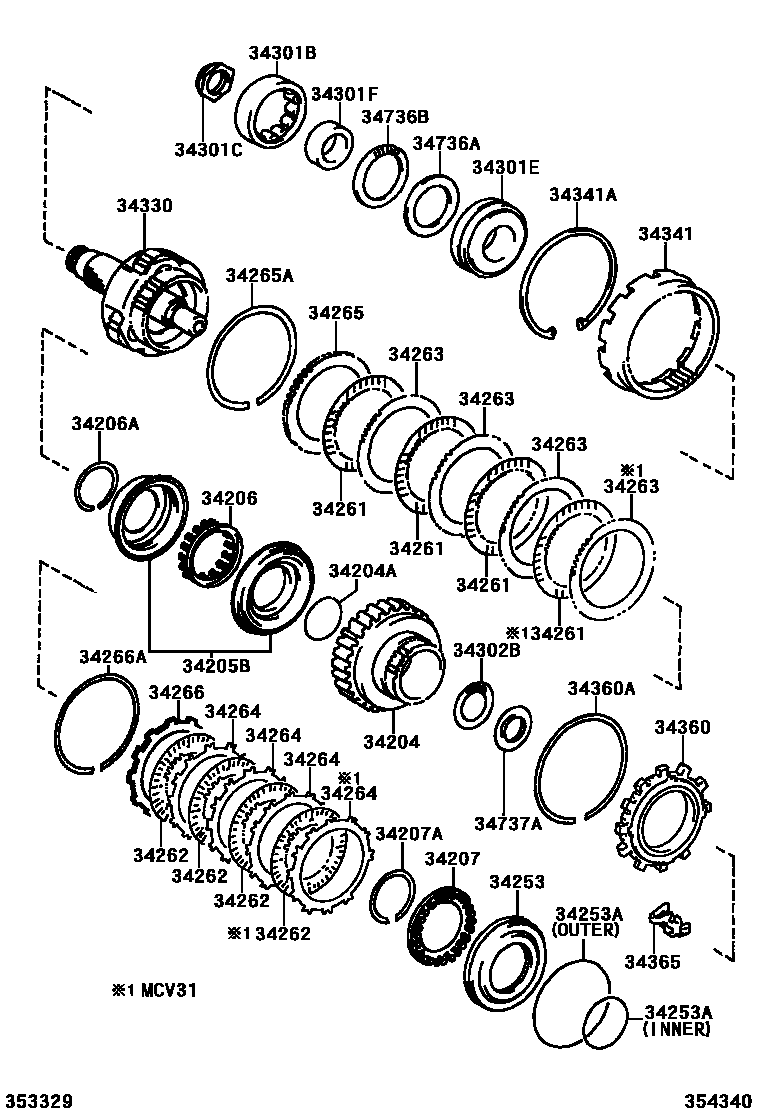

OVERDRIVE GEAR (ATM)
34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH
TOYOTA:REFER 35-01
(L)
AISIN:REFER 35-01
AISIN:REFER 35-01
sub34204-28020
34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)
(L)
(L)
(J)
(J)
34205BPISTON SET, UNDERDRIVE CLUTCH
TOYOTA:REFER 35-01
(L)
(J)
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
(L)
(L)
(J)
(J)
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
(L)
(L)
(J)
(J)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
(L)
(J)
34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
(L)
(J)
34253PISTON, UNDERDRIVE BRAKE
(J)
AISIN:REFER 35-01
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
OUTER,(L)
OUTER,TMC:SEE 35-01
INNER
INNER,(J)
OUTER,AISIN:SEE35-01
OUTER,(J)
OUTER
INNER,(L)
34262DISC, UNDERDRIVE CLUTCH, NO.2
(L)
TOYOTA:REFER 35-01
(J)
AISIN:REFER 35-01
34263PLATE, UNDERDRIVE CLUTCH, NO.1
TOYOTA:REFER 35-01
(L)
AISIN:REFER 35-01
(J)
34264PLATE, UNDERDRIVE CLUTCH, NO.2
TOYOTA:REFER 35-01
(L)
AISIN:REFER 35-01
(J)
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
T=3.0 MARK 1
T=3.2 MARK 2
T=3.4 MARK 3
T=3.0 MARK 1,(L)
T=3.1 MARK 4,TOYOTA:REFER 35-01
T=3.2 MARK 2,(L)
T=3.3 MARK 5,TOYOTA:REFER 35-01
T=3.4 MARK 3,(L)
T=3.0 MARK 1,(J)
T=3.2 MARK 2,(J)
T=3.4 MARK 3,(J)
T=3.6 MARK 6
T=2.8 MARK 0
T=2.9 MARK 7
T=3.5 MARK 8
T=3.0 MARK A
T=3.2 MARK B
T=3.4 MARK C
T=3.6 MARK D
T=2.8 MARK Y
T=3.1 MARK 4,AISIN:REFER 35-01
T=3.3 MARK 5,AISIN:REFER 35-01
T=3.1 MARK G
T=3.3 MARK H
T=3.5 MARK J
T=2.9 MARK F
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
(L)
(L)
(J)
(J)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK 4
MARK 0
MARK D,(L)
MARK Y,(L)
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
MARK A
MARK A,(J)
MARK B
MARK B,(J)
MARK C
MARK C,(J)
MARK D,(J)
MARK D
MARK Y
MARK Y,(J)
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
(L)
(J)
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
(L)
*116
*117 OR *118
*117 OR *118
(J)
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
(J)
(L)
34301EBEARING, TAPERED ROLLER (FOR UNDERDRIVE)
(L)
sub90363-A0005
AISIN:REFER 35-01
TOYOTA:REFER 35-01
(J)
34301FRACE, CYLINDRICAL ROLLER BEARING, INNER
*116
(J)
*117 OR *118
*117 OR *118
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
(L)
TOYOTA:REFER 35-01
(J)
AISIN:REFER 35-01
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
(J)
(L)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
TOYOTA:REFER 35-01
AISIN:REFER 35-01
34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
(L)
(L)
(J)
(J)
34736ARACE, THRUST BEARING UNDERDRIVE, NO.2
(L),T=3.8
T=3.5
T=3.8
(J),T=3.5
T=3.5
T=3.8
(J),T=3.8
34736BBEARING, THRUST NEEDLE ROLLER
(L)
(J)
34737ARACE, THRUST BEARING UNDERDRIVE, NO.3
(L)
(J)
31 parts on this diagram · 1 diagram in section
