E
EPC Data

SHIFT LEVER & RETAINER

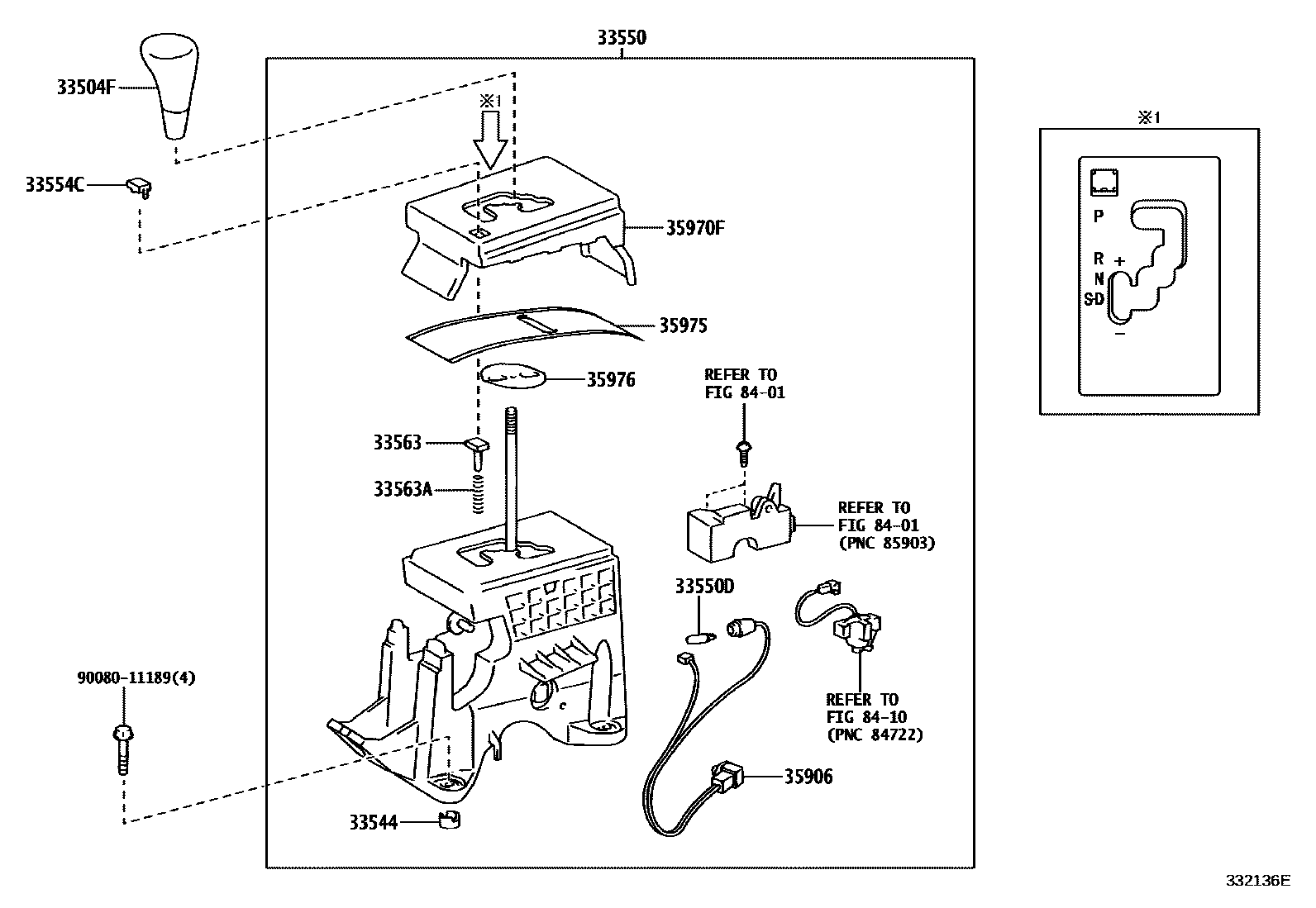

Parts diagram
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-06010-B1i200605-200808
DK. STONE,TRIM1#
sub33504-06010
main33504-06010-E1i200605-200808
ORCHID BROWN,TRIM0#
sub33504-06010
main33504-06020-B0i200605-200808
SPORT PACKAGE(HID HEAD LAMP),DK.GRAY,TRIM11
sub33504-06020
main33504-06020-B0i200605-200808
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK.GRAY,TRIM11
sub33504-06020
main33504-06020-B0i200605-200808
AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK.GRAY,TRIM11
sub33504-06020
main33504-06020-B0i200605
AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER,DK.GRAY,TRIM11
sub33504-06020
main33504-06020-B0i200605
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER,DK.GRAY,TRIM11
sub33504-06020
main33504-06020-B1i200605
AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER,DK. STONE,TRIM10
sub33504-06020
main33504-06020-B1i200605-200808
AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK. STONE,TRIM10
sub33504-06020
main33504-06020-B1i200605-200808
DK. STONE,TRIM1#
sub33504-06020
main33504-06020-B1i200605-200808
SPORT PACKAGE(HID HEAD LAMP),DK. STONE,TRIM10
sub33504-06020
main33504-06020-B1i200605-200808
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK. STONE,TRIM10
sub33504-06020
main33504-06020-B1i200605
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER,DK. STONE,TRIM10
sub33504-06020
main33504-06020-E0i200605
AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER,ORCHID BROWN,TRIM0#
sub33504-06020
main33504-06020-E0i200605-200808
SPORT PACKAGE(HID HEAD LAMP),ORCHID BROWN,TRIM0#
sub33504-06020
main33504-06020-E0i200605-200808
ORCHID BROWN,TRIM0#
sub33504-06020
main33504-06020-E0i200605
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER,ORCHID BROWN,TRIM0#
sub33504-06020
main33504-06020-E0i200605-200808
AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,ORCHID BROWN,TRIM0#
sub33504-06020
main33504-06020-E0i200605-200808
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,ORCHID BROWN,TRIM0#
sub33504-06020
main33504-12180-A0i200307-200605
IVORY,TRIM00
sub33504-12180
main33504-12180-B8i200307-200808
DK. STONE,TRIM1#
sub33504-12180
main33504-12180-E8i200605-200808
ORCHID BROWN,TRIM0#
sub33504-12180
main33504-12180-E8i200307-200605
ORCHID BROWN,TRIM00
sub33504-12180
main33504-12200-B3i200605-200808
AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK.GRAY,TRIM11
sub33504-12200
sub33504-22140
main33504-12200-B3i200307-200605
SPORT PACKAGE,DK.GRAY,TRIM1#
sub33504-12200
sub33504-22140
main33504-12200-B3i200605-200808
SPORT PACKAGE(HID HEAD LAMP),DK.GRAY,TRIM11
sub33504-12200
sub33504-22140
main33504-12200-B3i200605-200808
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK.GRAY,TRIM11
sub33504-12200
sub33504-22140
main33504-12200-B5i200605-200808
AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK.STONE,TRIM10
sub33504-12200
sub33504-22140
main33504-12200-B5i200605-200808
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK.STONE,TRIM10
sub33504-12200
sub33504-22140
main33504-12200-B5i200605-200808
SPORT PACKAGE(HID HEAD LAMP),DK.STONE,TRIM10
sub33504-12200
sub33504-22140
main33504-12200-E6i200605-200808
AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,ORCHID BROWN,TRIM0#
sub33504-12200
sub33504-22140
main33504-12200-E6i200605-200808
SPORT PACKAGE(HID HEAD LAMP),ORCHID BROWN,TRIM0#
sub33504-12200
sub33504-22140
main33504-12200-E6i200605-200808
SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,ORCHID BROWN,TRIM0#
sub33504-12200
sub33504-22140
main33504-22170-A0i200404-200605
IVORY,TRIM00
sub33504-22170
main33504-22170-A0i200307-200404
IVORY,TRIM0#
sub33504-22170
main33504-22170-B2i200307-200605
DK. STONE,TRIM1#
sub33504-22170
main33504-22170-E0i200404-200605
ORCHID BROWN,TRIM00
sub33504-22170
main33504-22170-E0i200503-200605
ORCHID BROWN,TRIM0#
sub33504-22170
main33504-30281-A0i200307-200403
IVORY,TRIM0#
sub33504-52090
sub33504-30281
sub33504-22170
main33504-30281-A0i200403-200605
IVORY,TRIM00
sub33504-52090
sub33504-30281
sub33504-22170
main33504-30281-B1i200307-200605
SPORT PACKAGE,DK.GRAY,TRIM1#
sub33504-52090
sub33504-30281
sub33504-22170
main33504-30281-B1i200408-200605
DK.GRAY,TRIM1#
sub33504-52090
sub33504-30281
sub33504-22170
main33504-30281-B4i200307-200605
DK. STONE,TRIM1#
sub33504-52090
sub33504-30281
sub33504-22170
main33504-30281-E3i200403-200605
ORCHID BROWN,TRIM00
sub33504-52090
sub33504-30281
sub33504-22170
main33504-30281-E3i200503-200605
ORCHID BROWN,TRIM0#
sub33504-52090
sub33504-30281
sub33504-22170
33544INSERT, SHIFT LEVER, NO.1
main33544-06010i200307-200605
33550FLOOR SHIFT ASSY, TRANSMISSION
main33550-06461i200605-200808
main33550-AA010i200307-200503
main33550-AA020i200307-200512
sub33550-AA021
main33550-AA021i200601-200605
33550DBULB, POSITION INDICATOR LAMP
main90981-11040i200307-200808
12V 2W
33554CCOVER, SHIFT LOCK RELEASE BUTTON
main33554-AA010i200307-200808
33563BUTTON, SHIFT LOCK RELEASE
main33563-AA010i200307-200808
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
main90080-50179i200307-200808
35906WIRE SUB-ASSY, INDICATOR LAMP
main35906-AA010i200307-200503
main35906-AA020i200309-200808
35970FHOUSING ASSY, POSITION INDICATOR
main35970-33220i200605-200808
main35970-AA010i200307-200503
main35970-AA020i200307-200605
35975COVER, SLIDE (FOR POSITION INDICATOR)
main35975-20240i200307-200808
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
main35976-20160i200307-200808
8401
8410
9008011189
main90080-11189

14 parts on this diagram · 4 diagrams in section
