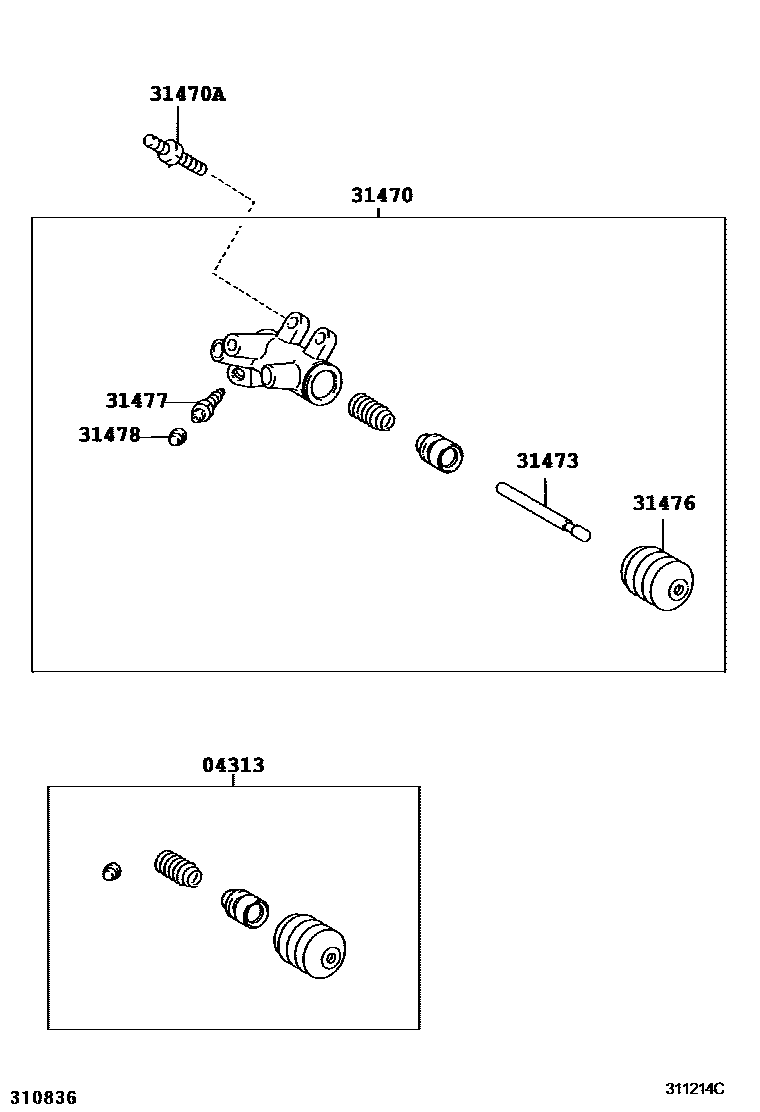

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iACV30..5F200307-200407

main04313-52020iACV30..5F200407-200808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-42030iACV30..5F200307-200407

sub31470-42031

main31470-42031iACV30..5F200407-200808

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iACV30..5F200307-200808

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iACV30..5F200307-200407

main31473-22030iACV30..5F200407-200808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACV30..5F200307-200808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACV30..5F200307-200808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACV30..5F200307-200808

7 parts on this diagram · 1 diagram in section
