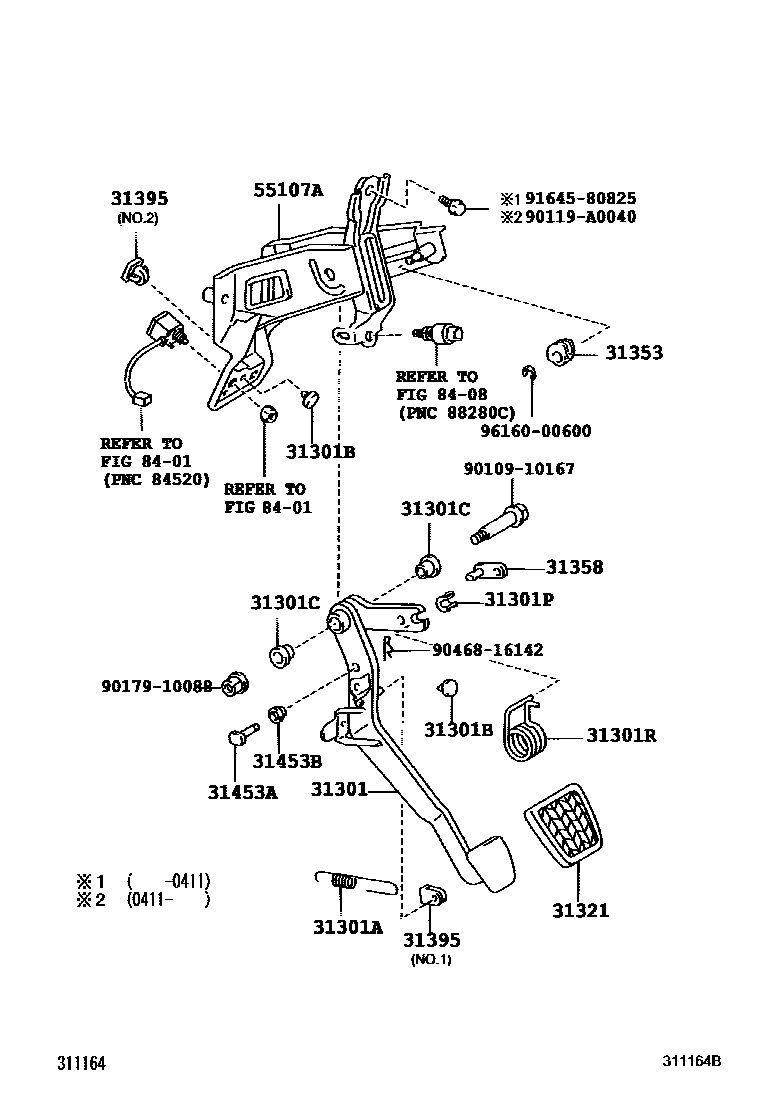

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33040iACV30..5F200307-200808

31301ASPRING(FOR CLUTCH PEDAL)

main90905-07033iACV30..5F200307-200808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iACV30..5F200307-200605

sub90541-06036

main90541-06036iACV30..5F200605-200808

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACV30..5F200307-200808

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iACV30..5F200307-200808

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03110iACV30..5F200307-200808

31321PAD, CLUTCH PEDAL

main31321-52010iACV30..5F200307-200808

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iACV30..5F200307-200808

31358CAP, OVER CENTER SPRING

main31358-42010iACV30..5F200307-200808

31395HOOK, PEDAL SPRING

main31395-33010iACV30..5F200307-200808

NO.1

main31395-33020iACV30..5F200307-200808

NO.2

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iACV30..5F200505-200808

L=31.5

main90249-08143iACV30..5F200307-200504

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iACV30..5F200307-200808

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33040iACV30..5F200307-200808

8401

8408

9010910167

main90109-10167

90119A0040

main90119-A0040

9017910088

main90179-10088

9046816142

main90468-16142

9164580825

main91645-80825

9616000600

main96160-00600

21 parts on this diagram · 2 diagrams in section
