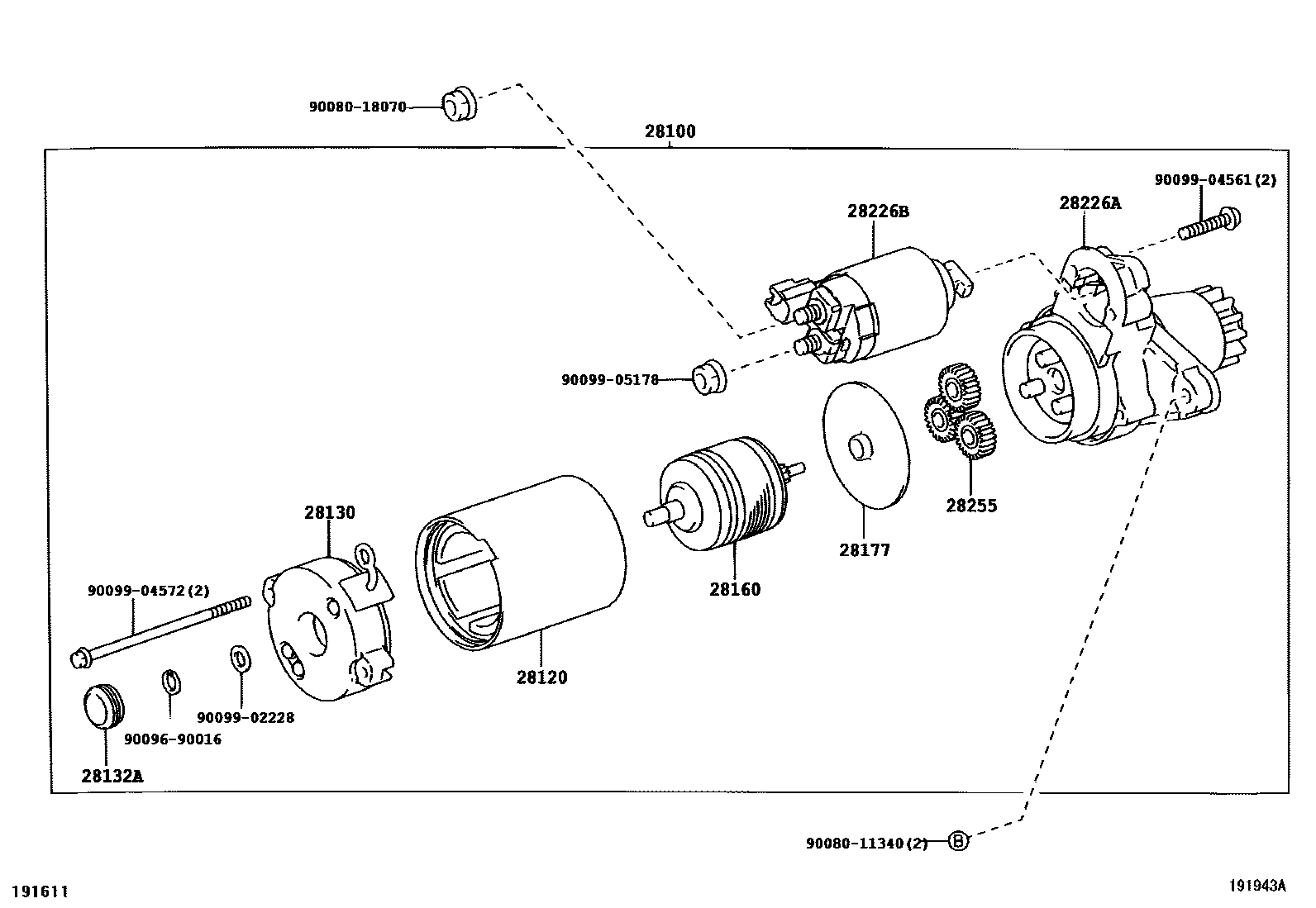

STARTER

28100STARTER ASSY

main28100-0A010i3MZFE..MCV31200307-200911

12V 1.7KW

sub28100-0A011

main28100-28041i2AZFE..ACV30..4FC200307-200605

12V 1.6KW

sub28100-28042

28120YOKE ASSY, STARTER

main28120-28040i2AZFE,3MZFE..ACV30,MCV31..5F,5FC200307-200808

sub28120-28060

main28120-28060i3MZFE..MCV31..CVT200808

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2AZFE,3MZFE..ACV30,MCV31..CP200307-200808

main28130-28040i2AZFE..ACV30..4FC200307-200605

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2AZFE..ACV30..4FC200307-200808

28160ARMATURE ASSY, STARTER

main28160-28040i2AZFE,3MZFE..ACV30,MCV31..5F,5FC200307-200808

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE..ACV30..4FC200307-200808

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2AZFE..ACV30..4FC200307-200808

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2AZFE..ACV30..4FC200307-200808

28255GEAR, PLANET

main28255-20020i3MZFE..MCV31200307-200808

main28255-28040i2AZFE..ACV30..4FC200307-200605

9008011340

main90080-11340

9008018070

main90080-18070

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

16 parts on this diagram · 1 diagram in section
