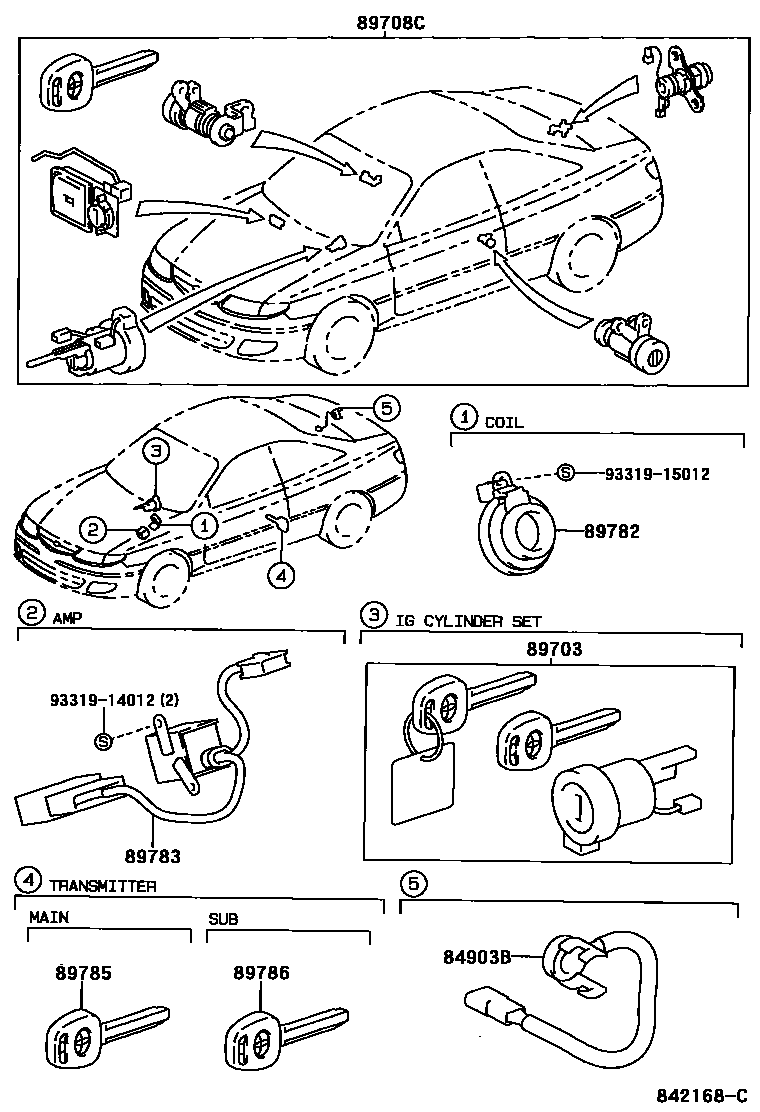

ANTI-THEFT DEVICE

0001 1 0002 1

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-33150iMCV20,SXV20199806-200212

sub84903-52010

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-33030iMCV20,SXV20199806-199908

main89703-33070iMCV20;SXV20..CP199908-200212

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-33210iMCV20,SXV20199806-199908

main89708-33290iMCV20..ATM200107-200112

W(ALARM & ENGINE IMMOBILIZER SYSTEM)

sub89708-33360

sub84903-33150

main89708-33290iMCV20..ATM200112-200212

W(ALARM & KEY LESS ENTRY)

sub89708-33360

sub84903-33150

main89708-33330iMCV20;ACV20..CP..ATM200008-200212

main89708-33330iMCV20;SXV20..CP199908-200008

W(ENGINE IMMOBILIZER SYSTEM)

main89708-33340iMCV20..ATM199908-200107

W(ALARM & ENGINE IMMOBILIZER SYSTEM)

sub89708-33330

sub84903-33150

main89708-33360iMCV20;ACV20..CP..ATM200107-200212

W(KEY LESS ENTRY)

89782COIL, TRANSPONDER KEY

main89782-33020iMCV20,SXV20199806-199908

main89782-33030iMCV20;SXV20..CP199908-200212

89783AMPLIFIER, TRANSPONDER KEY

main89783-33020iMCV20,SXV20199806-199908

main89783-33030iMCV20;SXV20..CP199908-200212

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iMCV20;SXV20..CP199806-200212

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iMCV20;SXV20..CP199806-200212

9331914012

main93319-14012

9331915012

main93319-15012

9 parts on this diagram · 2 diagrams in section
