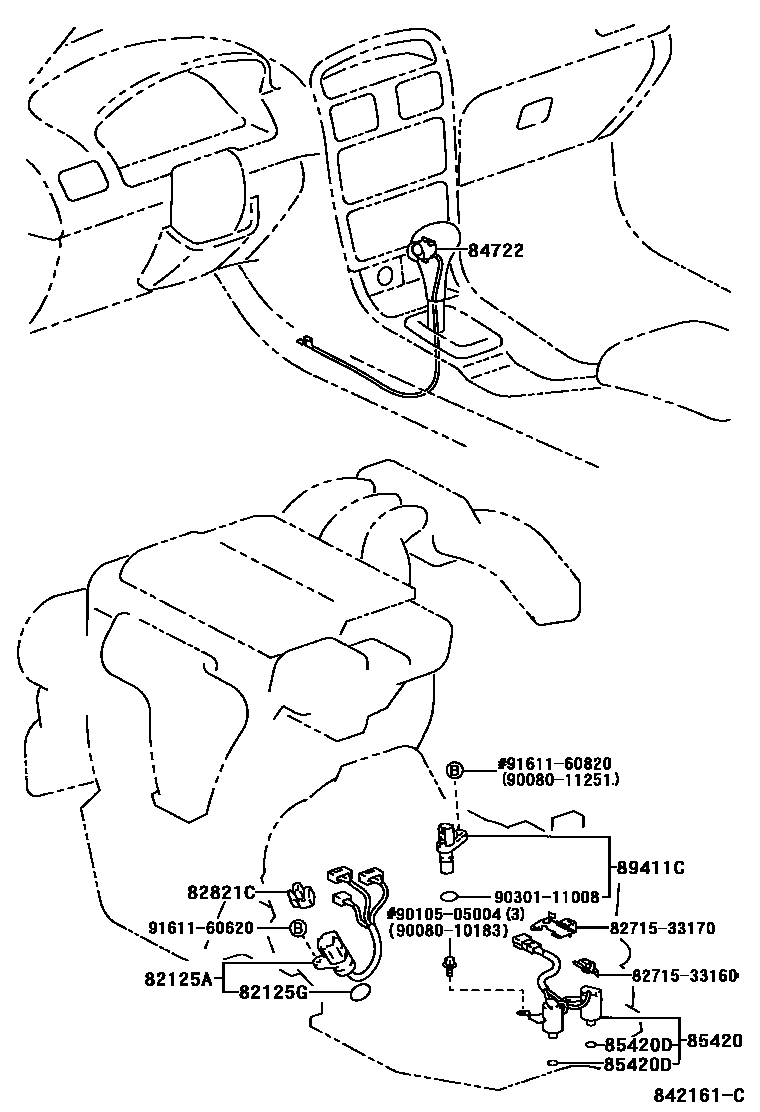

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

82125AWIRE, TRANSMISSION

main82125-06010iACV20..ATM200107-200212

main82125-20150iSXV20..ATM199806-200107

main82125-33010iMCV20..ATM199806-200212

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iACV20,MCV20..ATM199806-200212

82821CCOVER, CONNECTOR

main82821-33050iMCV20..ATM199806-200212

84722SWITCH, TRANSMISSION CONTROL

main84722-06030-C0iMCV20,SXV20..ATM199806-199908

BLACK,TRIM0#,1#

main84722-06040-C0iACV20,MCV20,SXV20..ATM199908-200212

BLACK,TRIM0#,1#

85420SOLENOID ASSY, TRANSMISSION

main85420-20110iSXV20..ATM199806-200107

NO.3

main85420-32021iSXV20..ATM199806-200107

NO.1

main85420-32140iSXV20..ATM199806-200107

NO.2

sub85420-32041

main85420-33010iMCV20..ATM199806-200212

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iSXV20..ATM199806-200107

NO.1

main90301-06004iMCV20..ATM199806-200212

main90301-06005iSXV20..ATM199806-200107

NO.2,ID=6.6

main96721-19017iSXV20..ATM199806-200107

NO.3,ID=16.8

89411CSENSOR, SPEED

main89411-33010iMCV20..ATM199806-200212

TOYOTA

sub89413-24010

main89413-24010iMCV20..ATM199806-200212

AISIN

main89413-24010iACV20..ATM200107-200212

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

9008010183

main90080-10183

9008011251

main90080-11251

9010505004

main90105-05004

9030111008

main90301-11008

9161160620

main91611-60620

9161160820

main91611-60820

15 parts on this diagram · 3 diagrams in section
