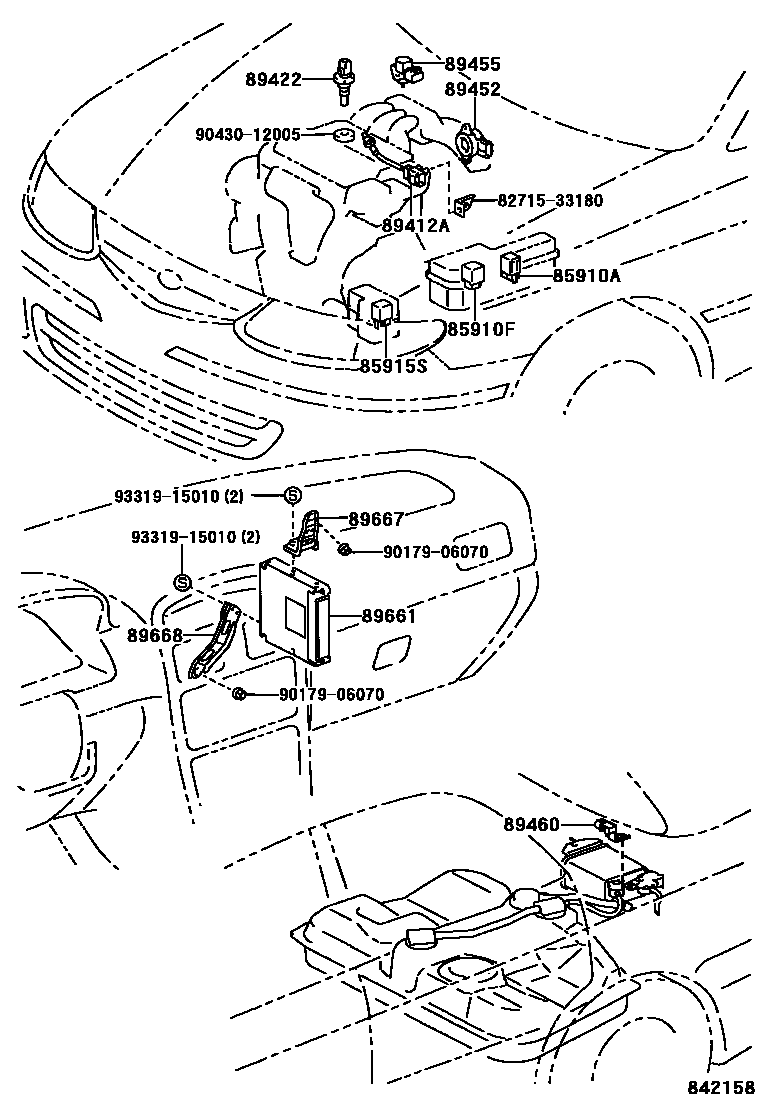

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90084-98031iMCV20,SXV20199806-200212

85910FRELAY, COMPUTER (FOR EFI)

main90084-98031iSXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND199806-200212

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90084-98031iMCV20..ATM..USA199806-200212

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-33050iMCV20199806-200212

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iACV20200107-200212

main89422-20010iSXV20199806-199908

main89422-35010iMCV20199806-200212

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06020iSXV20..CVT;MCV20..MTM..USA;MCV20,SXV20..ATM..CND199806-200107

CTS

main89452-06020iMCV20..ATM200107-200212

main89452-33030iMCV20,SXV20199806-200107

AISAN

main89452-33030iMCV20..MTM200107-200207

main89452-33040iMCV20199806-200005

TOYOTA

sub89452-33030

89455SENSOR, EGR VALVE POSITION

main89455-33020iMCV20199806-200212

89460SENSOR ASSY, VAPOR PRESSURE

main89460-06010iMCV20,SXV20..CP199908-200107

PART NUMBER LABEL=89460-06010

main89460-06040iMCV20,SXV20199806-199908

PART NUMBER LABEL=89460-06040

sub89460-06050

main89460-06050iMCV20,SXV20199806-199908

PART NUMBER LABEL=89460-06050

main89460-07030iACV20,MCV20199908-200212

PART NUMBER LABEL=89460-07030

89661COMPUTER, ENGINE CONTROL

main89661-06630iMCV20..CND;MCV20..ATM..USA199806-199908

W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06631

main89661-06640iMCV20..ATM..USA199806-199908

CALIFORNIA SPEC

sub89661-06641

main89661-06660iSXV20..MTM199806-199811

sub89661-06661

main89661-06661iSXV20..MTM199811-199908

main89661-06670iSXV20..ATM199806-199811

sub89661-06671

main89661-06671iSXV20..ATM199811-199908

main89661-06680iSXV20..MTM199806-199811

CALIFORNIA SPEC

sub89661-06681

main89661-06681iSXV20..MTM199811-199908

CALIFORNIA SPEC

sub89661-06682

main89661-06690iSXV20..ATM..USA199806-199811

CALIFORNIA SPEC

sub89661-06691

main89661-06691iSXV20..ATM..USA199811-199908

CALIFORNIA SPEC

main89661-06700iSXV20..MTM199806-199811

W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06701

main89661-06701iSXV20..MTM199811-199908

W(ENGINE IMMOBILIZER SYSTEM)

main89661-06710iSXV20..ATM199806-199811

W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06711

main89661-06711iSXV20..ATM199811-199908

W(ENGINE IMMOBILIZER SYSTEM)

main89661-06720iSXV20..MTM199806-199811

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06721

main89661-06721iSXV20..MTM199811-199908

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06722

main89661-06730iSXV20..ATM..USA199806-199811

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06731

main89661-06731iSXV20..ATM..USA199811-199908

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

main89661-06840iMCV20..MTM199908-200002

W(ENGINE IMMOBILIZER SYSTEM)

sub89661-06841

main89661-06840iMCV20..MTM199908-200002

W(ENGINE IMMOBILIZER SYSTEM),DENSO

sub89661-06841

main89661-06841iMCV20..ATM200002-200008

DENSO

main89661-06850iMCV20..ATM..USA199908-200002

CALIFORNIA SPEC

sub89661-06851

main89661-06851iMCV20..ATM..USA200002-200008

CALIFORNIA SPEC

main89661-0W110iMCV20..ATM199908-200002

W(ENGINE IMMOBILIZER SYSTEM),DELCO

sub89661-0W111

main89661-0W111iMCV20..ATM200002-200008

DELCO

main89661-0X060iMCV20200207-200212

main89661-0X080iACV20..MTM200207-200212

sub89661-0X081

main89661-0X090iACV20..CP..ATM200207-200212

sub89661-0X091

main89661-0X100iACV20..CVT200207-200212

sub89661-0X101

main89661-0X110iACV20..CP..ATM200207-200212

W(ENGINE IMMOBILIZER SYSTEM)

sub89661-0X111

main89666-06010iSXV20..MTM199908-200002

sub89666-06011

main89666-06011iSXV20..MTM200002-200008

main89666-06020iSXV20..ATM199908-200001

sub89666-06021

main89666-06021iSXV20..CP..ATM200001-200008

main89666-06030iSXV20..MTM199908-200002

CALIFORNIA SPEC

sub89666-06031

main89666-06031iSXV20..MTM200002-200006

CALIFORNIA SPEC

sub89666-06032

main89666-06032iSXV20..MTM200006-200008

CALIFORNIA SPEC

sub89666-06110

main89666-06040iSXV20..ATM..USA199908-200002

CALIFORNIA SPEC

sub89666-06041

main89666-06041iSXV20..CP..ATM..USA200002-200006

CALIFORNIA SPEC

sub89666-06042

main89666-06042iSXV20..CP..ATM..USA200006-200008

CALIFORNIA SPEC

sub89666-06120

main89666-06050iSXV20..MTM199908-200005

W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06051

main89666-06051iSXV20..MTM200005-200008

W(ENGINE IMMOBILIZER SYSTEM)

main89666-06060iSXV20..CP..ATM199908-200005

W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06061

main89666-06061iSXV20..CP..ATM200005-200008

W(ENGINE IMMOBILIZER SYSTEM)

main89666-06070iSXV20..MTM199908-200006

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06072

main89666-06072iSXV20..MTM200006-200008

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

main89666-06080iSXV20..ATM..USA199908-200005

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06081

main89666-06081iSXV20..CVT200005-200006

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06082

main89666-06081iSXV20..CVT200005-200006

W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06082

main89666-06082iSXV20..CP..ATM..USA200006-200008

W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06130

main89666-06082iSXV20..CVT200006-200008

CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06130

main89666-06110iSXV20..MTM200008-200107

sub89666-06111

main89666-06120iSXV20..CP..ATM200008-200107

sub89666-06121

main89666-06130iSXV20..CP..ATM200008-200107

W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06131

main89666-06160iSXV20..CVT200008-200107

main89666-06180iMCV20..ATM200008-200011

sub89666-06181

main89666-06181iMCV20..ATM200011-200104

sub89666-06182

main89666-06182iMCV20..ATM200104-200107

main89666-06190iMCV20..MTM200008-200011

sub89666-06191

main89666-06191iMCV20..MTM200011-200104

sub89666-06192

main89666-06192iMCV20..MTM200104-200107

main89666-06280iACV20..MTM200107-200207

sub89661-0X080

main89666-06290iACV20..CP..ATM200107-200207

sub89666-06291

main89666-06300iACV20..CVT200107-200207

sub89666-06301

main89666-06310iACV20..CP..ATM200107-200207

W(ENGINE IMMOBILIZER SYSTEM)

sub89666-06311

main89666-06320iMCV20..ATM200107-200207

sub89661-0X060

main89666-06330iMCV20..MTM200107-200207

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06050iSXV20..CVT;SXV20..MTM;MCV20,SXV20..ATM..CND199908-200107

DENSO

main89667-06050iMCV20,SXV20199806-200212

main89667-0W020iMCV20..ATM199908-200008

DELCO

main89667-0W030iACV20200107-200212

main89667-0W030iSXV20..CND199908-200107

W(ENGINE IMMOBILIZER SYSTEM)

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06050iMCV20,SXV20199806-200212

main89668-06050iMCV20..ATM199908-200008

DENSO

main89668-0W020iMCV20..ATM199908-200008

DELCO

main89668-0W030iSXV20..CND199908-200107

W(ENGINE IMMOBILIZER SYSTEM)

main89668-0W030iACV20200107-200212

8271533180BRACKET,WIRING HARNESS CLAMP

main82715-33180

9017906070

main90179-06070

9043012005

main90430-12005

9331915010

main93319-15010

15 parts on this diagram · 3 diagrams in section
