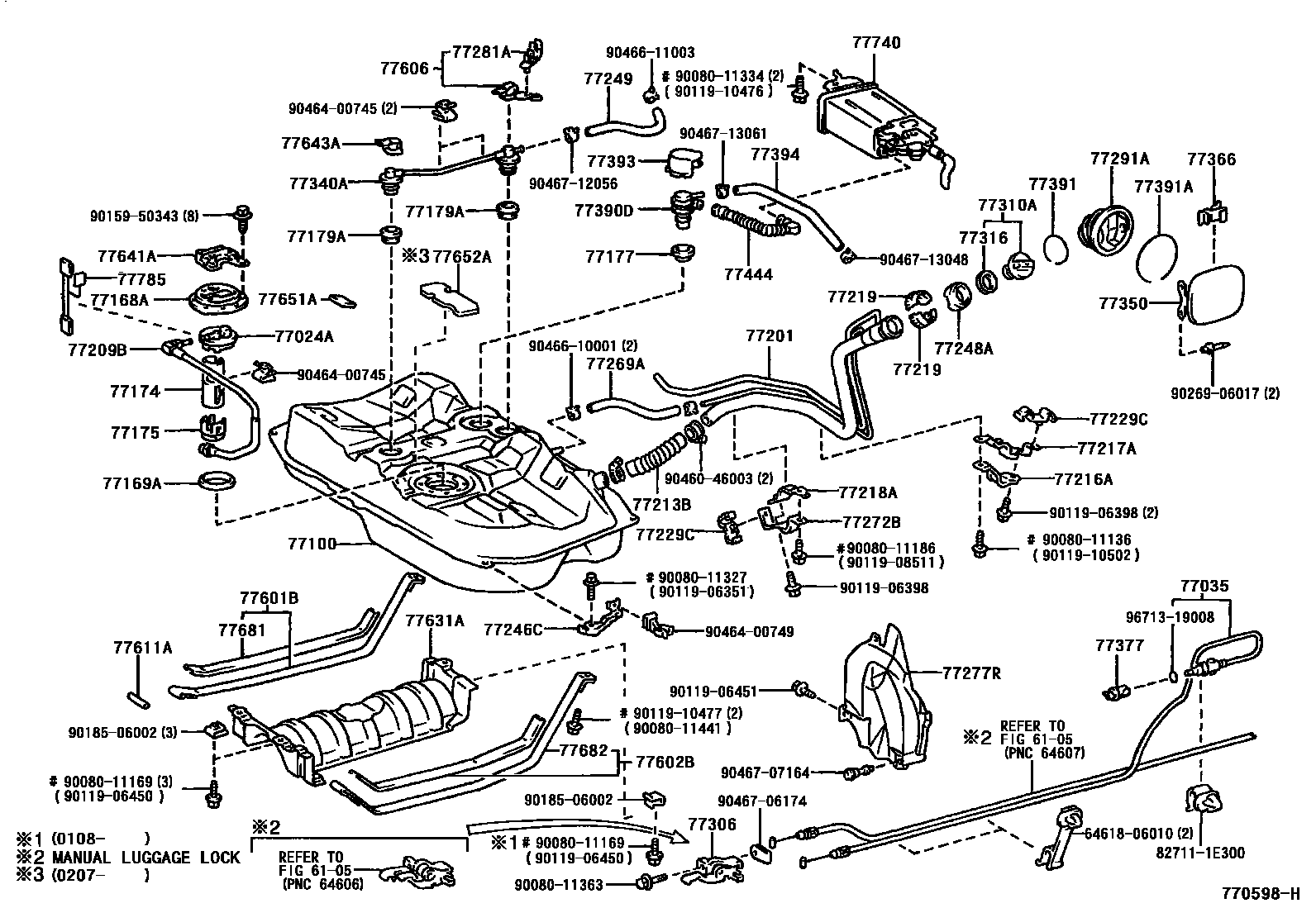

FUEL TANK & TUBE
6105
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77209BTUBE SUB-ASSY, FUEL PUMP
(L)
(J)
77213BHOSE, FUEL TANK TO FILLER PIPE
L=182
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77229CCLAMP, BREATHER TUBE
77246CSUPPORT, FUEL MAIN TUBE
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77249HOSE, FUEL EMISSION
sub95337-06030
77269AHOSE, FUEL TANK BREATHER
(J)
(L)
77272BSUPPORT, BREATHER TUBE, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
sub77310-48020
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77390DVALVE ASSY, FUEL TANK OVER FILL CHECK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77393PROTECTOR, CHECK VALVE
sub77393-52010
77394HOSE, VALVE TO FUEL FILLER PIPE
sub95337-08034
77444HOSE, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77643APROTECTOR, FUEL TANK, NO.3
sub77643-33030
77652ACUSHION, FUEL TANK, NO.2
sub77651-33020
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
6461806010CLAMP, LUGGAGE LOCK CONTROL CABLE
main64618-06010
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
9008011136
main90080-11136
9008011169
main90080-11169
9008011186
main90080-11186
9008011327
main90080-11327
9008011334
main90080-11334
9008011363
main90080-11363
9008011441
main90080-11441
9011906351
main90119-06351
9011906398
main90119-06398
9011906450
main90119-06450
9011906451
main90119-06451
9011908511
main90119-08511
9011910476
main90119-10476
9011910477
main90119-10477
9011910502
main90119-10502
9015950343
main90159-50343
9018506002
main90185-06002
9026906017
main90269-06017
9046046003
main90460-46003
9046400745
main90464-00745
9046400749
main90464-00749
9046610001
main90466-10001
9046611003
main90466-11003
9046706174
main90467-06174
9046707164
main90467-07164
9046712056
main90467-12056
9046713048
main90467-13048
9046713061
main90467-13061
9671319008
main96713-19008
83 parts on this diagram · 2 diagrams in section
