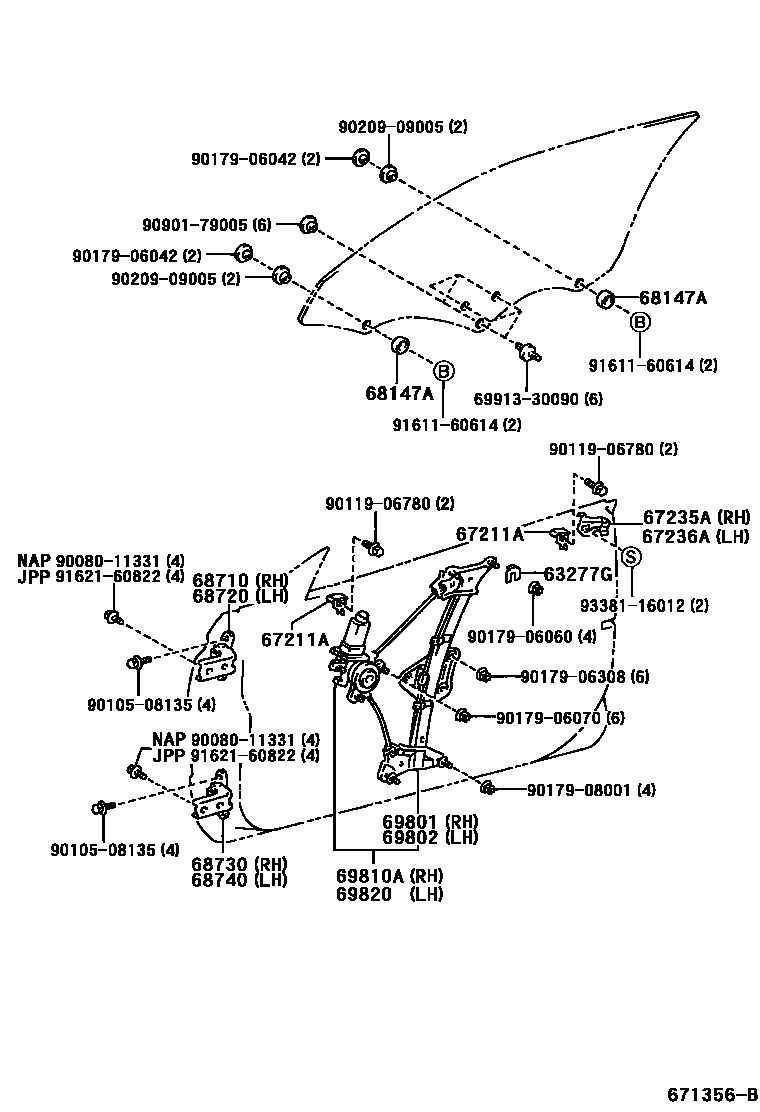

FRONT DOOR WINDOW REGULATOR & HINGE

63277GSHIM, WINDOW REGULATOR

main63277-20050iACV20,MCV20,SXV20199806-200212

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-22050iACV20,MCV20,SXV20199806-200212

sub67211-24020

67235ASTABILIZER, DOOR GLASS FEMALE, RH

main67235-33011iACV20,MCV20,SXV20199806-200212

67236ASTABILIZER, DOOR GLASS FEMALE, LH

main67236-33011iACV20,MCV20,SXV20199806-200212

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-30020iACV20,MCV20,SXV20199806-200212

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-06010iACV20,MCV20,SXV20199806-200212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-06010iACV20,MCV20,SXV20199806-200212

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-06010iACV20,MCV20,SXV20199806-200212

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-06010iACV20,MCV20,SXV20199806-200212

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06020iACV20,MCV20,SXV20199806-200212

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06020iACV20,MCV20,SXV20199806-200212

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-06030iMCV20,SXV20199806-199912

sub69810-06031

main69810-06031iACV20,MCV20,SXV20199912-200212

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-06030iMCV20,SXV20199806-199912

sub69820-06031

main69820-06031iACV20,MCV20,SXV20199912-200212

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9008011331

main90080-11331

9010508135

main90105-08135

9011906780

main90119-06780

9017906042

main90179-06042

9017906060

main90179-06060

9017906070

main90179-06070

9017906308

main90179-06308

9017908001

main90179-08001

9020909005

main90209-09005

9090179005

main90901-79005

9161160614

main91611-60614

9162160822

main91621-60822

9338116012

main93381-16012

27 parts on this diagram · 1 diagram in section
