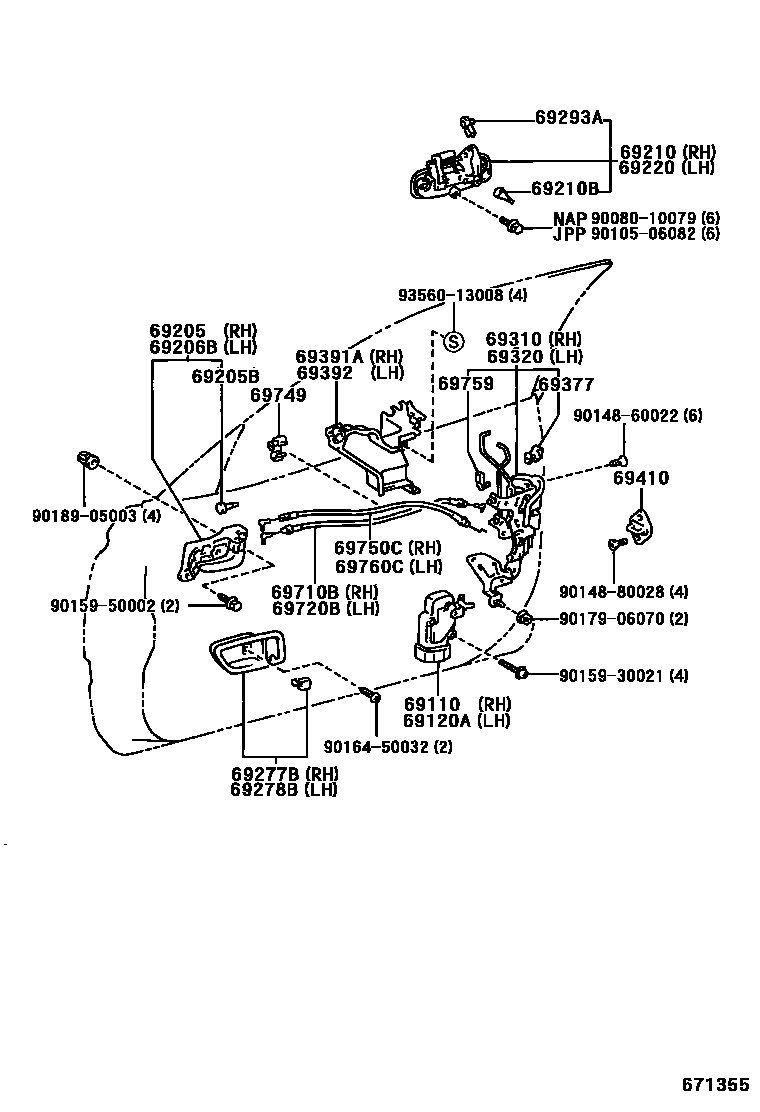

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SU.WHITE PM,051
SILVER ME.OP.,1C4
SILVER ME.,1C8
BLACK M,204
BLACK MC.,209
CHAMPAGNE M.M.,3M5
RED MC.,3N5
COPPER M.M.,4P6
BEIGE ME.,4Q5
GREEN MC.,6R3
DK.GREEN M.M.,6S3
BLUE M.M.,8M8
DK.BLUE M.M.,8P4
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SU.WHITE PM,051
SILVER ME.OP.,1C4
SILVER ME.,1C8
BLACK M,204
BLACK MC.,209
CHAMPAGNE M.M.,3M5
RED MC.,3N5
COPPER M.M.,4P6
BEIGE ME.,4Q5
GREEN MC.,6R3
DK.GREEN M.M.,6S3
BLUE M.M.,8M8
DK.BLUE M.M.,8P4
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
NATURAL
YELLOW
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69391ACOVER, FRONT DOOR LOCK, OUTER RH
69392COVER, FRONT DOOR LOCK, OUTER LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
YELLOW
BROWN
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9008010079
main90080-10079
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015930021
main90159-30021
9015950002
main90159-50002
9016450032
main90164-50032
9017906070
main90179-06070
9018905003
main90189-05003
9356013008
main93560-13008
33 parts on this diagram · 1 diagram in section
