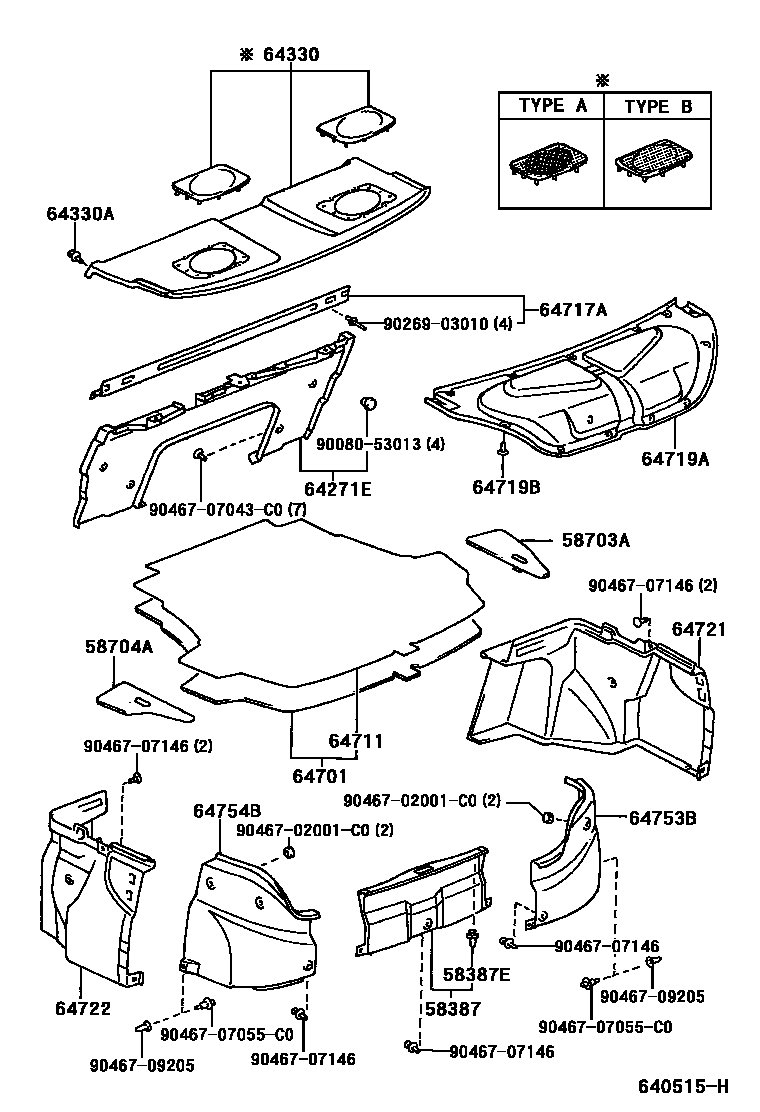

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
TYPE A:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),BLACK,TRIM1#
TYPE A:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),SANDALWOOD,TRIM0#
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#
TYPE A:REFER TO ILLUSTRATION,SANDALWOOD,TRIM0#
TYPE B:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),BLACK,TRIM1#
TYPE B:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),SANDALWOOD,TRIM0#
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#
TYPE B:REFER TO ILLUSTRATION,SANDALWOOD,TRIM0#
TYPE A:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),BLACK,TRIM1#
TYPE A:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),SANDALWOOD,TRIM0#
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#
TYPE A:REFER TO ILLUSTRATION,SANDALWOOD,TRIM0#
TYPE B:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),BLACK,TRIM1#
TYPE B:REFER TO ILLUSTRATION & W(HIGH MOUNT STOP LAMP BULB TYPE),SANDALWOOD,TRIM0#
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#
TYPE B:REFER TO ILLUSTRATION,SANDALWOOD,TRIM0#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
W(POWER LUGGAGE COMPARTMENT DOOR OPENER),BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
W(POWER LUGGAGE COMPARTMENT DOOR OPENER)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#
64753BPLATE, REAR FLOOR FINISH SIDE, RH
64754BPLATE, REAR FLOOR FINISH SIDE, LH
9008053013
main90080-53013
9026903010
main90269-03010
9046702001C0
main90467-02001C0
9046707043C0
main90467-07043C0
9046707055C0
main90467-07055C0
9046707146
main90467-07146
9046709205
main90467-09205
23 parts on this diagram · 2 diagrams in section
