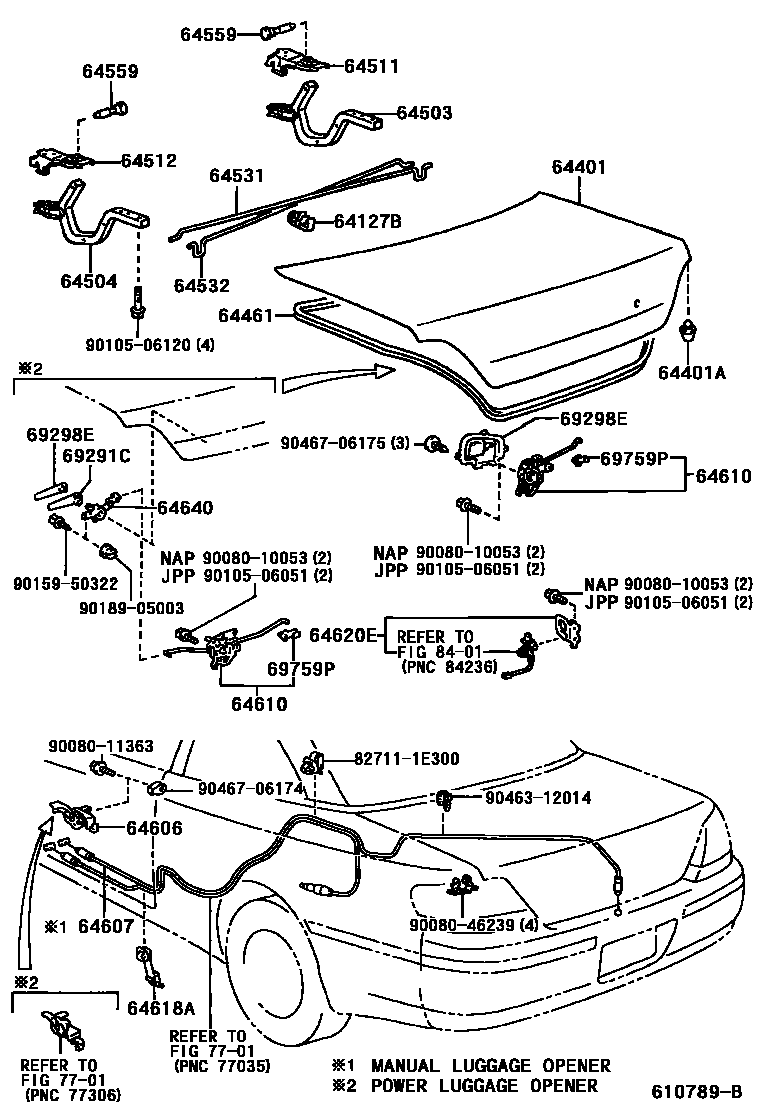

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W(REAR SPOILER)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W(REAR SPOILER)
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W(POWER LUGGAGE COMPARTMENT DOOR OPENER)
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64640OPENER ASSY, LUGGAGE DOOR LOCK
69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE
69298ECOVER, LUGGAGE COMPONENT DOOR INSIDE HANDLE
W(POWER LUGGAGE COMPARTMENT DOOR OPENER)
69759PSNAP, DOOR LOCK CONTROL LINK
W(POWER LUGGAGE COMPARTMENT DOOR OPENER)
7701
8401
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
9008010053
main90080-10053
9008011363
main90080-11363
9008046239
main90080-46239
9010506051
main90105-06051
9010506120
main90105-06120
9015950322
main90159-50322
9018905003
main90189-05003
9046312014
main90463-12014
9046706174
main90467-06174
9046706175
main90467-06175
33 parts on this diagram · 2 diagrams in section
