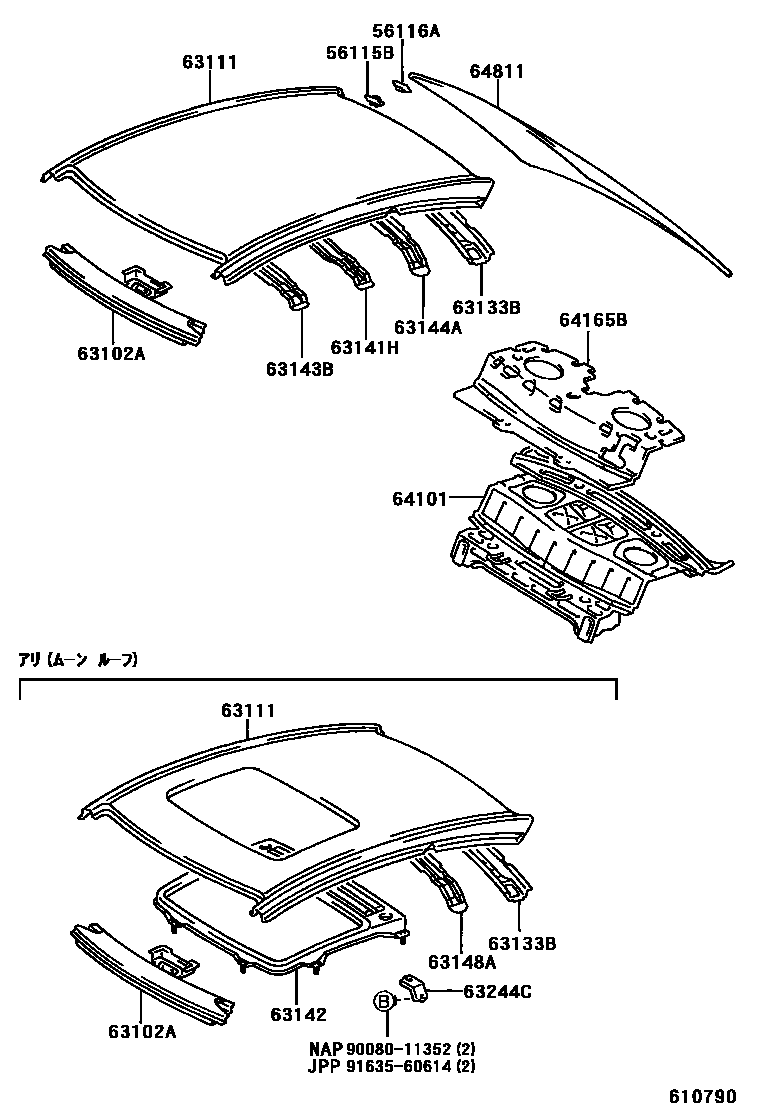

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF) 0003 1 0004 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010iACV20,MCV20..CP199806-200212

56116ASPACER, WINDSHIELD GLASS

main56116-22050iACV20,MCV20,SXV20..CP199806-200212

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-06040iACV20,MCV20,SXV20..CP199806-200212

main63102-06050iACV20,MCV20,SXV20..CP199806-200212

W(MOON ROOF)

63111PANEL, ROOF

main63111-06260iACV20,MCV20199806-200212

main63111-06270iACV20,MCV20,SXV20..CP199806-200212

W(MOON ROOF)

63133BFRAME, BACK WINDOW

main63133-06010iACV20,MCV20,SXV20199806-200212

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-06020iACV20,MCV20,SXV20199806-200212

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-06900iACV20,MCV20,SXV20..CP199806-200212

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-06010iACV20,MCV20199806-200212

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06020iACV20,MCV20199806-200212

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06020iACV20,MCV20,SXV20..CP199806-200212

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63244-06010iACV20,MCV20..CP199806-200212

64101PANEL SUB-ASSY, UPPER BACK

main64101-06050iACV20,MCV20,SXV20..CP199806-200212

main64101-33250iACV20,MCV20,SXV20..CVT200002-200212

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06010iACV20,MCV20,SXV20..CP199806-200212

64811GLASS, BACK WINDOW

main64811-06100iACV20,MCV20,SXV20..CP199806-200212

*TT,T=3.5,GREEN

main64811-06110iACV20,MCV20..CP199806-200212

*TT,T=3.5,GREEN,W(6 SPEAKER)

main64811-06120iACV20,MCV20..CP199806-200212

*TT,T=3.5,GREEN,W(REAR SPOILER)

main64811-06130iACV20,MCV20,SXV20..CP199806-200212

*TT,T=3.5,GREEN,W(6 SPEAKER & REAR SPOILER)

9008011352

main90080-11352

9163560614

main91635-60614

16 parts on this diagram · 4 diagrams in section
