SIDE MEMBER
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131CPILLAR, FRONT BODY, OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61167EBRACKET, NO.6 PILLAR OUTER
61168CBRACKET, NO.6 PILLAR OUTER
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613EPANEL, QUARTER, INNER RH
61614AEXTENSION, QUARTER PANEL, REAR LH
61614EPANEL, QUARTER, INNER LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61671CPALTE, QUARTER PANEL, UPPER NO.1
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
sub61824-12110
61848ARETAINER, QUARTER PANEL, LH
62165SHEET, FRONT BODY PILLAR LOWER, OUTER RH
62939ASILENCER, QUARTER VENT
64125ABRACKET, UPPER BACK PANEL, RH
64126ABRACKET, UPPER BACK PANEL, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
66243CPROTECTOR, REAR BODY, NO.1
67841CCOVER, QUARTER SERVICE HOLE, RH
67842CCOVER, QUARTER SERVICE HOLE, LH
9008011396
main90080-11396
9017908086
main90179-08086
9033320001
main90333-20001
9033330008
main90333-30008
9033340001
main90333-40001
9054110144
main90541-10144
9095001006
main90950-01006
9095001557
main90950-01557
9095001753
main90950-01753
9095001872
main90950-01872
9095001911
main90950-01911
9165160816
main91651-60816

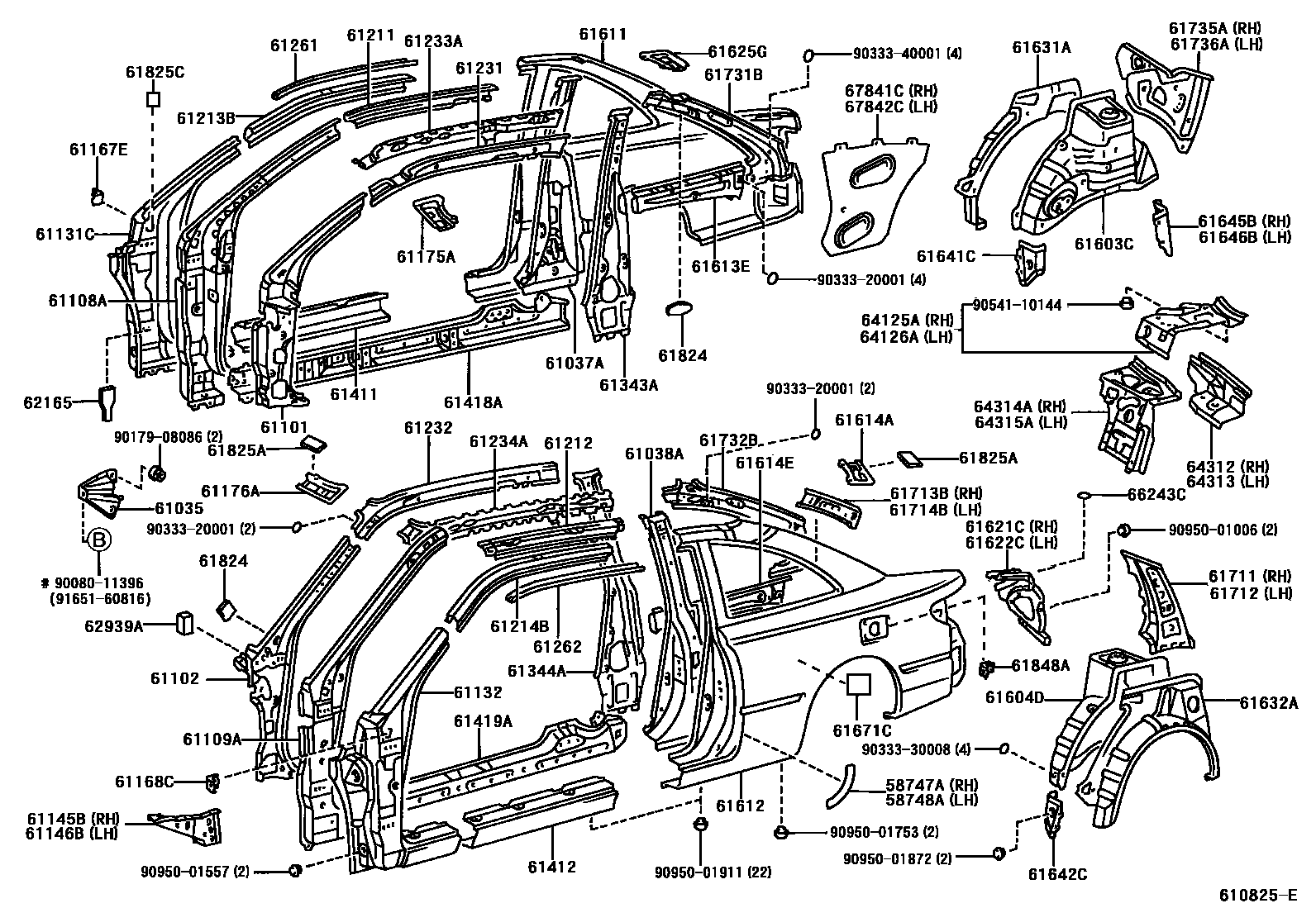

85 parts on this diagram · 2 diagrams in section
