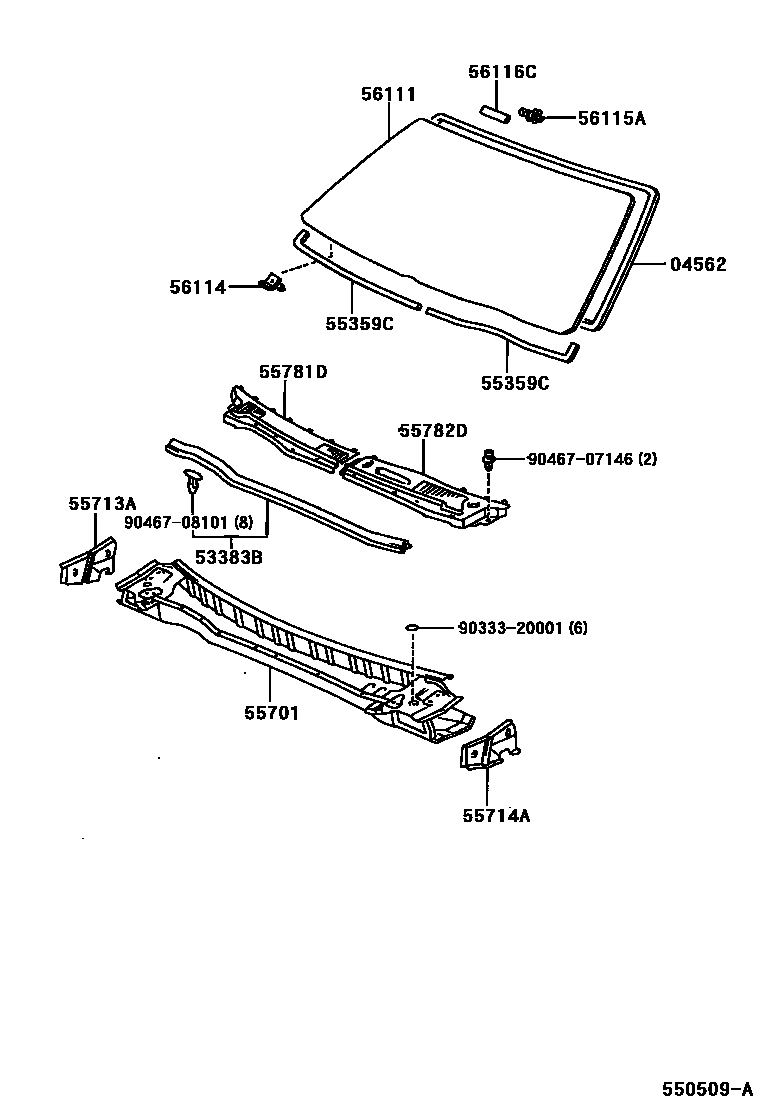

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main56117-06010iMCV20,SXV20199806-200102

L=3430

sub90998-91001

main56118-06010iMCV20,SXV20199806-200102

L=592

sub90998-91002

main90998-91001iACV20,MCV20,SXV20200102-200204

L=3500

sub90998-91004

main90998-91002iACV20,MCV20,SXV20200102-200204

L=750

sub90998-91003

main90998-91003iACV20,MCV20200204-200212

L=750

main90998-91004iACV20,MCV20200204-200212

L=3500

53383BSEAL, HOOD TO COWL TOP

main53383-06020iACV20,MCV20199806-200212

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-06020iACV20,MCV20199806-200212

55701PANEL SUB-ASSY, COWL

main55700-06100iACV20,MCV20,SXV20..ATM199806-200212

main55700-06120iACV20,MCV20,SXV20..MTM199806-200212

55713APANEL, COWL TOP SIDE, RH

main55713-06030iACV20,MCV20,SXV20199806-200212

55714APANEL, COWL TOP SIDE, LH

main55714-06030iACV20,MCV20,SXV20199806-200212

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-06010iACV20,MCV20,SXV20199806-200212

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-06010iACV20,MCV20,SXV20199806-200212

56111GLASS, WINDSHIELD

main56101-06010iACV20,MCV20,SXV20199806-200212

*TL,T=5.0,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-33040iACV20,MCV20,SXV20199806-200212

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iACV20,MCV20,SXV20199806-200212

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACV20,MCV20,SXV20199806-200212

9033320001

main90333-20001

9046707146

main90467-07146

9046708101

main90467-08101

15 parts on this diagram · 1 diagram in section
