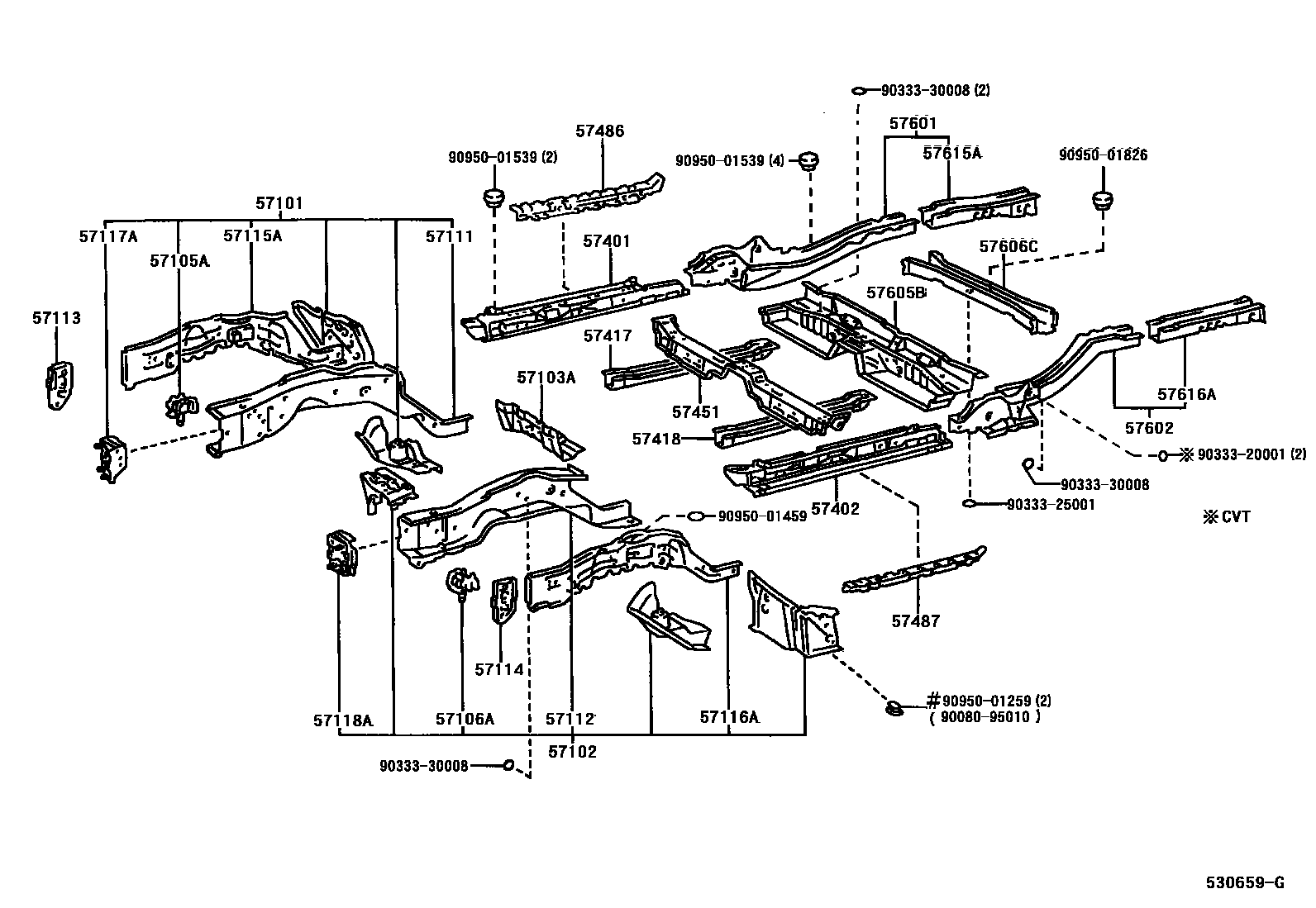

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06030iACV20,MCV20,SXV20..CVT200002-200212

main57101-06040iACV20,MCV20..CP199806-200212

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06040iMCV20,SXV20..CVT200002-200107

sub57102-06041

main57102-06041iACV20,MCV20..CVT200107-200212

main57102-06050iMCV20,SXV20199806-199809

sub57102-06051

main57102-06051iMCV20,SXV20..CP199809-200107

sub57102-06041

main57102-06052iACV20,MCV20..CP200107-200212

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06010iACV20,MCV20,SXV20199806-200212

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-33020iACV20,MCV20,SXV20199806-200212

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-33020iACV20,MCV20,SXV20199806-200212

57111MEMBER, FRONT SIDE, RH

main57111-06013iACV20,MCV20,SXV20199806-200212

57112MEMBER, FRONT SIDE, LH

main57112-06023iMCV20,SXV20199806-199809

sub57112-06024

main57112-06024iMCV20,SXV20199809-199901

sub57112-06025

main57112-06025iMCV20,SXV20199901-200107

sub57112-06026

main57112-06026iACV20,MCV20200107-200212

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-33030iACV20,MCV20,SXV20199806-200212

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-33030iACV20,MCV20,SXV20199806-200212

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06010iACV20,MCV20,SXV20199806-200212

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06010iACV20,MCV20,SXV20199806-200212

(L)

main57116-33010iACV20,MCV20,SXV20199806-200212

(J)

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-06020iACV20,MCV20,SXV20199806-200212

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06020iACV20,MCV20199806-200212

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57411-06040iACV20,MCV20199806-200212

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57412-06040iACV20,MCV20,SXV20199806-200212

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57419-06900iACV20,MCV20199806-200212

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57419-06901iACV20,MCV20,SXV20199806-200212

57451MEMBER, FRONT FLOOR CROSS

main57451-06900iACV20,MCV20,SXV20199806-200212

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-33050iACV20,MCV20,SXV20..CP199806-200212

main57486-33060iACV20,MCV20,SXV20..CVT200002-200212

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-33050iACV20,MCV20,SXV20..CP199806-200212

main57487-33060iACV20,MCV20,SXV20..CVT200002-200212

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06120iACV20,MCV20,SXV20199806-200207

sub57601-06121

main57601-06121iACV20,MCV20200207-200212

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06080iACV20,MCV20,SXV20199806-200207

sub57602-06081

main57602-06081iACV20,MCV20200207-200212

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06040iACV20,MCV20,SXV20199806-200212

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06022iACV20,MCV20,SXV20199806-200212

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06901iACV20,MCV20,SXV20199806-200212

sub57615-06931

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06902iACV20,MCV20,SXV20199806-200212

sub57616-06903

9008095010

main90080-95010

9033320001

main90333-20001

9033325001

main90333-25001

9033330008

main90333-30008

9095001259

main90950-01259

9095001459

main90950-01459

9095001539

main90950-01539

9095001826

main90950-01826

34 parts on this diagram · 2 diagrams in section
