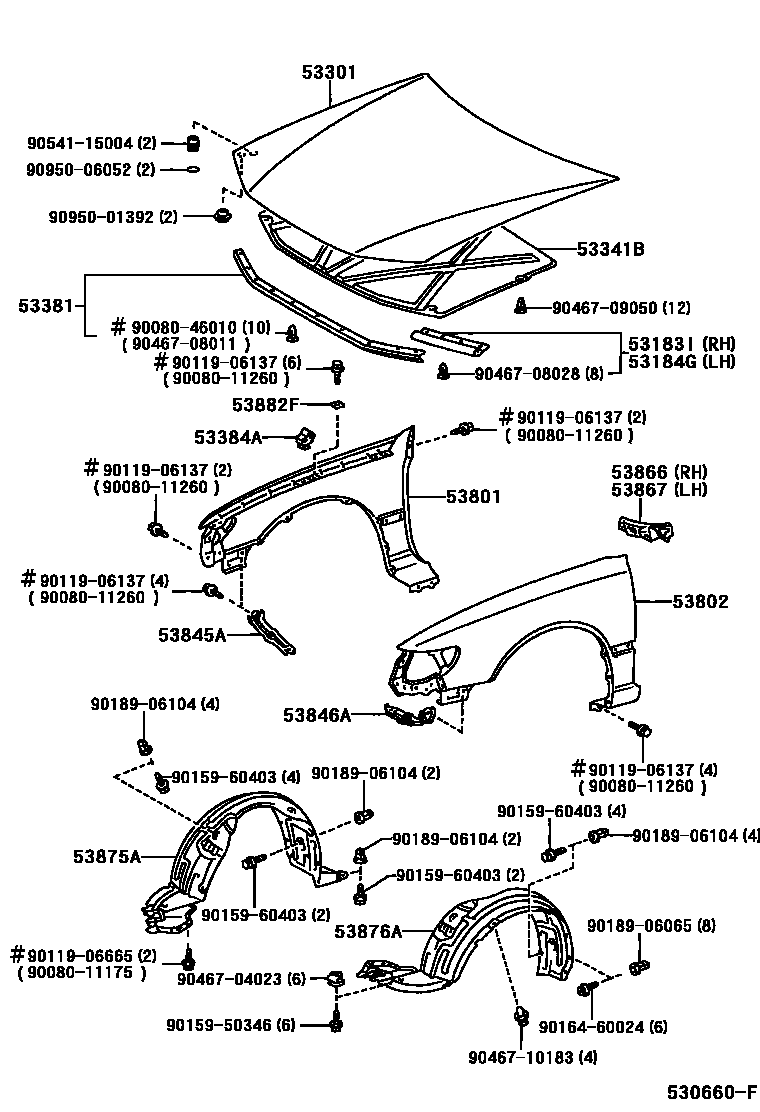

HOOD & FRONT FENDER
53183ISEAL, HEADLAMP COVER, RH
53184GSEAL, HEADLAMP COVER, LH
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53384ABUMPER, FENDER TO HOOD
sub53384-33010
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
9008011175
main90080-11175
9008011260
main90080-11260
9008046010
main90080-46010
9011906137
main90119-06137
9011906665
main90119-06665
9015950346
main90159-50346
9015960403
main90159-60403
9016460024
main90164-60024
9018906065
main90189-06065
9018906104
main90189-06104
9046704023
main90467-04023
9046708011
main90467-08011
9046708028
main90467-08028
9046709050
main90467-09050
9046710183
main90467-10183
9054115004
main90541-15004
9095001392
main90950-01392
9095006052
main90950-06052
33 parts on this diagram · 1 diagram in section
