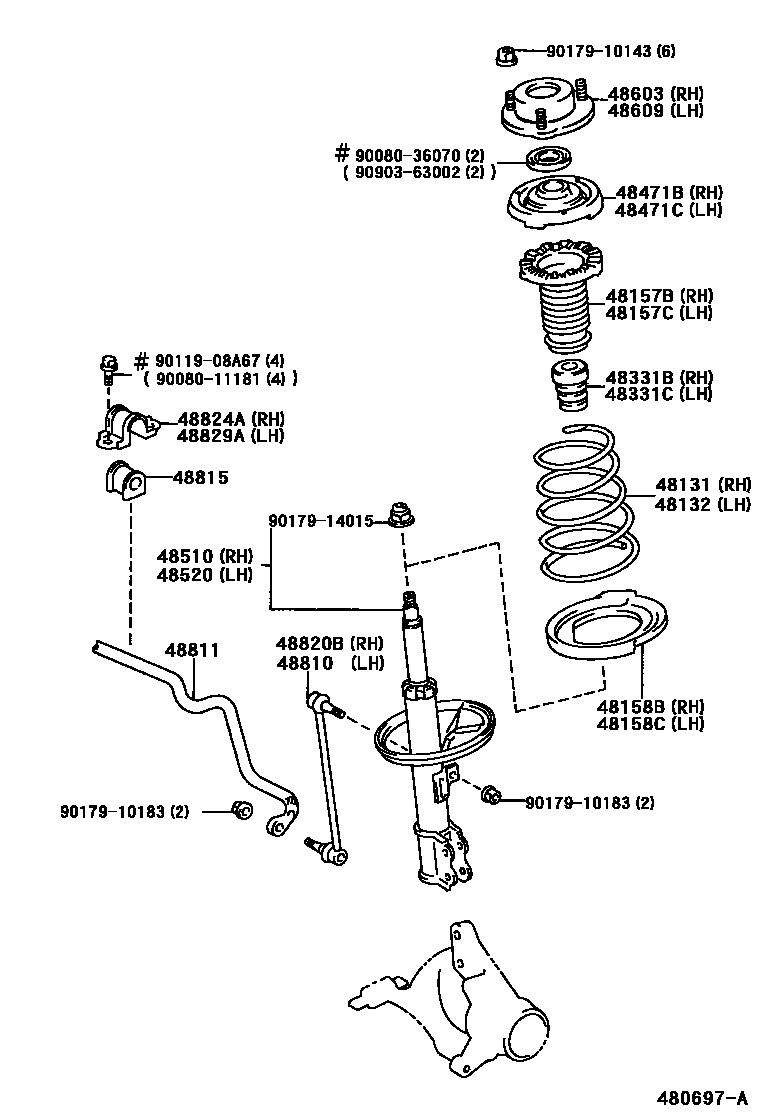

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=367.0
L=379.0
L=390.9
L=395.7
L=387.7
L=383.3
L=391.0
L=395.5
L=387.5
48132SPRING, FRONT COIL, LH
L=367.0
L=379.0
L=390.9
L=395.7
L=387.7
L=383.3
L=391.0
L=395.5
L=387.5
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
sub48824-33020
48829ABRACKET, FRONT STABILIZER, NO.1 LH
sub48824-33020
9008011181
main90080-11181
9008036070
main90080-36070
9011908A67
main90119-08A67
9017910143
main90179-10143
9017910183
main90179-10183
9017914015
main90179-14015
9090363002
main90903-63002
27 parts on this diagram · 1 diagram in section
