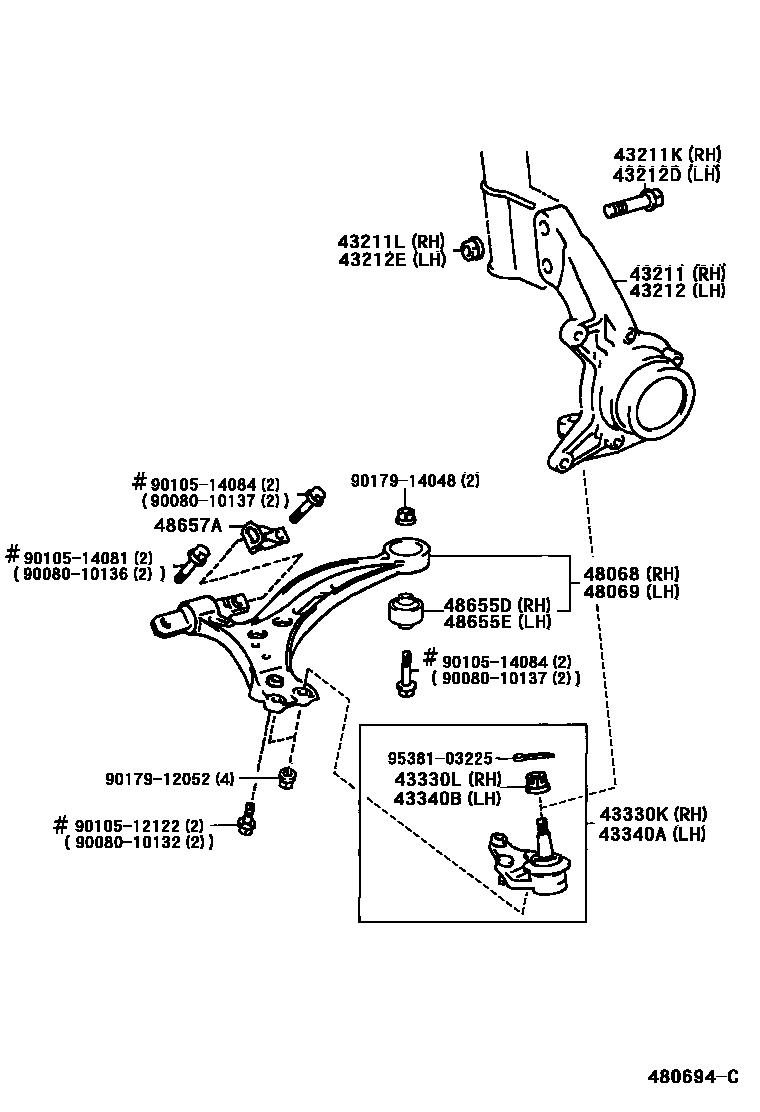

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
(J)
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=17
OD=15.9
OD=15
OD=14
OD=17
OD=15.9
OD=15
OD=14
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
(J)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=17
OD=15.9
OD=15
OD=14
OD=17
OD=15.9
OD=15
OD=14
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
48657ASTOPPER, FRONT LOWER ARM BUSH
9008010132
main90080-10132
9008010136
main90080-10136
9008010137
main90080-10137
9010512122
main90105-12122
9010514081
main90105-14081
9010514084
main90105-14084
9017912052
main90179-12052
9017914048
main90179-14048
9538103225
main95381-03225
24 parts on this diagram · 1 diagram in section
