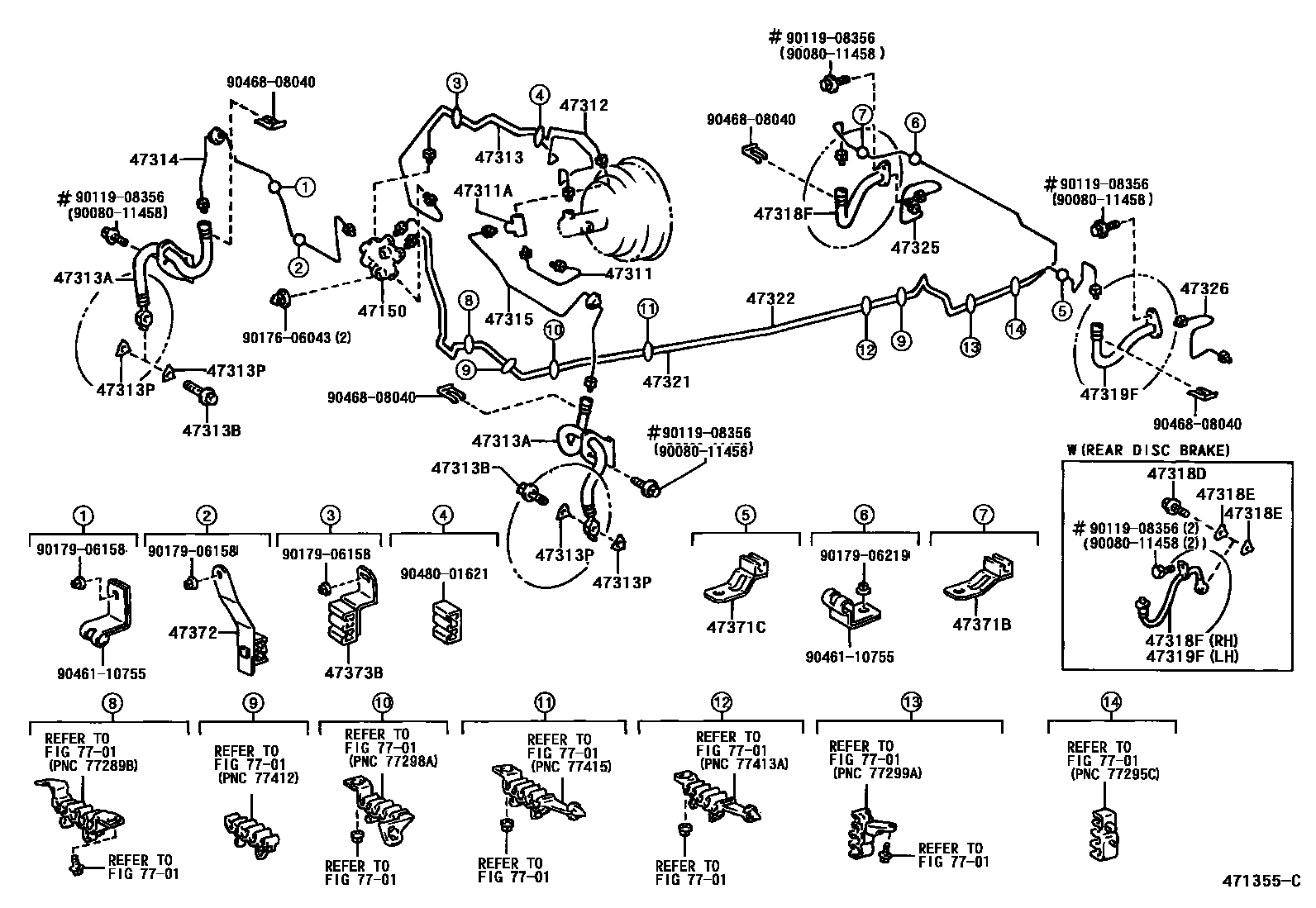

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
W(ABS)
47311TUBE, FRONT BRAKE, NO.1
(L)
(J)
W(TRACTION CONTROL)
47311AWAY(FOR FRONT BRAKE TUBE)
W(ABS)
W(TRACTION CONTROL)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
47318TUBE, FRONT BRAKE, NO.8
W(ABS)
W(TRACTION CONTROL)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319TUBE, FRONT BRAKE, NO.9
W(ABS)
W(TRACTION CONTROL)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47372CLAMP, BRAKE TUBE, NO.2
W(TRACTION CONTROL)
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
7701
9008011458
main90080-11458
9011908356
main90119-08356
9017606043
main90176-06043
9017906158
main90179-06158
9017906219
main90179-06219
9046110755
main90461-10755
9046808040
main90468-08040
9048001621
main90480-01621
33 parts on this diagram · 5 diagrams in section
