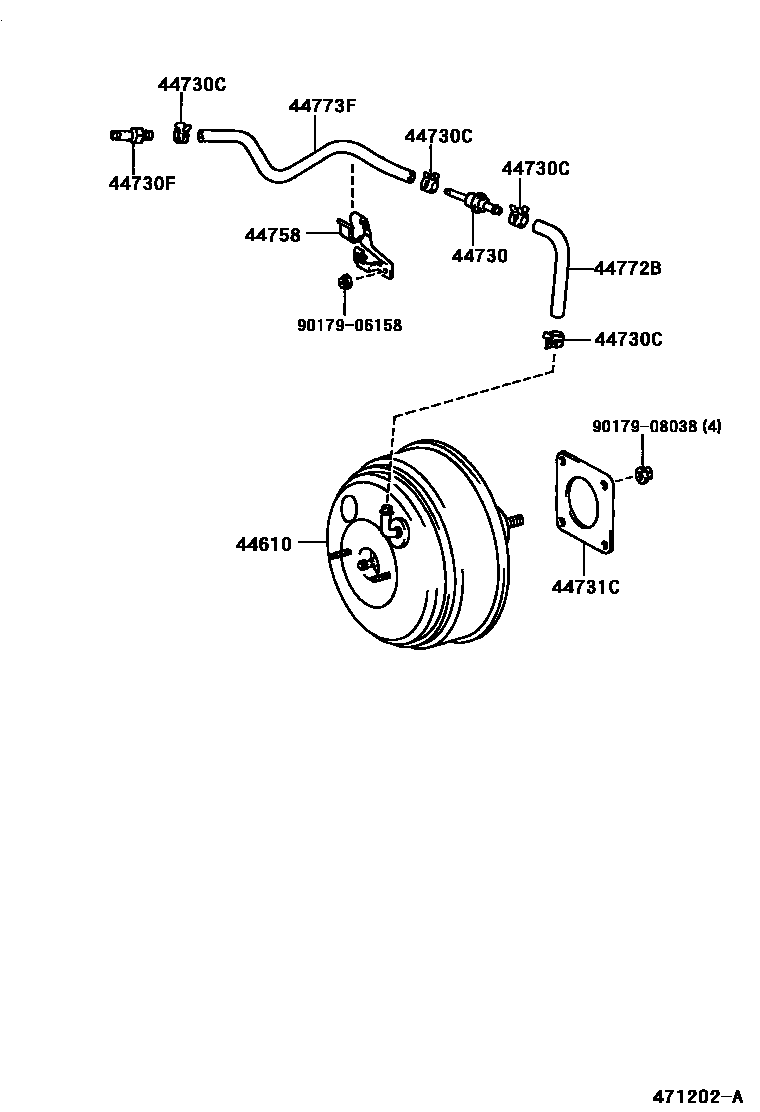

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-06130iMCV20,SXV20199806-199908

main44610-06150iMCV20..ATM199806-199908

W(TRACTION CONTROL)

main44610-06190iACV20,MCV20199908-200212

main44610-06190iACV20,MCV20,SXV20200006-200205

(L)

main44610-06200iMCV20..ATM199908-200212

W(TRACTION CONTROL)

main44610-06200iMCV20..ATM200006-200205

W(TRACTION CONTROL),(L)

main44610-33600iACV20,MCV20,SXV20200006-200205

(J)

sub44610-06190

main44610-33610iMCV20..ATM200006-200205

W(TRACTION CONTROL),(J)

sub44610-06200

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iACV20,MCV20,SXV20199806-200212

44730CCLIP(FOR VACUUM HOSE)

main96134-51500iACV20,MCV20,SXV20199806-200212

sub96133-41500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51076iMCV20199806-200212

main90404-51319iSXV20199806-200107

44731CBRACKET, BRAKE BOOSTER

main44731-33010iACV20,MCV20,SXV20199806-200212

44758BRACKET, VACUUM CHECK VALVE

main44758-33020iMCV20199806-200212

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06020iACV20,SXV20199806-200212

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06010iMCV20199806-200212

main44772-07010iACV20,SXV20199806-200212

44773FHOSE, UNION TO CHECK VALVE

main44773-06020iMCV20199806-200212

main44774-06010iSXV20199806-200107

9017906158

main90179-06158

9017908038

main90179-08038

11 parts on this diagram · 3 diagrams in section
