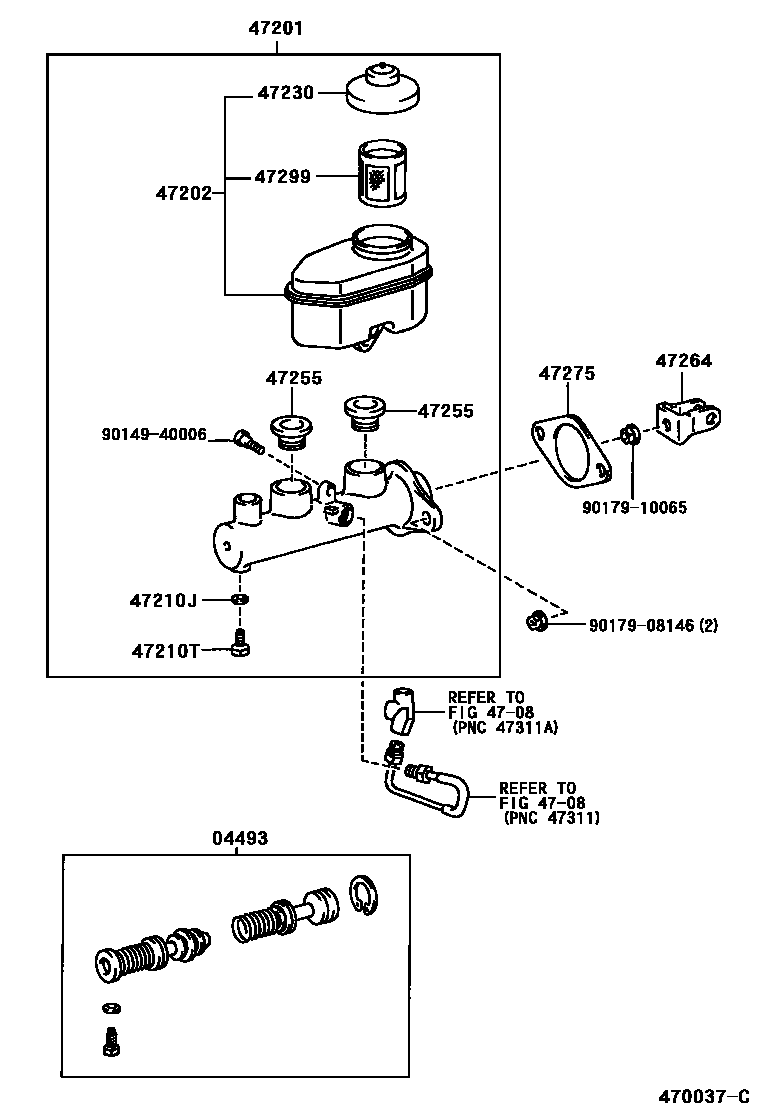

BRAKE MASTER CYLINDER

0001 1 0002 1W(TRACTION CONTROL)

04493CYLINDER KIT, BRAKE MASTER

main04493-07010iSXV20..USA199812-199908

main04493-08010iMCV20,SXV20199806-199812

main04493-08010iMCV20;SXV20..CND199812-199908

W(ABS)

main04493-21010iMCV20..ATM199908-200212

W(TRACTION CONTROL)

main04493-2B010iACV20,SXV20..USA199908-200212

W(ABS)

main04493-2B010iMCV20;ACV20,SXV20..CND199908-200212

main04493-33070iMCV20..ATM199806-199908

W(TRACTION CONTROL)

main04493-44010iACV20,SXV20..USA199908-200212

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-07010iSXV20..USA199812-199908

main47201-07020iMCV20,SXV20199806-199812

main47201-07020iMCV20;SXV20..CND199812-199908

W(ABS)

main47201-33100iMCV20..ATM199806-199908

W(TRACTION CONTROL)

main47201-33191iACV20,SXV20..USA199908-200212

main47201-33201iMCV20;ACV20..CND199908-200212

main47201-33201iACV20,SXV20..USA199908-200212

W(ABS)

main47201-33210iMCV20..ATM199908-200212

W(TRACTION CONTROL)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06011iMCV20,SXV20199806-199908

main47220-33011iMCV20..ATM199806-199908

W(TRACTION CONTROL)

main47220-33011iACV20,MCV20,SXV20199908-200212

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iACV20,SXV20..USA199908-200212

W(ABS)

main90029-43001iMCV20;ACV20,SXV20..CND199908-200212

main90430-06104iACV20,SXV20..USA199806-200212

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACV20,MCV20,SXV20199806-200212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iACV20,MCV20,SXV20199806-200212

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iMCV20,SXV20199806-199908

main47255-16010iMCV20..ATM199806-199908

W(TRACTION CONTROL)

main47255-16010iACV20,MCV20,SXV20199908-200212

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-33010iACV20,MCV20,SXV20199806-200212

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iACV20,MCV20,SXV20199806-200212

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iACV20,MCV20,SXV20199806-200212

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
