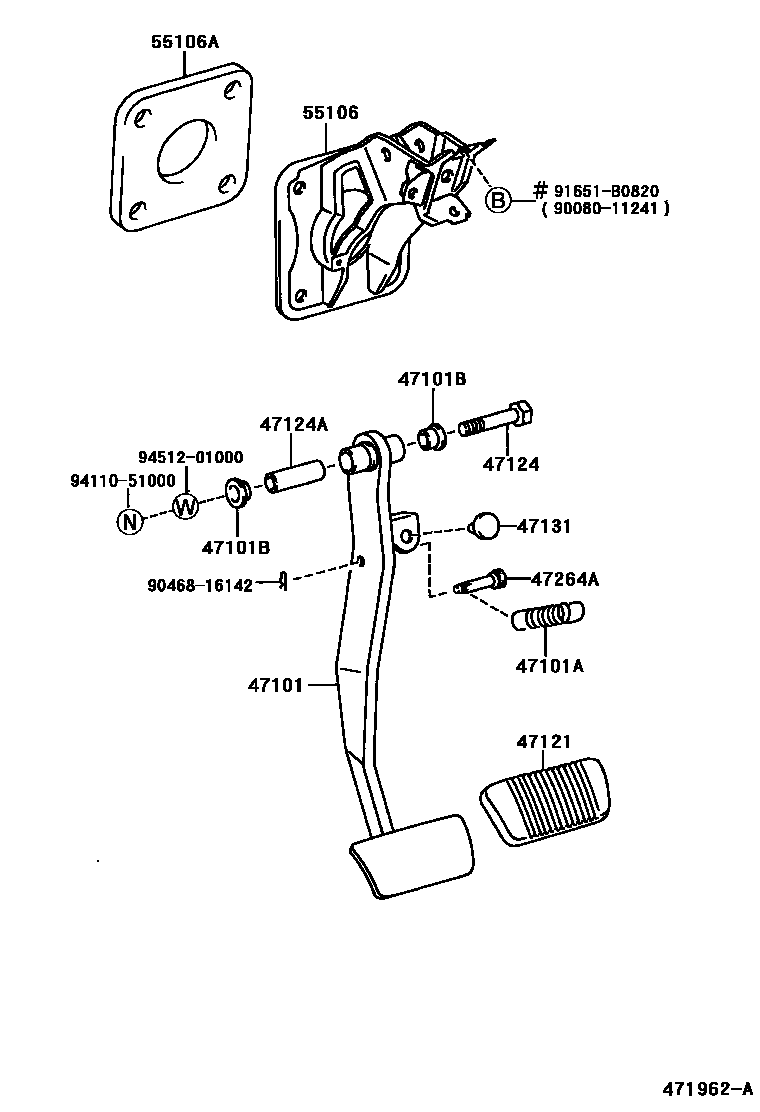

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-06010iACV20,MCV20,SXV20..MTM199806-200212

main47101-06020iACV20,MCV20,SXV20..ATM199806-200212

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iACV20,MCV20,SXV20199806-200212

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACV20,MCV20,SXV20199806-200212

47121PAD, BRAKE PEDAL

main31321-14020iACV20,MCV20,SXV20..MTM199806-200212

main47121-AC010iACV20,MCV20,SXV20..ATM199806-200212

sub47121-14010

47124SHAFT, BRAKE PEDAL

main90080-10100iACV20,MCV20199908-200212

(L)

main90101-10039iACV20,MCV20,SXV20199908-200212

(J)

main90101-10039iMCV20,SXV20199806-199908

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACV20,MCV20,SXV20199806-200212

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV20,MCV20,SXV20199806-200212

47264APIN(FOR PUSH ROD)

main47148-33010iACV20,MCV20,SXV20199806-200109

sub47148-33011

main47148-33011iACV20,MCV20200109-200212

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-06020iACV20,MCV20,SXV20199806-200212

55106ASEAL, DASH PANEL

main55259-20010iACV20,MCV20,SXV20199806-200212

9008011241

main90080-11241

9046816142

main90468-16142

91651B0820

main91651-B0820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
