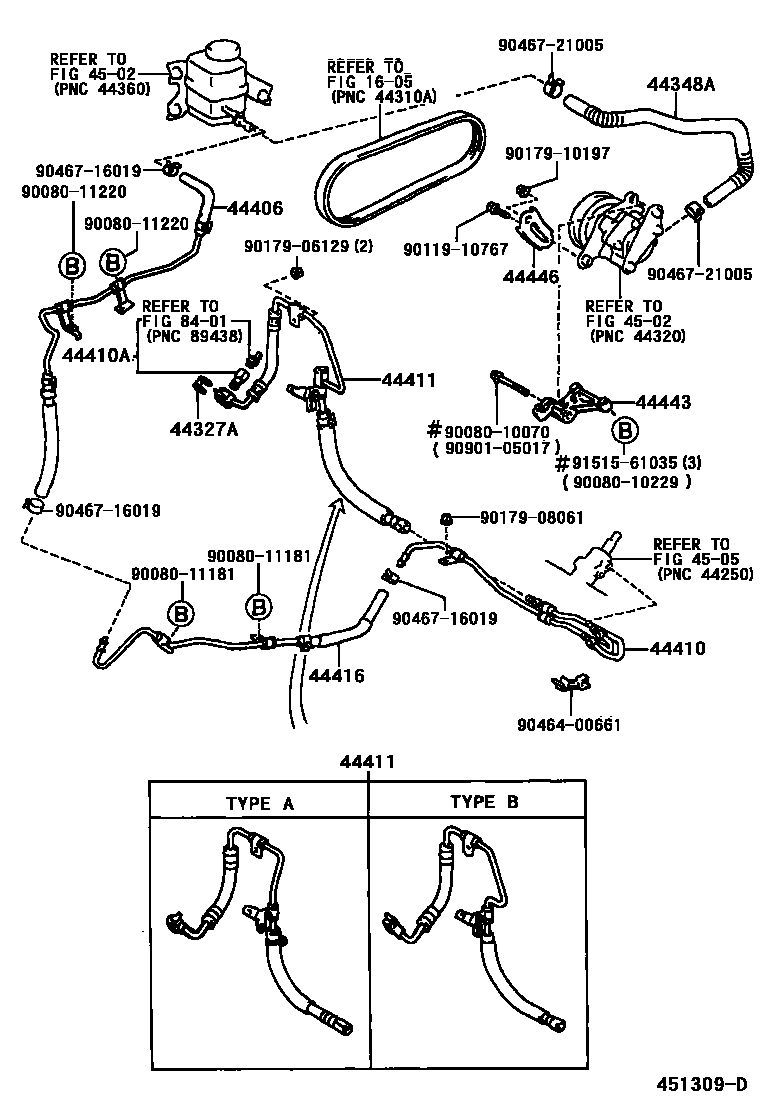

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV20,MCV20,SXV20199806-200212

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06150iMCV20199806-200212

main44348-06160iSXV20199806-200107

main44348-06190iACV20200107-200212

44406TUBE SUB-ASSY, RETURN

main44406-06050iACV20,MCV20,SXV20199806-200212

44410TUBE ASSY, PRESSURE FEED

main44410-06080iMCV20199806-200212

main44410-06090iSXV20199806-200107

main44410-06160iACV20200107-200212

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-08010iMCV20200207-200212

main44338-33090iMCV20,SXV20199806-200207

44411HOSE, PRESSURE FEED

main44411-06040iMCV20199806-200212

TYPE A:REFER TO ILLUSTRATION

main44411-07030iMCV20199806-200212

TYPE B:REFER TO ILLUSTRATION

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06050iMCV20199806-200212

main44416-06120iACV20200107-200212

44443BRACKET, PUMP

main44443-33020iSXV20199806-200107

main44443-33041iMCV20199806-200212

44446STRUT, ADJUSTING

main44446-AC010iMCV20199806-200212

4502

4505

8401

9008010070

main90080-10070

9008010229

main90080-10229

9008011181

main90080-11181

9008011220

main90080-11220

9011910767

main90119-10767

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9046400661

main90464-00661

9046716019

main90467-16019

9046721005

main90467-21005

9090105017

main90901-05017

9151561035

main91515-61035

26 parts on this diagram · 3 diagrams in section
