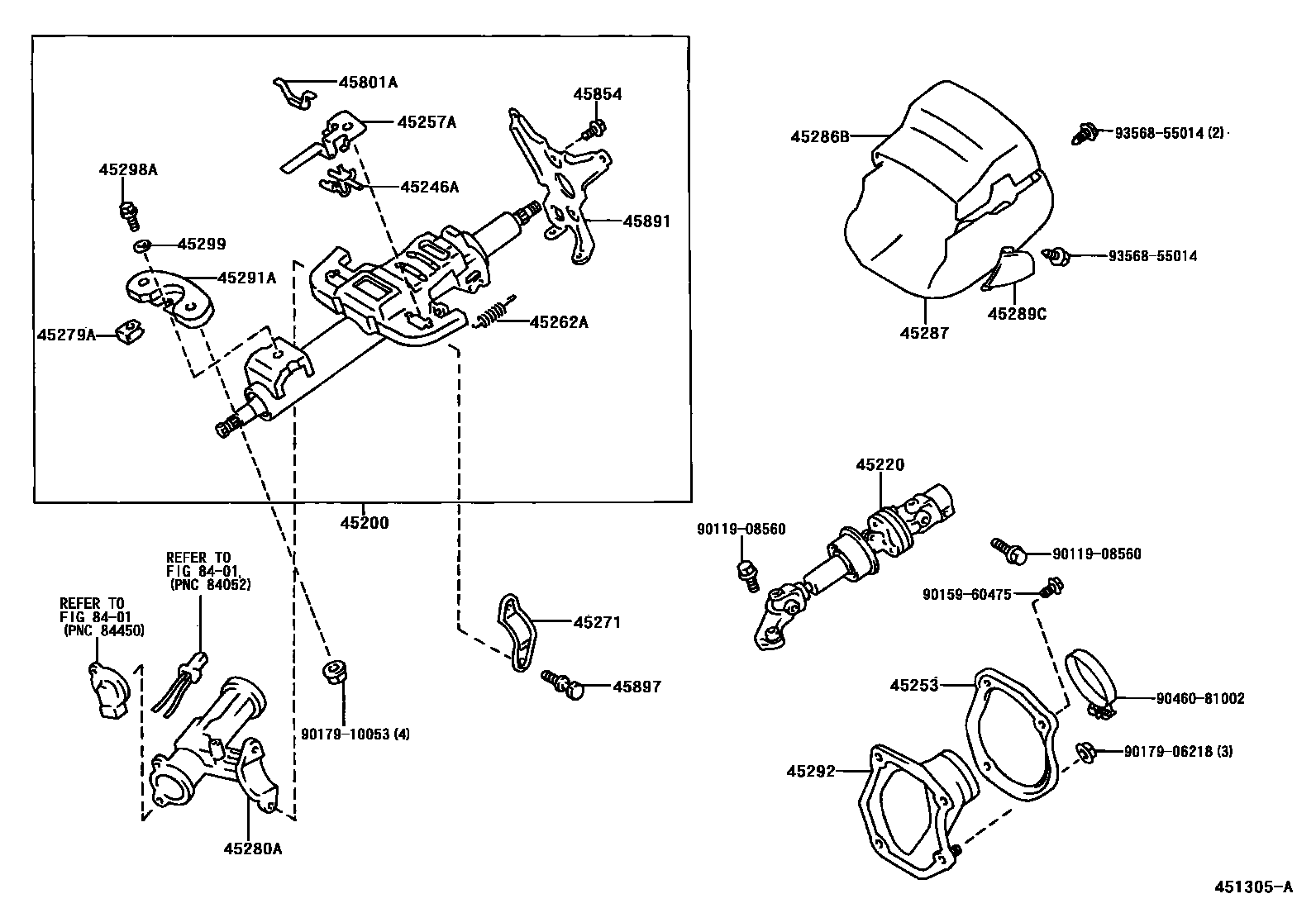

STEERING COLUMN & SHAFT
45200POST ASSY, STEERING
45220SHAFT ASSY, STEERING INTERMEDIATE
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45262ASPRING, TILT LEVER RETURN
45271CLAMP, STEERING COLUMN, UPPER
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
45289CCOVER, STEERING COLUMN, LWR NO.2
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
45291ASUPPORT, STEERING COLUMN TUBE
45292SEAL, MAIN SHAFT LOWER DUST
45298ABOLT, STEERING COLUMN LOWER TUBE
45299WASHER, STEERING COLUMN LOWER TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45854BOLT, TURN SIGNAL BRACKET
45891BRACKET, TURN SIGNAL
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9015960475
main90159-60475
9017906218
main90179-06218
9017910053
main90179-10053
9046081002
main90460-81002
9356855014
main93568-55014
27 parts on this diagram · 1 diagram in section
