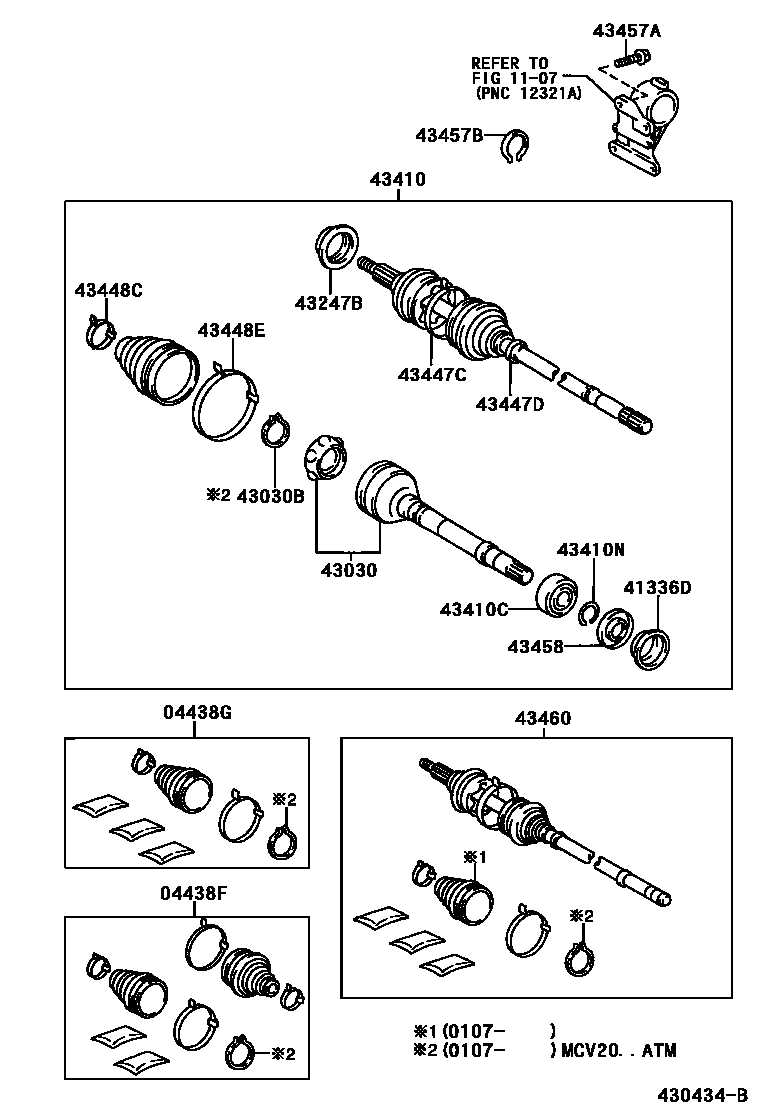

FRONT DRIVE SHAFT
1107
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
W(ABS)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=86.4
ID=90.9
ID=95.6
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=33.7
ID=27.3
ID=29.3
ID=28.3
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43458COVER, FRONT DRIVE SHAFT DUST
19 parts on this diagram · 6 diagrams in section
