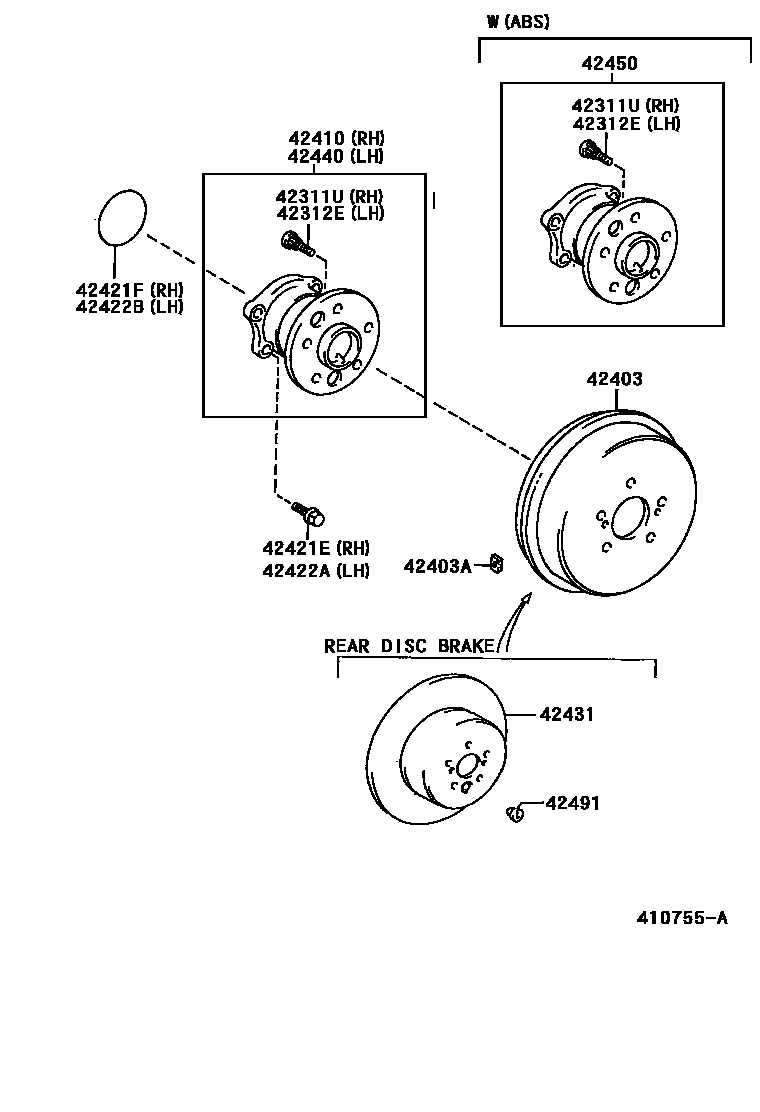

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iACV20,MCV20,SXV20199806-200212

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iACV20,MCV20,SXV20199806-200212

42403DRUM SUB-ASSY, REAR BRAKE

main42431-06010iSXV20..CP199806-200107

main42431-06040iACV20..CP200107-200212

sub42431-33110

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90080-93004iACV20,SXV20..CP199806-200212

10G

main90080-93005iACV20,SXV20..CP199806-200212

20G

main90080-93006iACV20,SXV20..CP199806-200212

30G

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-06020iSXV20..USA199810-199908

sub42410-07010

main42410-07010iACV20,SXV20..USA199908-200212

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iACV20,MCV20,SXV20199806-200212

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iACV20,MCV20,SXV20199806-200108

sub90301-63006

main90301-63006iACV20,MCV20200108-200212

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iACV20,MCV20,SXV20199806-200212

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iACV20,MCV20,SXV20199806-200108

sub90301-63006

main90301-63006iACV20,MCV20200108-200212

42431DISC, REAR

main42431-06020iMCV20199806-200212

main42431-33090iMCV20;SXV20..CVT199908-200008

sub42431-33010

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-06020iSXV20..USA199810-199908

sub42410-07010

main42410-07010iACV20,SXV20..USA199908-200212

42450HUB & BEARING ASSY, REAR AXLE

main42450-06010iMCV20,SXV20199806-199908

sub42450-07010

main42450-07010iACV20,MCV20199908-200212

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010iACV20,SXV20..CP199806-200212

main47491-22020iMCV20;ACV20,SXV20..CVT199806-200212

13 parts on this diagram · 1 diagram in section
