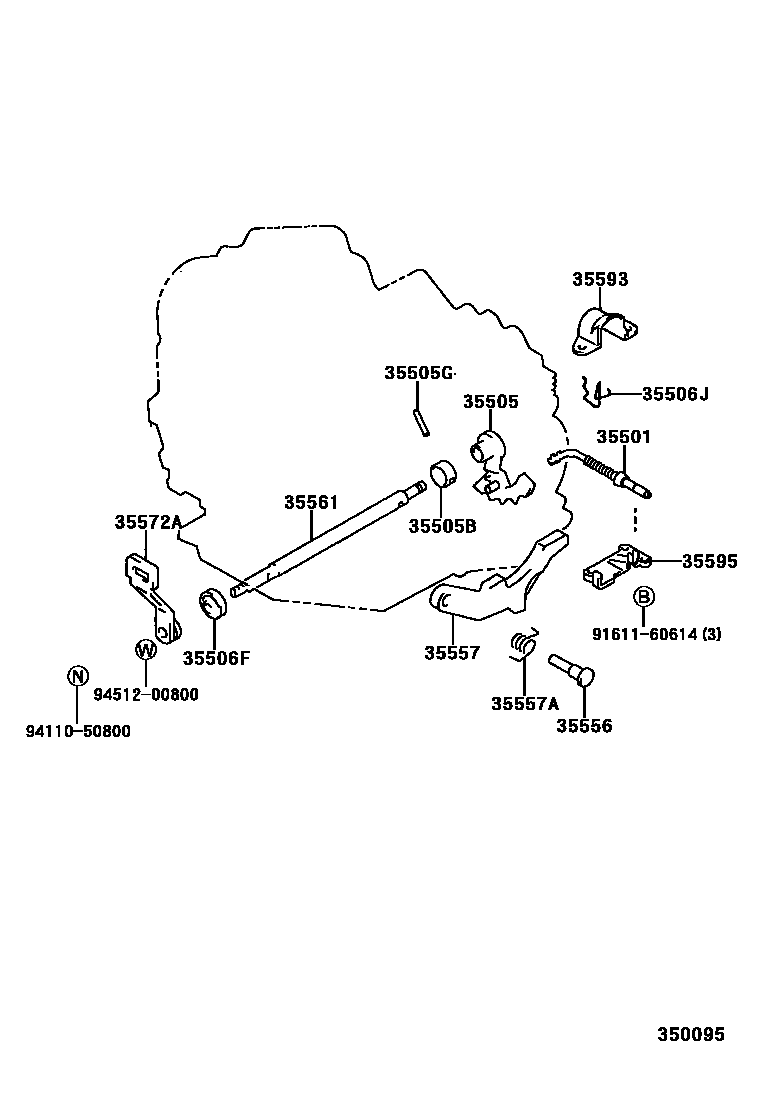

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A541E 0002 1A140E 0003 1U241E 0004 1A541E 0005 1A140E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV20..ATM200107-200212

main35501-32030iSXV20..ATM199806-200107

main35501-33010iMCV20..ATM199806-200212

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV20..ATM200107-200212

main35505-32040iMCV20,SXV20..ATM199806-200212

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV20,MCV20,SXV20..ATM199806-200212

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV20,MCV20,SXV20..ATM199806-200212

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV20,MCV20,SXV20..ATM199806-200212

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV20,MCV20,SXV20..ATM199806-200212

35556SHAFT, PARKING LOCK PAWL

main35556-28020iACV20..ATM200107-200212

main35556-32010iSXV20..ATM199806-200107

main35556-32020iMCV20..ATM199806-200212

35557PAWL, PARKING LOCK

main35557-32020iSXV20..ATM199806-200107

main35557-33010iMCV20..ATM199806-200212

main35590-32010iACV20..ATM200107-200212

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACV20..ATM200107-200212

main90508-26047iSXV20..ATM199806-200107

main90949-03043iMCV20..ATM199806-200212

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV20..ATM200107-200212

main35561-32010iSXV20..ATM199806-200107

main35561-33010iMCV20..ATM199806-200212

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33010iMCV20,SXV20..ATM199806-200212

main35572-48010iACV20..ATM200107-200212

35593SLEEVE, CAM GUIDE

main35593-33010iMCV20..ATM199806-200212

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV20..ATM200107-200212

main35595-32010iSXV20..ATM199806-200107

main35595-33010iMCV20..ATM199806-200212

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 5 diagrams in section
