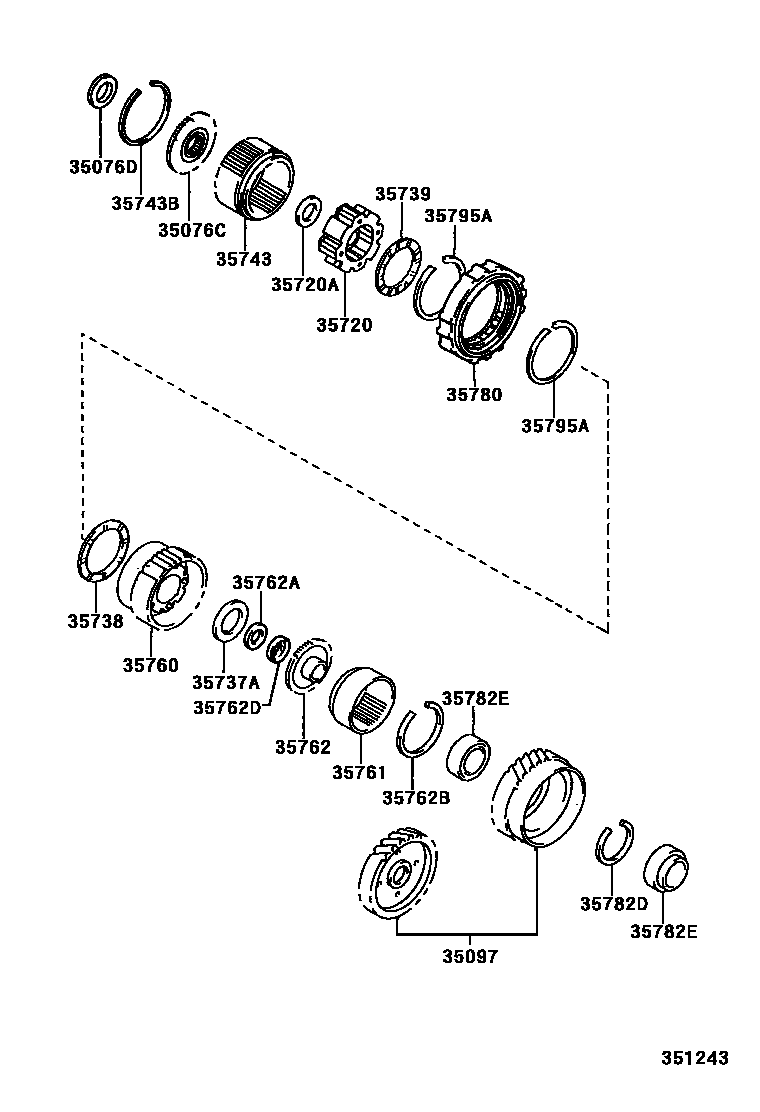

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)
35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
35761GEAR, REAR PLANETARY RING
35762FLANGE, REAR PLANETARY RING GEAR
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35762DRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35780CLUTCH ASSY, 1 WAY NO.2
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
35795RACE, 1 WAY CLUTCH OUTER
35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
21 parts on this diagram · 3 diagrams in section
