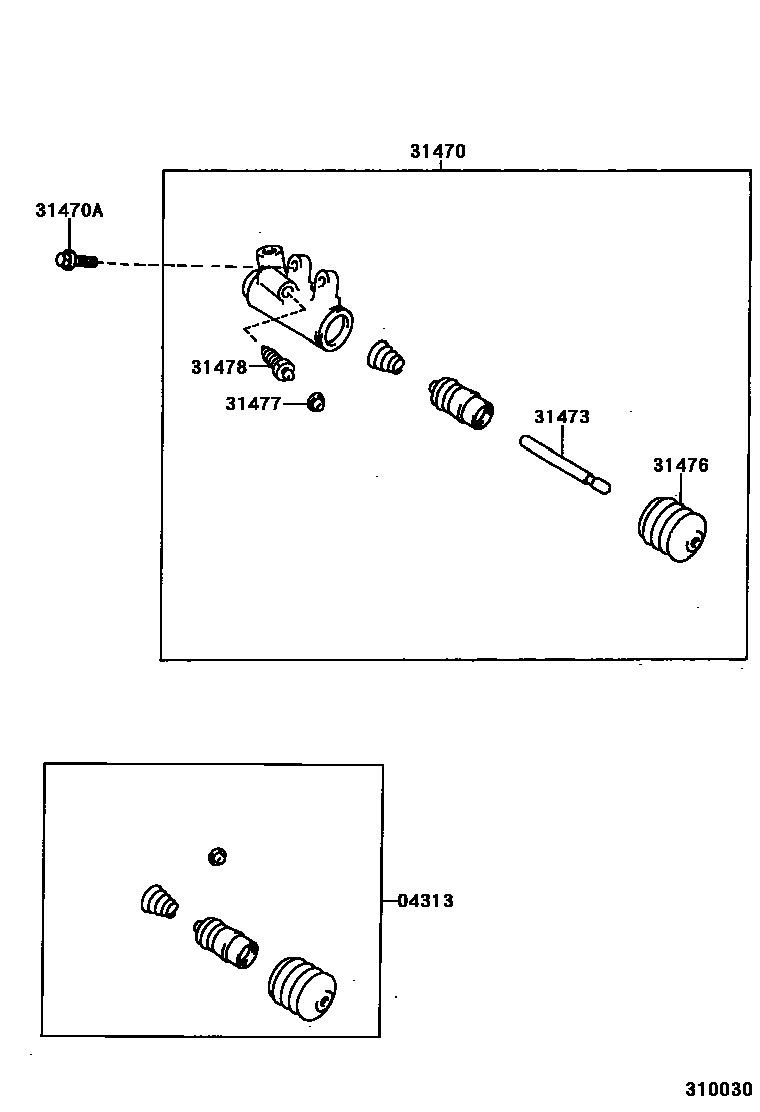

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iSXV20..MTM199806-200212

main04313-17020iMCV20..MTM199806-199904

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20210iMCV20..MTM199806-199904

main31470-32032iSXV20..MTM199806-200207

main31470-42030iACV20..MTM200107-200212

sub31470-42031

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iACV20,MCV20..MTM199806-200212

*8-1.25PX22-17.1

main91611-60825iSXV20..MTM199806-200107

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iMCV20,SXV20..MTM199806-200212

main31473-32010iACV20..MTM200107-200209

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACV20..MTM199806-200212

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACV20,MCV20,SXV20..MTM199806-200212

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACV20,MCV20,SXV20..MTM199806-200212

7 parts on this diagram · 2 diagrams in section
